CAME FROG series Installation Manual

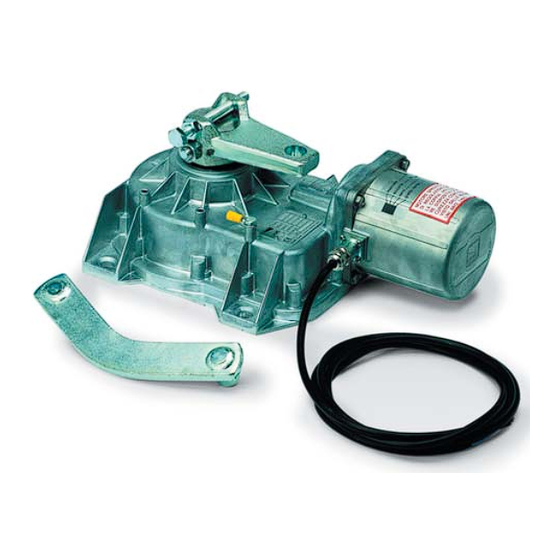

In-ground operator for swing gates
Hide thumbs
Also See for FROG series:
- Installation manual (49 pages) ,
- Installation instructions manual (32 pages) ,
- Manual (16 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CAME FROG series
Summary of Contents for CAME FROG series
- Page 1 IN-GROUND OPERATOR FOR SWING GATES FROG SERIES INSTALLATION MANUAL FROG-A 230V...
-
Page 2: Legend Of Symbols
For intensive use and condominiums: max weight of the gate 400kg with max length of 3.5m 3 Reference Standards For its quality processes management CAME cancelli automatici is ISO 9001:2000 certified, and for its environmental mana- gement it is ISO 14001 certified. CAME engineers and manufactures all of its products in Italy. -
Page 3: Installation
4.3 Dimensions 5 Installation Installation must be carried out by expert qualified personnel and in full compliance with current regulations. 5.1 Preliminary checks Before installing, do the following: • Make sure you have a suitable omnipolar cut-off device with contacts more than 3 mm apart, and independent (sectioned off) power supply;... -
Page 4: Standard Installation
5.4 Standard installation 1) FROG unit 2) Control panel 3) Safety photocells 4) Radio receiver 5) Key-switch selector 6) Antenna Command push-buthon panel 8) Flashing light 9) Photocell column 10) Shunt box 4x1,5 11) Transmitter RG58 2x1,5 3x1,5 230V 4x1,5 5.5 Assembly diagram Fig.2 5.6 Installing the unit... -
Page 5: Connecting To The Control Panel
- Screw the M10 x 100 (A) and the M10 (B) bolt onto the gearmotor arm as shown in fi g. 4-1 (RIGHT HAND installation) and fi g. 4-2 N(LEFT HA D installation); - Affi x the gearmotor to the foundation box using the threaded pins and securing it using the provided bolts and washers; - insert the (C ) transmission lever between the motor arm and the box lever and electronically shut the gate against the closing end stop. -
Page 6: Safety Instructions
7 Safety instructions Important safety instructions This product must only be employed for its originally intended use. Any other use is wrong and potentially dangerous. The manufacturer cannot be held liable for any damages resulting from wrongful, erroneous or negligent uses. Avoid working close to the hinges or other moving mechanical parts. -
Page 7: Periodic Maintenance
8 Maintenance 8.1 Periodic maintenance Periodic maintenance to be carried out by the end-user is as follows: wipe clean the glass surface of the photocells; check that the safety devices work properly; remove any obstructions. We suggest checking the state of lubrication and tightness of the anchoring screws on the operator. To check the efficiency of the safety devices, move an object in front of the photocells when gate is closing. -
Page 8: Extraordinary Maintenance
Periodic maintenance log (for end-user) (every 6 moths) Date Notes Segnature 8.3 Extra-ordinary maintenance The following table serves to note down any extraordinary maintenance, repairs or improvements performed by spe- cialised firms. N.B.: Any extraordinary maintenance must be performed by specialised technicians. Extra-ordinary maintenance log Installer’s stamp Operator name... -
Page 9: Demolition And Disposal
UNI EN ISO 14001 standard to ensure environmental protection. Please continue our efforts to protect the environment—which CAME considers one of the cardinal elements in the develop- mentof its operational and market strategies—simply by observing brief recommendations as regards disposal: DISPOSAL OF PACKAGING The packaging components (cardboard, plastic, etc.) are all classifiable as solid urban waste products and may be disposed of... - Page 10 CAME UNITED KINGDOM LTD UNIT 3, ORCHARD BUSINESS PARK TOWN STREET, SANDIACRE NOTTINGHAM - NG10 5BP - U.K. Tel 0044 115 9210430 Fax 0044 115 9210431...
