- Page 1 Robustel R1510 Hardware Manual R1510 Hardware Manual Version: 1.0.3 Date: May 23, 2024 RT048_HM_R1510 1/10...
-
Page 2: Metal Parts
Robustel R1510 Hardware Manual Regulatory and Type Approval Information Table 1: Toxic or Hazardous Substances or Elements with Defined Concentration Limits Name of Hazardous Substances the Part (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) (DEHP) (BBP) (DBP) (DIBP) Metal parts Circuit... - Page 3 Robustel R1510 Hardware Manual Model number: R1510-4L PN:B048709 RF technologies 2G, 3G, 4G, Wi-Fi 2G: GSM900/GSM1800 Cellular Frequency* 3G: WCDMA: B1/B5/B8 4G: LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE TDD: B38/B40/B41 WiFi Frequency 2412MHz ~ 2472MHz Max RF power 33 dBm±2dB@GSM, 24 dBm+1/-3dB@WCDMA, 23 dBm±2dB@LTE, 18 dBm@Wi-Fi May vary on difference models.
- Page 4 Cet émetteur ne doit pas être installé au même endroit ni utilisé avec une autre antenne ou un autre émetteur. Simplified EU & UK Declaration of Conformity We, Guangzhou Robustel Co., Ltd. are located at 501, Building #2, 63 Yongan Road, Huangpu District, Guangzhou, China, declare that this radio equipment complies with EU Radio Equipment Directive (RED) 2014/53/EU, Low Voltage Directive (LVD) 2014/35/EU, EMC Directive 2014/30/EU, UK Radio Equipment Regulations 2017, EMC Regulations 2016, Electrical Equipment (Safety) Regulations 2016.
- Page 5 Robustel R1510 Hardware Manual The symbol indicates that the product meets the requirements of the relevant UK legislation. ⚠WARNING: This product can expose you to chemicals including Lead, known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

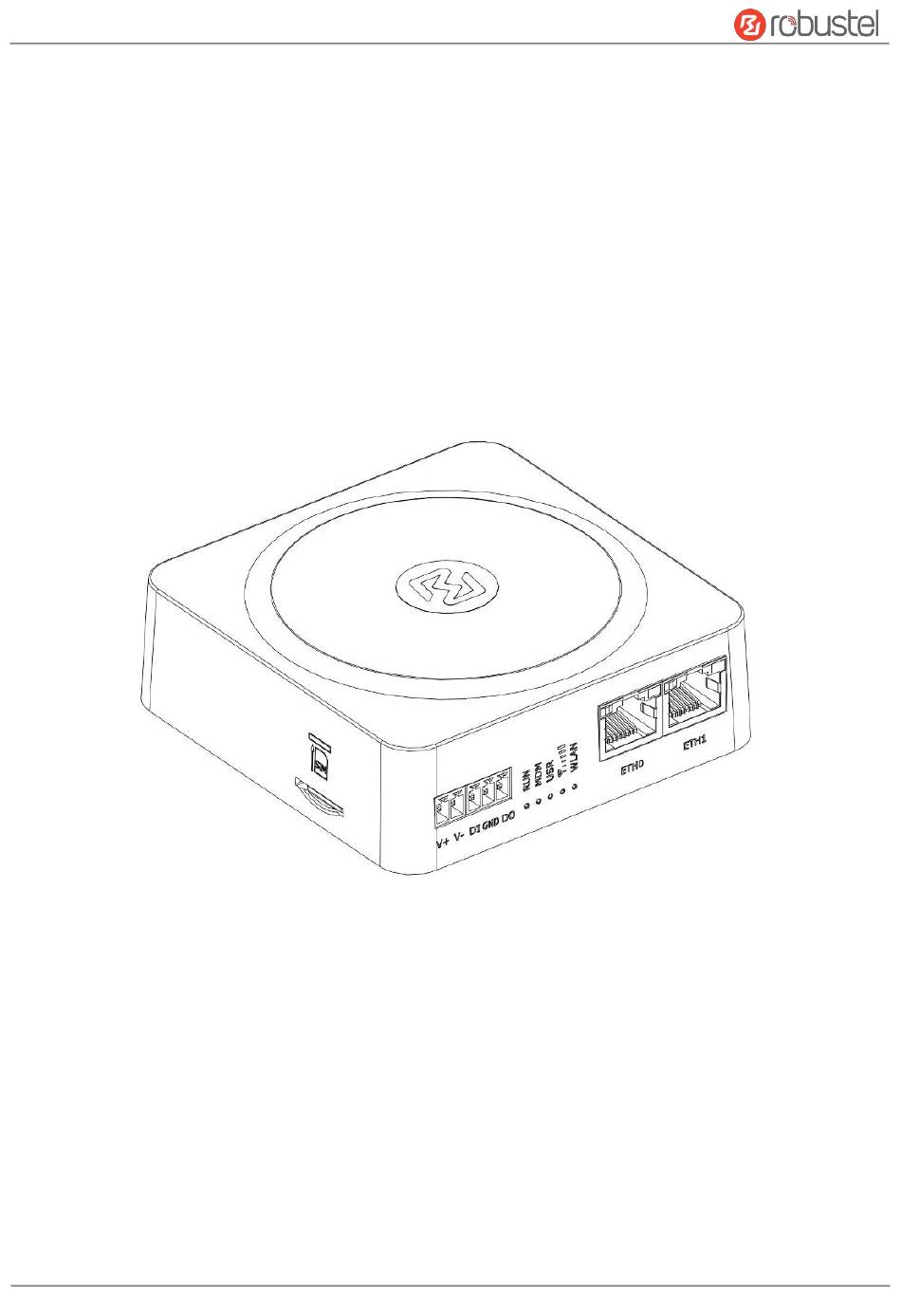

- Page 6 Robustel R1510 Hardware Manual Overview Robustel R1510 router is a Dual Ethernet port (LAN + WAN) 3G/4G router with advanced software functions at a very competitive price point. Package Checklist Before commencing installation ensure your package has the following components:...
-
Page 7: Interface Descriptions
Robustel R1510 Hardware Manual Interface Descriptions Power Supply. 2PIN 3.5mm pitch terminal block. Power DI/DO Description Power input Positive, 9-36VDC Power input Negative Digital input (Maximum absolute voltage: 30V. Maximum absolute current: 20mA) Ground Digital output (Maximum absolute voltage: 30V. Maximum absolute current: 20mA) DI&DO Internal Diagram... -
Page 8: Reset Button
Note: The more details please refer to RT123_SM_RobustOS Software Manual, 2.3 Factory Reset. Ethernet Ports. There are two Ethernet ports on R1510, including ETH0 (WAN/LAN), and ETH1. Each has two LED indicators. The green one is a link indicator but the yellow one doesn’t mean anything. For details about status, see the table below. -
Page 9: Mounting Kit Installation
Robustel R1510 Hardware Manual Mounting Kit installation. -Wall mounting -DIN rail mounting Connect the Router to a Computer. Power Supply installation. There are two cables associated with the power adapter. Following to the color of the head, connect the cable marked red to the positive pole through a terminal block, and connect the yellow one to the negative in the same way. - Page 10 Robustel R1510 Hardware Manual Login to the Device Connect the router’s Ethernet port to a PC with a After logging in, the home page of the web standard Ethernet cable. interface is displayed, then you can view system information and perform configuration on the Before logging in, manually configure the PC with device.
