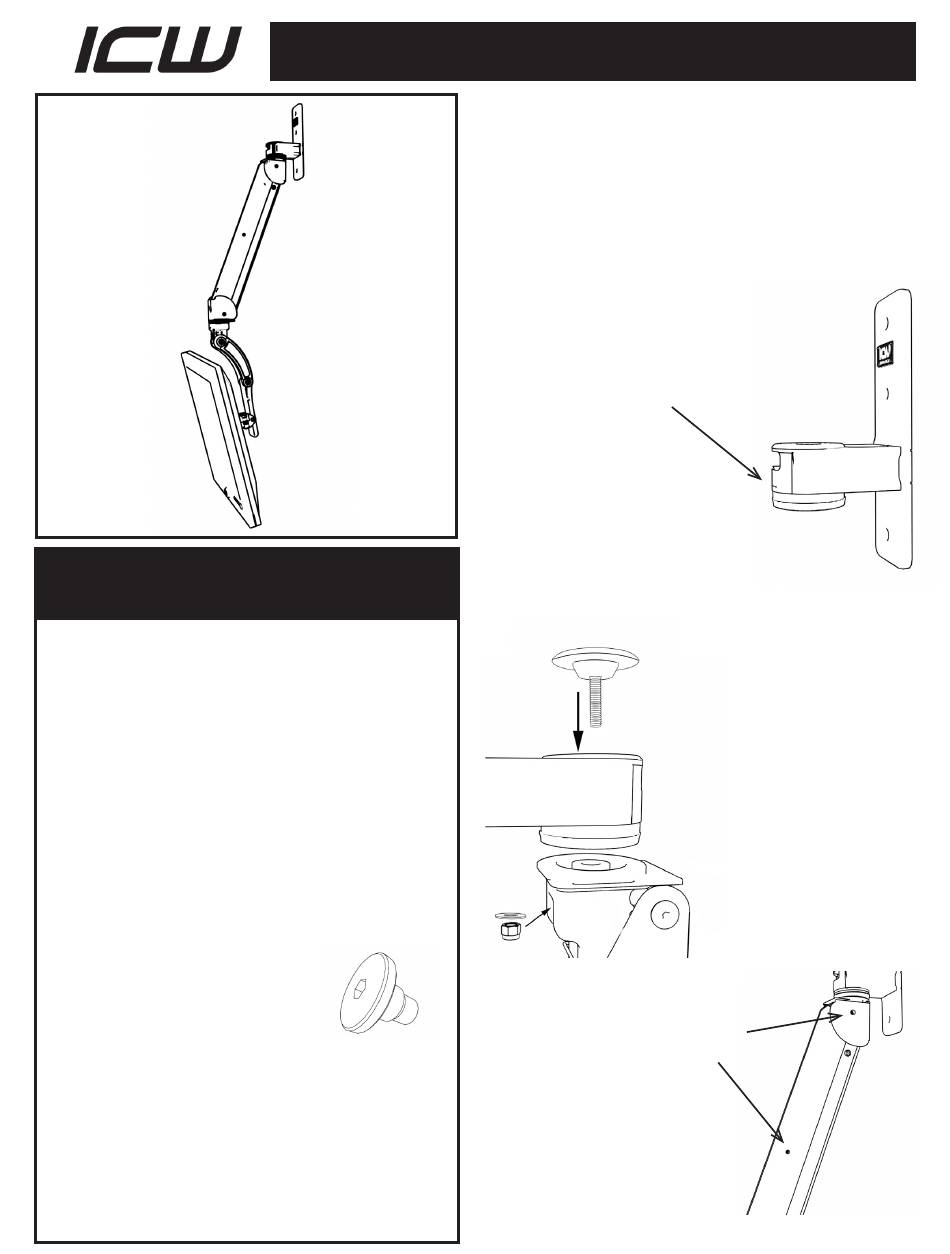

ICW Elite Single Arm Quick Start Manual

DANGER!
The Elite arm contains high
pressure gas springs. The fol-
lowing cautions MUST be ob-
served to avoid serious injury.
1) Do not attempt to adjust your Elite arm until
everything you intend to mount to the arm is
mounted.
2) Arm must be completely horizontal (extend-
ed) before adjusting the arm's tension. Failure to
do so will damage the arm and void the warranty.
3) Never loosen or remove any of the shoulder
bolts. Doing so will cause the
arm to immediately come apart
with tremendous force, and
could cause serious injury.
4) If equipment requiring AC
power is mounted to this unit,
have a certified electrician inspect the installa-
tion.
5) Failure to install this unit according to these
instructions will void all ICW warranties. If
installed incorrectly, ICW is not liable for any
damage or injury caused by the unit.
Elite Single Arm Wall Mount
1
box. Mark the top hole, drill 11/64 pilot hole and in-
sert an ICW provided #14 screw and tighten slightly.
Using a level, mark the two lower holes and drill
pilot holes, insert the last two #14 screws and, with
the mount level, tighten all screws securely.
The wall mount is shipped with
the bearings wrapped and it is
recommended that you leave the
wrapping on until later in the
installation process.
Note: ICW supplies #14 wood screws.
If installing onto metal studs you will
need to replace with proper metal stud
fasteners. All hardware used to secure
wall mount must have a proper counter-
sunk head.
3
Shoulder bolt
Locate a stud in the wall you intend to mount
your arm on and remove the wall mount from the
2
through the wall mount and
the arm from above. Place
the steel race over the bolt
inside the arm as shown
and secure firmly with the
nylock, using the provided
9/16 wrench.
Find the screws in the
end covers and the
long cover.
elite single arm wallmount.indd rev. 5/30/07 dw
Pass the 3/8 bolt with
the bearing assembly
