ICW Elite Quick Start Manual

ICWUSA.com, Inc.

DANGER!

1. Do not attempt to adjust your Elite arm until
everything you intend to mount to the arm is
mounted.
2. Arm must be completely horizontal (extended)
before adjusting the arm's tension. Failure to do
so will damage the arm and void the warranty.
3. Never loosen or remove any of the shoulder bolts. Doing so
will cause the arm to immediately come apart with tremendous
force, and could cause serious injury.
4. If equipment requiring AC power is mounted to this unit, have a
certifi ed electrician inspect the installation.
5. Failure to install this unit according to these instructions will void
all ICW warranties. If installed incorrectly, ICW is not liable for any
damage or injury caused by the unit.
6. Do not use power tools to adjust arm tension. MUST be adjusted
by hand.

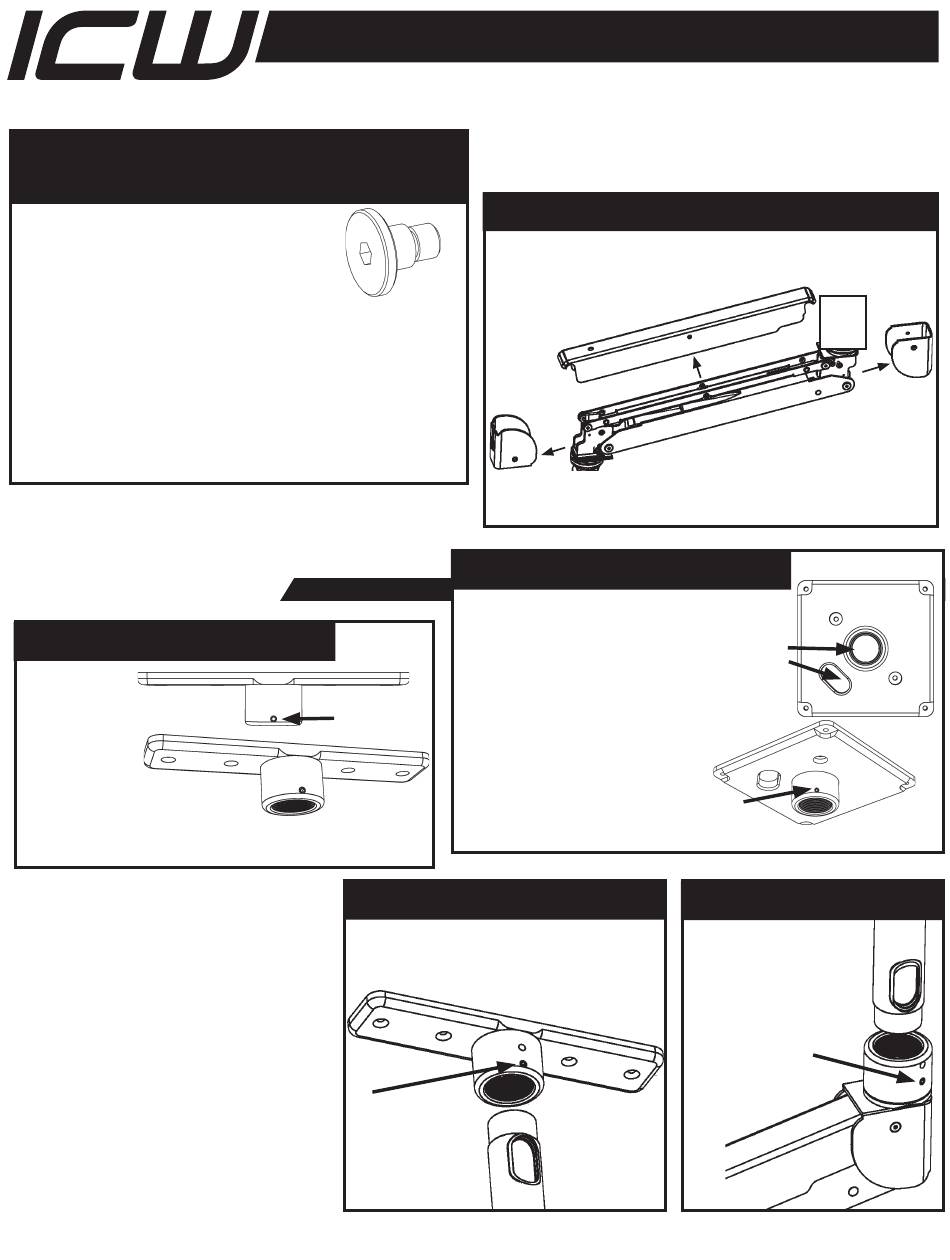

IF USING CEILING MOUNT

MOUNT INLINE CEILING PLATE

Firmly secure
ceiling mount to
solid ceiling joist
using four #14
wood screws
found in hardware bag,
being sure mount is level.
Be sure to loosen set screw
BEFORE attaching pipe.
page 1

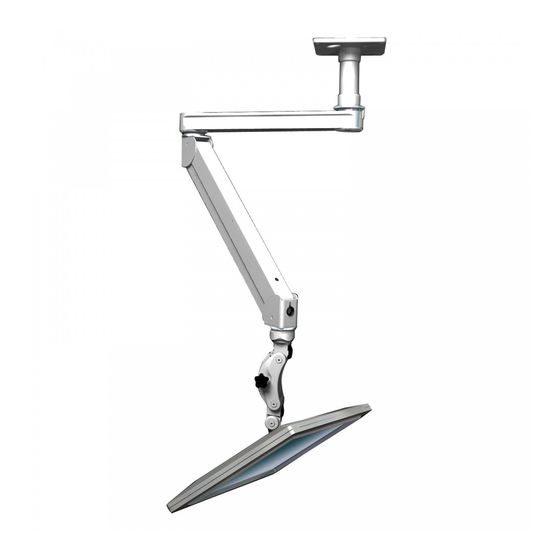

SINGLE ARM ELITE
T he Elite ar m contains high
p r e s s u r e g a s s p r i n g s . T h e
following cautions MUST be
observed to avoid serious injury.
Loosen the set
screw in the
ceiling mount!
ATTACH PIPE TO CEILING PLATE
Thread pipe into ceiling mount
and tighten set screw.
Tighten
set screw
once pipe is tightly
screwed in.
If you have any questions, please call 1-800-558-4435

REMOVE ELITE ARM COVERS

TOP COVER: Remove the long arm cover by
unscrewing the two 6-32 fl athead screws in the
center of the cover using a philips head
screwdriver.

MOUNT SQUARE CEILING PLATE

Using four 1/4 x 2" lag bolt
provided in hardware bag,
secure ceiling mount to a solid
wood surface or ceiling joist.
Use square pattern or inline
pattern, always being sure
to use all 4 bolts. Run cords
through center hole or the cord
management port. Be sure to
loosen set screw BEFORE
attaching ceiling pipe.
SINGLE ARM ELITE INSTRUCTIONS - rev 2/17/2011 mf
END COVERS: Remove the
end covers by unscrewing the two
10-24 fl athead screws using the 1/8 " hex key.
Cord
management
holes
Loosen
set screw
in ceiling mount!
ATTACH PIPE TO ELITE ARM
Thread Elite
onto extension
pipe and tighten
set screw.
Tighten set screw
once Elite is tightly
screwed in.
MOUNT
