ICW TITAN Installation Manual

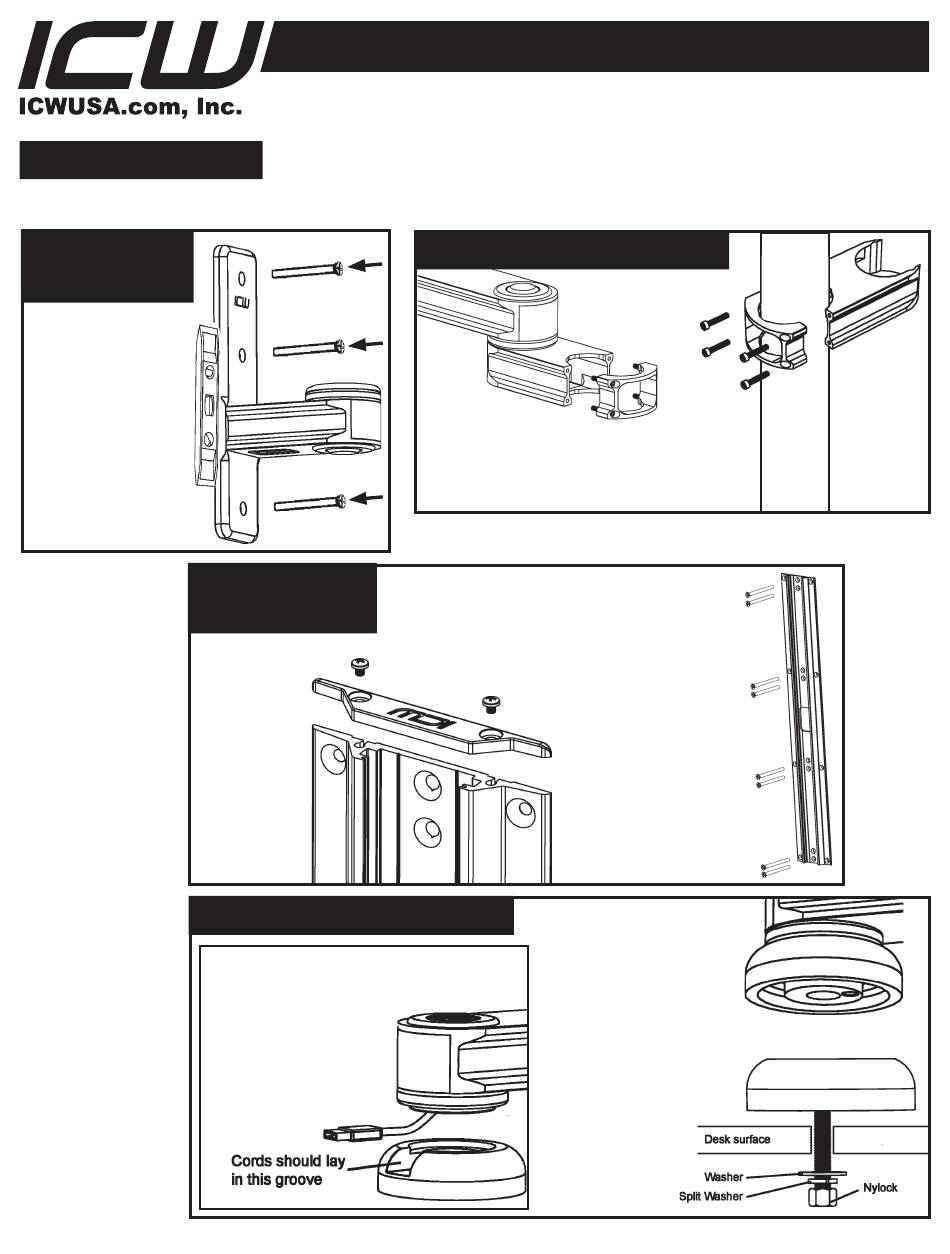

MOUNT ARM
IF USING WALL MOUNT
ATTACH WALL
PLATE TO WALL
Locate stud and mark top
hole, drill 11/64 pilot hole
and insert #14 screw and
tighten slightly. Using a
level, mark lower hole
and drill pilot hole, insert
#14 screw and, with
unit level, tighten both
screws. ICW supplies
#14 wood screws. If
installing onto metal
studs, you will need
to replace with proper
metal stud fasteners.
IF USING
WALL TRACK
IF USING
DESK MOUNT
Page 1 of 3
TITAN ARM INSTALLATION
MOUNT WALL
TRACK TO WALL
Using a phillips
drive, remove
the plastic cap
on one end of
the track. Save
this cap to put
back on when
everything is
fi nished.
ATTACH DESKMOUNT TO DESK
Please follow cable
instructions before securing desk mount.
Remember to detach
desk mount and feed
cords down through
the groove in the
desk mount - passing
through the bearing.
Then Re-attach desk
mount.
If you have any questions, please call 1-800-558-4435
IF USING POLE MOUNT
ATTACH POLEMOUNT TO POLE
Detach the pole mount from arm using the provided
5mm hex key. Separate the two sections of the pole
mount using the provided 5/32 hex key. Place around
the pole you are mounting to and fi rmly reassemble
the pole mount.
Locate the wall stud and
mark the top hole of the Wall
Track, drill 11/64 pilot hole
and insert #14 screw and
tighten slightly. Use a level,
mark the 7 lower holes, drill
pilot holes and then insert the
#14 screws. Use all 8 center
screw holes.
NOTE: #14 Wood screws are
supplied with unit. If installing
into metal studs, you will
need to replace these with
proper metal stud fasteners
Drill a 3/8 hole through the
horizontal surface you intend to
mount to. Screw the 3/8 stud into
management
your desk mount as shown, the
stud is found in your hardware
bag.
Push the 3/8 stud on desk mount
through the hole in the desk and
slip the large mounting washer
over the stud from underneath
and secure in place with the 3/8
nylock nut.
T2 ARM INSTALLATION - rev 04/22/2014 pjm
