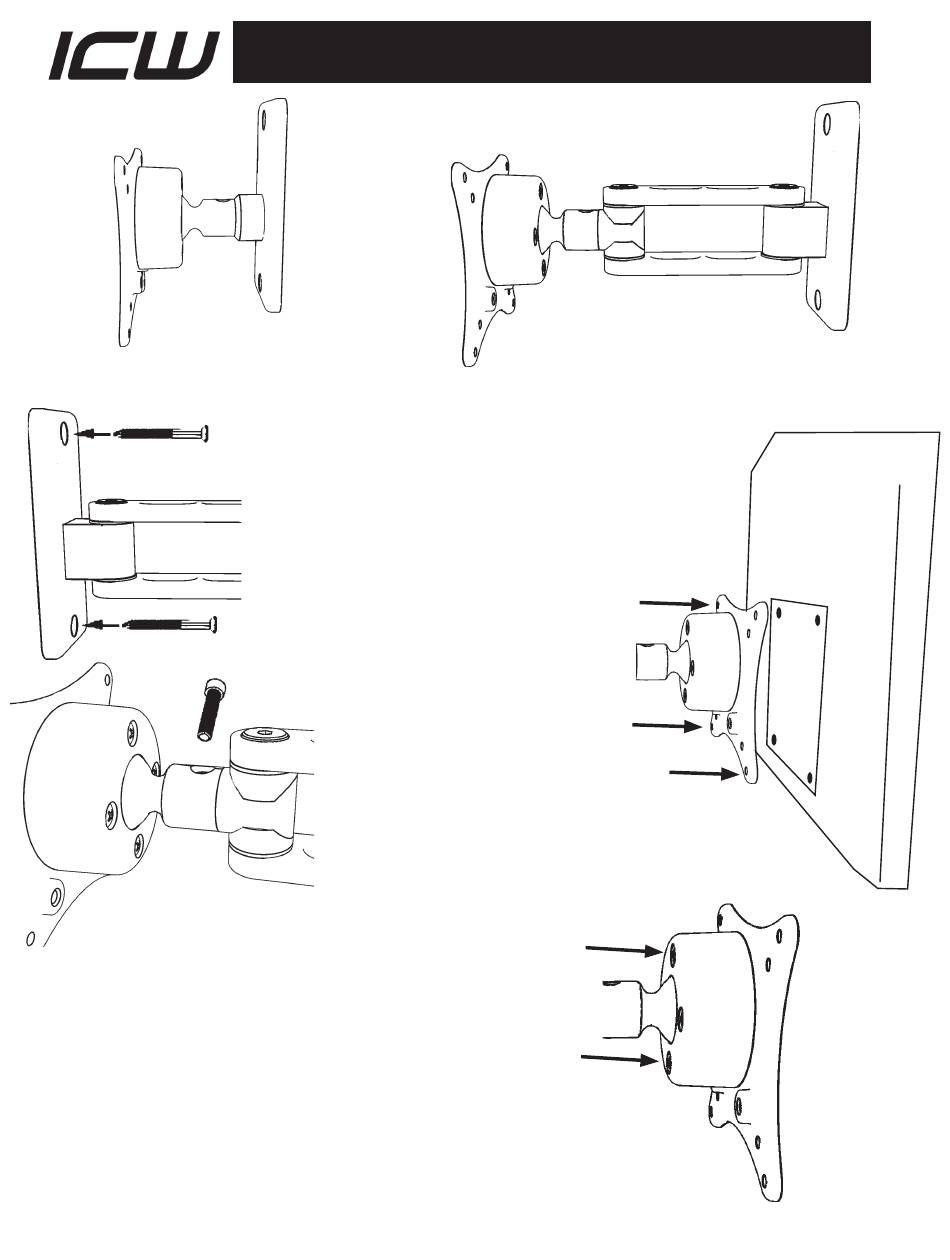

GX Mount Installation
GX170
Locate a stud in the wall you intend to mount your
arm on. Mark the top hole, drill 11/64 pilot hole and
insert a #14 screw (provided) and tighten slightly. Using
a level, mark the lower hole and drill a pilot hole, insert
a #14 screw and with the mount level, tighten all screws
securely.
Note: ICW supplies #14 wood screws. If installing onto
metal studs you will need to replace with proper metal
stud fasteners. All hardware used to secure wall mount
must have a proper countersunk head.
Use the provided 3/16"
wrench to attach the ball
joint to the mount.
Secure your monitor
to the VESA plate
using the four 4mm
screws provided.
Adjust the pivot tension
of the ball by gently
and evenly tightening
or loosening the four
screws on the back of
the ball VESA.

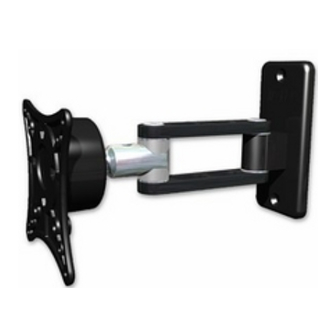

GX270
GX series installation rev. 12/22/11 mf
