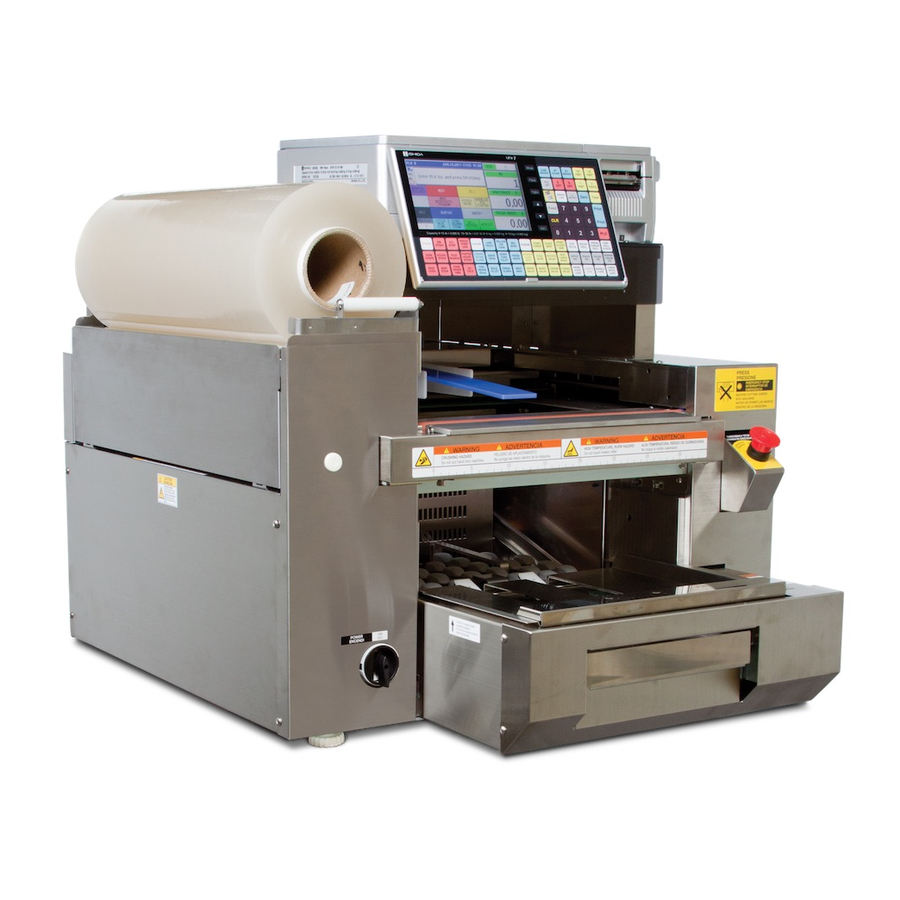

Ishida WM-Nano Tabletop Wrapper
Cleaning, Sanitizing and Inspecting Instruction
Use the following procedure to clean, sanitize and inspect the WM-Nano:
WARNING: Failure to heed may result in serious personal injury or death.
Always turn off and unplug machine before cleaning or servicing.
Never operate this machine without training and authorization from your supervisor.
Guards must be in place before plugging in and turning on machine.
Always keep your fingers, hands and clothing away from sharp or moving parts.
The sealing rollers operate at a high temperature. Touching them while hot may cause severe burns.
IMPORTANT: Failure to follow these instructions could result in injury, damage to the equipment, and/or void the warranty.
If cuts, scratches or other damage is visible, call for service as this will affect the print quality.
Supplies
• Clean warm water
• Isopropyl/rubbing alcohol or alcohol swabs/wipes
• Mineral oil
• Clean cotton towels
NOTE: A blue towel indicates the use of water or water-based cleaners. Towel should be damp without dripping.
A red towel indicates the use of isopropyl/rubbing alcohol.
• Optional: Mild degreaser or a non-chloride-based sanitizer
IMPORTANT: Do not use chloride-based cleaners.
Do not use any water-based cleaners on print heads or platen rollers.
Procedure

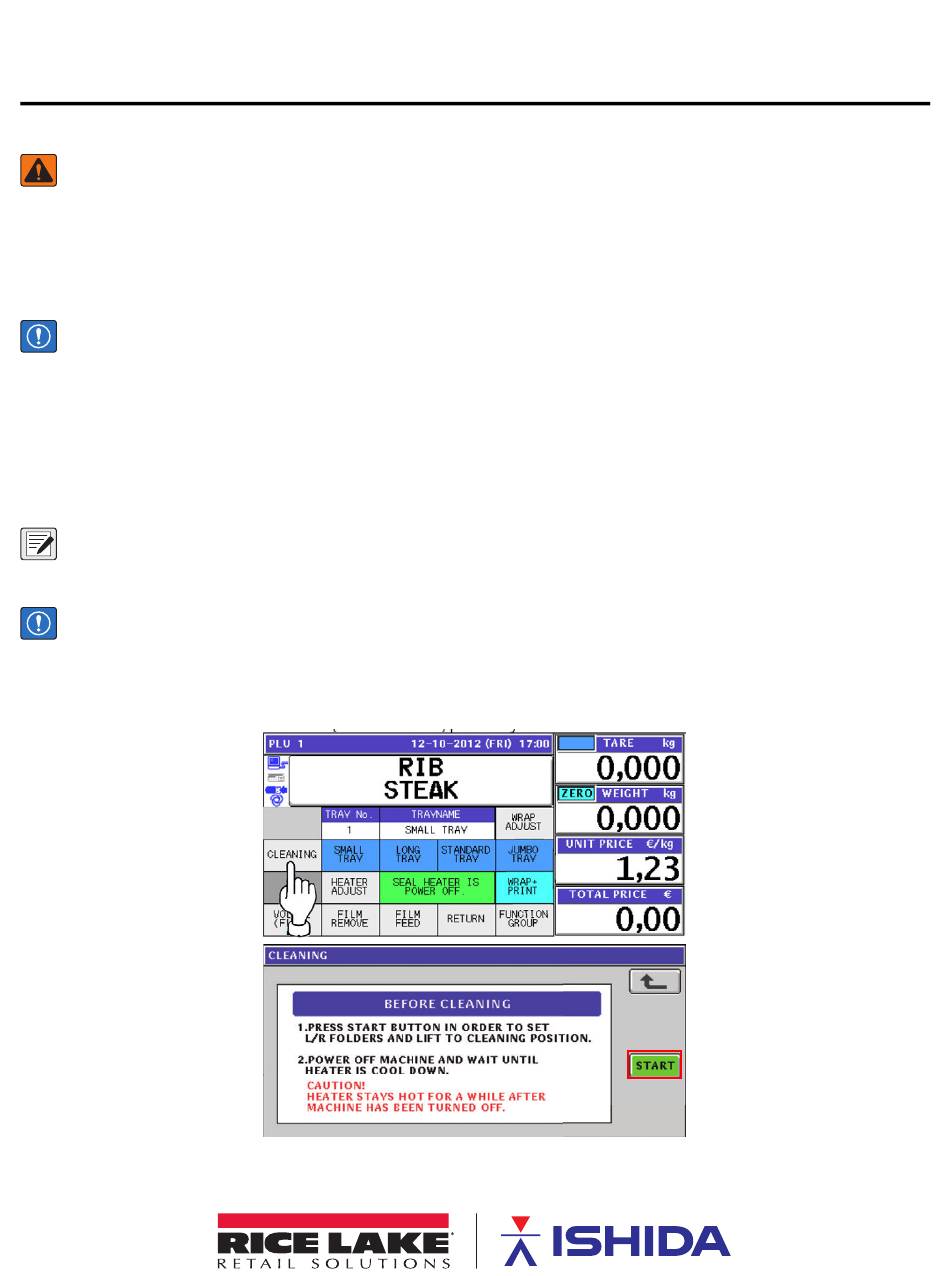

1. Enter Cleaning Mode from the main page, then press START.
October 25, 2022
Figure 1.
PN 156559 Rev B
