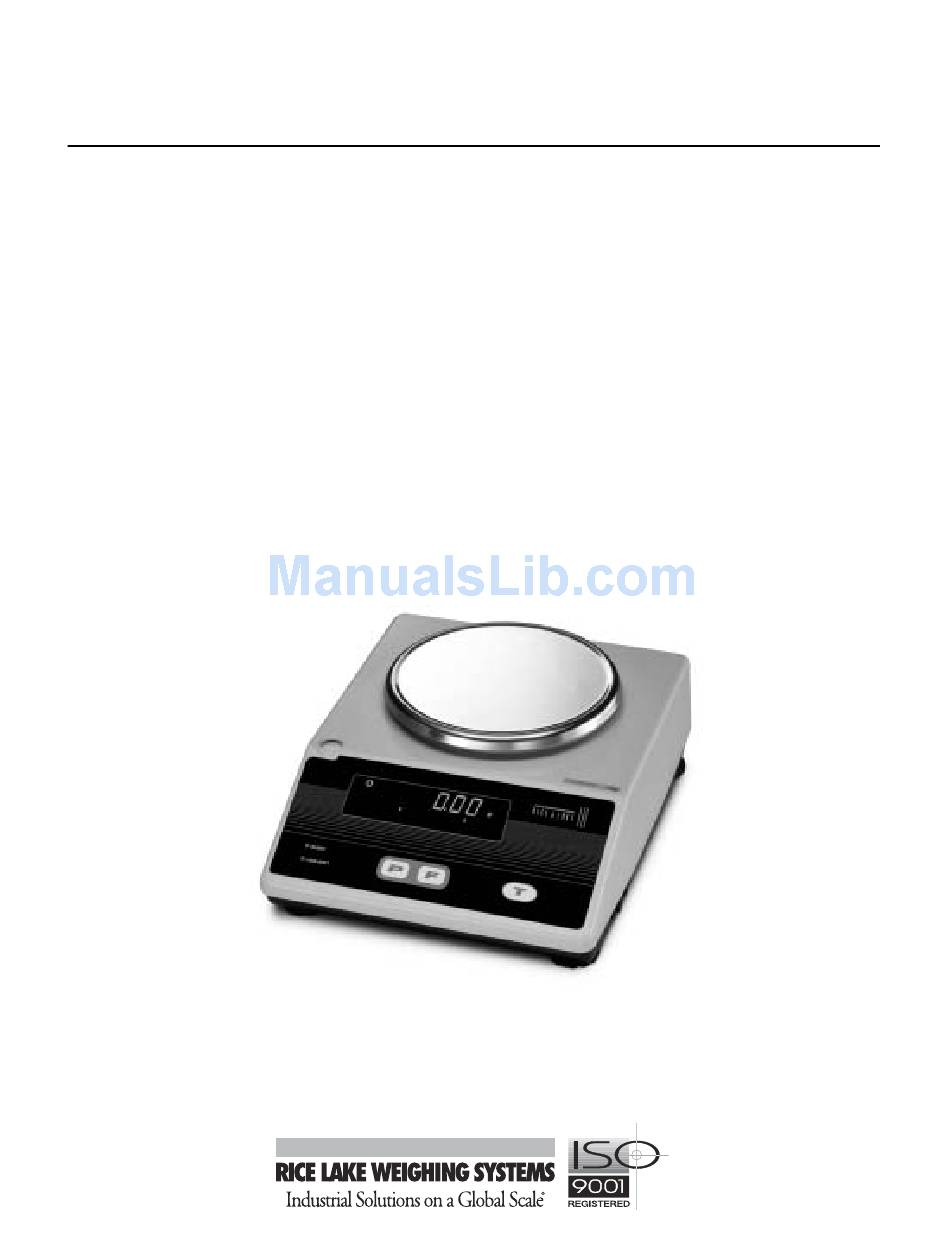

  • Page 1 IB Series Precision Balance Operation Manual 42193...

  • Page 2: Table Of Contents

    10.3 Model Capacity/Readability Tables ..........29 11.0 Troubleshooting .........................31 IB Series Limited Warranty ........................32 Copyright © 2001 Rice Lake Weighing Systems. All rights reserved. Printed in the United States of America. Specifications subject to change without notice. Version 2.1, November 2001...

  • Page 3: About This Manual

    • Available in 115 VAC adapter. 230 VAC adapter (optional) Unpacking and Inspection Each component of the IB Series system is packed in a Operating Modes specially designed carton. Remove each component The IB Series has four weighing modes: from its carton, separate the component from its...

  • Page 4: Unlocking

    Screw Figure 1-1. Unlocking Scale Repacking If the IB Series counting scale must be returned for modification or repair, be sure that it is properly packed with the original packing material and original carton assembly if possible. Any damage caused by improper packaging will not be covered by the warranty.

  • Page 5: Leveling The Scale

    Ensure that the scale sits solidly and does not wobble due to uneven adjustment. LEVEL INDICATOR BLUE ADJUSTERS CIRCLE BUBBLE Figure 1-4. Bubble Adjustment Main Components The main parts of the IB Series balance are: Weighing Pan Output Connectors for Optional Equipment Adaptor Level Indicator Connector Display...

  • Page 6: Front Panel Keypad

    Front Panel Keypad Table 1-1 on page 4 shows the IB Series LED annunciators, keypad, and normal mode key functions. R I C E L A K E SLEEP LOW-BATT Figure 1-6. Front Panel Keypad The LCD annunciators shown on the IB Series front panel describe the indicator functions assigned in setup mode.

  • Page 7: 1.10 Start-Up Self Test

    A self test must be performed prior to using the scale. To perform a self test, do the following: 1. Connect the AC power adapter to the IB Series scale and insert into a 115V service outlet. 2. Press the ON/OFF key.

  • Page 8: Calibration

    Calibration This section describes procedures for calibrating the IB Series scale. Follow the steps in Table 2-1 to calibrate the IB Series scale. Step Action [Func] [CAL] Hold down the key until appear in sequence, then release the key. Hold down the key, then press the key, then release both keys.

  • Page 9: Measuring Weight

    Measuring Weight This section describes procedures for tare subtraction and weighing on the IB Series scale. Follow the steps below for tare subtracting and weighing on the IB Series scale. 1. Place a container on the weigh pan, press the key.

  • Page 10: Count Weighing

    Count Mode Setting Procedure 1. Hold down the key for about four seconds. Release Function Access when the display appears. [Func] FUNC 2. The first item of the function display appears: mode type. Mode Type 1.SET 1 IB Series Operation Manual...

  • Page 11: Self Counting System

    3. If the weighing mode display appears, press the Count Mode Weighing Mode key to enter the count mode. 1.SET 2 1.SET 1 4. To exit the function setting display and enter the Exit Mode Settings count mode press the key.
  • Page 12 SCS process, beginning at step one above. NOTE: Once the key has been pressed to memorize the average piece weight, repeated pressing of the key allows display of the current weight and count. IB Series Operation Manual...

  • Page 13: Calculation Factor Mode

    Calculation Factor Mode In calculation factor mode, the desired index is memorized, the index for the weight of the item placed on the scale is calculated and the calculated value is displayed. This allows conversion into various units. Method of Operation 1.
  • Page 14 6. When an item is placed on the scale, the index of its Measurement of Index weight is calculated and the calculated value displays. This display is equal to the index (1.23) 123.00 times the weight of the item (100 g). IB Series Operation Manual...

  • Page 15: Percentage Mode

    2500g 5000g 7500g Over 50% 0.01% Table 6-1. Break Points for the IB Series Scale. Example: IB 1000 Reference Weight: 487g In the IB 1000 column from the table above, 487g is more than 50g, but less than 500g. The display resolution will be in increments of 0.01%.

  • Page 16: Setting Numerical Value

    321 % the scale returns to calculation factor mode. Note: The percentage display will automatically set in the range of 1 to 0.001% as with memorization of an actual reference weight. IB Series Operation Manual...

  • Page 17: Functions

    Functions The following sections describe the functionality of the IB Series scale. Selecting Functions 1. Hold down the key for about four seconds. Function Access Release when the display appears. [Func] FUNC 2. The first item of the function display appears: mode Mode Type type.
  • Page 18 (See Table 7-1 5. RE. 1 5. RE. 5 on page 17). 4. After confirming the change, press the key. The function setting is complete and the display returns 5. RE. 1 to the operational mode. IB Series Operation Manual...

  • Page 19: Function List

    Function List Display Function Description 1.SEt Mode Type Weighing Mode (weighing only) Counting Mode + weighing Percentage Mode + weighing Weight conversion + weighing 2.SEL * Additional Functions Simple Weighing Function Only when setting value [34] is selected. Proceed Accumulation Function On to type 21 function.
  • Page 20 Display Function Description 71 uA Weighing Group “A” Unit tl (Hong Kong) tl (Singapore, Malaysia) tl (Taiwan) 72 dA Least Fine Ex. IB-2000 0.001g Readability 0.02g 0.05g 0.1g 0.2g Coarse Table 7-1. Function List (Continued) IB Series Operation Manual...
  • Page 21 Display Function Description 73 uA Weighing Group “B” No unit displayed Unit tl (Hong Kong) tl (Singapore, Malaysia) tl (Taiwan) Least Fine Ex. IB-2000 0.001g Readability 0.02g 0.05g 0.1g 0.2g Coarse Table 7-1. Function List (Continued) * = indicates default setting at time of factory shipment. Notes: •...

  • Page 22: Comparator Function Data

    25.LG * Judgment Display Ranking Display Two-point bar graph (effective only when 2 points set) Table 7-2. Comparator Function Data *1: Buzzer sounds only when buzzer is attached. Option relay output is also common when buzzer output. IB Series Operation Manual...

  • Page 23: Interface Data

    7.2.2 Interface Data Display Item Status Output Control Output disabled Normal operation, continuous output Continued output when stable (stop if unstable) Press the key X 1 to ouput (manual) printer X 1 Automatic output X 1 after load stabilized Stable = output X 1; unstable = no output Stable = output X 1;...

  • Page 24: Comparator Function

    1.SET 1 1.SET 2 4. Press the key. The limit function display Limit Function appears. 2.SEL 1 5. Press the key. The function on display Function OFF Function ON appears. 2.SEL 2 2.SEL 1 IB Series Operation Manual...

  • Page 25: Setting Confirmation And Input Procedure

    6. Press the key. The first limit function Limit Function Data display appears. Press the key repeatedly to call up the limit function displays in LIMIT 21.CO.2 FUNCTION sequence. DISPLAYS: Range Buzzer ON 22.LI.1 23.BU.0 7. To change the setting parameters, press the Judgement When Stable All Status Judgement key with the desired limit function...

  • Page 26: Upper/Lower Limit Input

    8.3.1 Actual Weight Input 1. Hold the key down for two to three seconds. Release when the display shows L.SEt (lower limit set). The indicator next to UNDER will Setting Start Flashing Numerals flash. L. SET IB Series Operation Manual...

  • Page 27: Numeric Input Procedure

    2. Place a sample of the actual lower limit weight on the weigh pan and press the key. The Memorize Upper Limit Place Low Sample display goes blank for a moment while the lower limit value is memorized. 123.4 3. Press the key to change to the upper limit Upper Limit Setting Flashing Numerals...
  • Page 28 Enter numeral as in the third step 0003.4 0000.4 above. 5. Continue entering the required numerals as Lower Limit Setting above. When all numerals have been entered, press the key to record lower limit value in 123.4 memory. IB Series Operation Manual...

  • Page 29: Accumulation Function

    Accumulation Function The accumulation function of the IB Series offers summing-up and display of measured data repeatedly. Useful in mixing or filling applications. Operation 1. Load an object on the scale. When the display Accumulation shows , press the key to accumulate the display value.

  • Page 30: Specifications

    10.0 Specifications This section contains charts for specifications and model data for the IB Series scale. 10.1 Specifications Refer to the tables below for common specifications and model specific data. 10.1.1 Common Specifications Item Specification Measurement method Tuning fork type...

  • Page 31: 10.2 Options And Standard Attachments

    10.2 Options and Standard Attachments Options • IJ output: for connecting peripherals (printer, comparator, etc.) • Buzzer output: judgment result alert buzzer function + IJ output. • Limit output: judgment result alert buzzer connection output + specialized printer output. • RS-232C output: for two-way communication with peripheral or external units.
  • Page 32 .002 TW tael 0.001 1,300 0.02 2,600 0.01 IB-15K Set C Unit Mark Capacity Readability 15,000,000 15,000 0.0001 75,000 0.005 0.0002 0.005 9600 0.05 230,000 HK tael 0.002 SIN tael 0.002 TW tael 0.002 4,000 0.02 IB Series Operation Manual...

  • Page 33: Troubleshooting

    11.0 Troubleshooting The following section contains a troubleshooting chart for the IB Series scale. Refer to this chart to locate causes and countermeasures to various conditions. Condition Cause Countermeasure Limit function data • Scale is not set to Limit Function mode •...

  • Page 34: Ib Series Limited Warranty

    IB Series Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems manufactured and sold by RLWS and properly installed by an authorized RLWS Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by rlws. All systems and components are warranted against defects in materials and workmanship for five years.
