  • Page 1 INT700 Platform Series Technical Manual 165401...

  • Page 3: Table Of Contents

    2.1 Installation of INT700 series ........
  • Page 4 Rice Lake continually offers web-based video training on a growing selection of product-related topics at no cost. Visit www.ricelake.com/webinars. INT700 BW/BWS/CW/VW NTW Series...

  • Page 5: Introduction

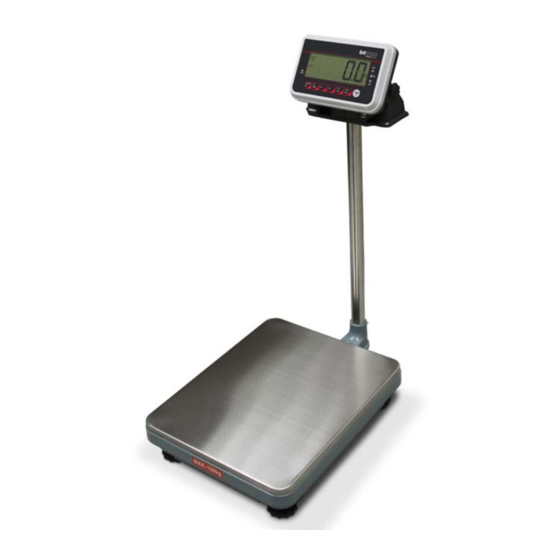

    The INT700 platform size is 420 mm x 520 mm, with a capacity range from 60 kg to 300 kg. All displays are large, easy-to-read liquid crystal type displays (LCD). The LCD are supplied with a LED backlight.

  • Page 6: Display

    Display The LCD display will show a weight value and current unit annunciator. Other annunciators are Tare, Gross/Net, Zero and Low Battery. Checkweighing Battery Low Units Figure 1-1. INT700 Display INT700...

  • Page 7: Key Descriptions

    Key Descriptions Powers unit On/Off. POWER Press to zero the scale. ZERO Also used as enter when setting parameters or other functions. Tares the current weight from the display and stores it in memory as a tare value. Net weight is displayed (total weight minus the tare weight). TARE Also used to increment the active digit when setting a value for parameters or other functions.

  • Page 8: Installation

    • Keep the unit clean. • Do not stack material on the unit when not in use. Installation of INT700 series 1. Attach the pillar bracket to the base frame. 2. Attach the pillar to the bracket using two sets of screws to secure it.

  • Page 9: Wiring Connections

    Wiring Connections Load Cell Analog Output AC Adapter RS-232 AC Power Socket Pole Neck Location Figure 2-1. Port Locations – Bottom of Unit EXC+ SEN+ SIG+ SIG- Load Cell SEN- SHIELD EXC- Figure 2-2. Load Cell Connection Diagram Input Receiving Data Output Transmitting Data Signal Ground...

  • Page 10: Analog Output And Checkweighing Output

    The scale will not operate if it is un-level, so a Mercury Level Bubble option can be added. Connect two wires to K1. If indicator displays , the scale is not level. Adjust scale level. err l If not installing this option, K1 will not be used. INT700...

  • Page 11: Calibration

    Calibration 1. Turn the power off. 2. Turn the power back on. During the self-check counting from 9 to 0 press (password) PRINT displays. GROSS NET 3. Press is displayed. p0chk TARE 4. Press until is displayed. P3 cal TARE 5.

  • Page 12: External Calibration

    Only after the linearity calibration has been completed, can external calibration be done. If the problem persists then contact your dealer. After calibration, check to verify the calibration and linearity are correct. If necessary, repeat calibration. Be certain the scale is stable before accepting any weight. INT700...

  • Page 13: Operation

    Operation Zero the Display Press to zero the scale. Weight must be within 4% of initial zero. Zero will display. ZERO The scale has an automatic re-zeroing function to account for minor drifting or accumulation of material on the platform. may need to be pressed again to re-zero the scale.

  • Page 14: Set Limits

    • – No beep 5. When the parameter desired is correct, press to store the value ZERO GROSS NET 6. Press to return to weigh mode. Checkweighing function is only available with a weight of more than 20d (min). INT700...

  • Page 15: Disable The Checkweighing Function

    4.5.2 Disable the Checkweighing Function 1. Enter zero into both limits by pressing when the current limits are shown. PRINT 2. Press to store the zero values. ZERO Accumulated Total The scale can be set to accumulate manually by pressing See the PARAMETERS Section for details of selecting the method using function P2 com.

  • Page 16: Animal Weighing

    TARE • – always on. BL ON • – auto backlight, will turn on when any button is pressed. BL AU 4. Press to store the value ZERO GROSS NET 5. Press to return to weigh mode. INT700...

  • Page 17: Set Auto Power Off

    4.11 Set Auto Power Off 1. Hold for three seconds, displays. setbl ZERO 2. Press to enter. ZERO 3. Press until displays. setoff TARE 4. Press to enter auto power off setup mode. ZERO 5. Press to change auto power off time to one of the following: TARE •...

  • Page 18: Parameter Setup

    ZERO 5. Use to select the active digit. 6. Use to increment the digit. TARE 7. When the value is correct, press to store the value ZERO GROSS NET 8. Press to return to weigh mode. INT700...

  • Page 19: Parameters

    Parameters Function Sub Function Description P0 CHK SET H Set High Limit SET LO Set Low Limit BEEP Set beep mode • no – beep off for checkweighing • OK – beep when weight between hi and low • ng – beep when weight out of hi-low range P1 REF AZN 0 Auto zero tracking range: 0.5d, 1d, 2d, 4d...
  • Page 20 TIME: 11/11/11 NO.: 7 NO.: 7 NO.: No.: GS: 0.888 kg NT: 0.666 kg 0.222 kg 0.222 kg TW: 0.222 kg TOTAL: 1.666 kg TW:: 0.666 kg GW: 0.888 kg 0.888 kg TOTAL: 1.666 kg Table 5-2. Form One INT700...
  • Page 21 LAB 0 LAB 1 LAB 2 LAB 3 TYPE – LP-50 2000/00/00 00:00 As left As left As left 0.888 kg DATE: 2000/00/00 As left As left As left TIME: 00:00 GW: 0.888 kg DATE: As left As left As left TIME: 00:00 S./NO.:...

  • Page 22: Appendix

    • Red LED – indicates battery is nearly discharged • Yellow LED – indicates battery is being charged. If the battery doesn’t hold a full charge, the battery life may be expired. Contact Rice Lake Weighing Systems or a local distributor.

  • Page 23: Normal Print Out

    • pin 5 – com (gnd) public • pin 6 – ok (output) • pin 7 – low (output) • pin 8 – hi (output) • pin 9 – beep (output) 6.3.1 Normal Print Out Data format for normal weighing operations, parts counting or recalling of totals from memory will all be different. Examples follow: The number increments every time a new value is stored in memory GW for gross weight, NT for net weight and a unit of weight...

  • Page 24: Specifications

    AC powered, 115 V/230 V Calibration Automatic External Display 51/2 digits LCD display with 52 mm high digits, attached LED backlight Balance housing Indicator ABS plastic Load cell drive voltage Max 5 V/150 mA Load cells Up to four 350 ohms cells INT700...

  • Page 25: Int700 Limited Warranty

    INT700 Limited Warranty Rice Lake Weighing Systems (RLWS) warrants that all RLWS equipment and systems manufactured and sold by RLWS and properly installed by an authorized RLWS Distributor or Original Equipment Manufacturer (OEM) will operate per written specifications as confirmed by the Distributor/OEM and accepted by RLWS. All systems and components are warranted against defects in materials and workmanship for one year.

  • Page 26: Notes

    NOTES INT700...
