Ramp Time For Wire Inching (P1); Latched/Special-Latched Tap Start (P9); Hold Function (P15); Correction Or Nominal Voltage Display (P24) - EWM Basic XQ Operating Instructions Manual

Display
5.8.2

Ramp time for wire inching (P1)

The wire inching starts with a speed 1.0 m/min for 2 secs. It is subsequently increased to a ramp function
to 6.0 m/min. The ramp time can be set between two ranges.
During wire inching, the speed can be changed by means of the welding power rotary knob. Changing the
speed has no effect on the ramp time.
5.8.3

Latched/special-latched tap start (P9)

In latched – tap start – operating mode it is possible to switch straight to the second step by tapping the
torch trigger; it is not necessary for current to be flowing.
The welding can be halted by pressing the torch trigger for a second time.
5.8.4

Hold function (P15)

Hold function active (P15 = 1)
• Mean values f or the last main program parameters used for welding are displayed.
Hold function not active (P15 = 0)
• Setpoint values for the main program parameters are displayed.
5.8.5

Correction or nominal voltage display (P24)

When setting the arc correction using the right-hand rotary knob the display will either show the correction
voltage +- 9.9 V (ex works) or the absolute nominal voltage.
5.8.6

Units system (P29)

Function not active
• Metric metric units are displayed.
Function active
• Imperial units are displayed.
5.8.7

Reset to factory settings

All special parameters saved by the user will be overwritten by the factory settings!
099-0M37XS-EW501
31.8.2022
Setting/selection
Correction or nominal voltage display
0 = -------- Correction voltage display (ex works).
1 = -------- Absolute nominal voltage display.
Unit system > see 5.8.6 chapter
0 = -------- metric system (ex works)
1 = -------- Imperial system
Functional characteristics
Special parameters (advanced settings)
+

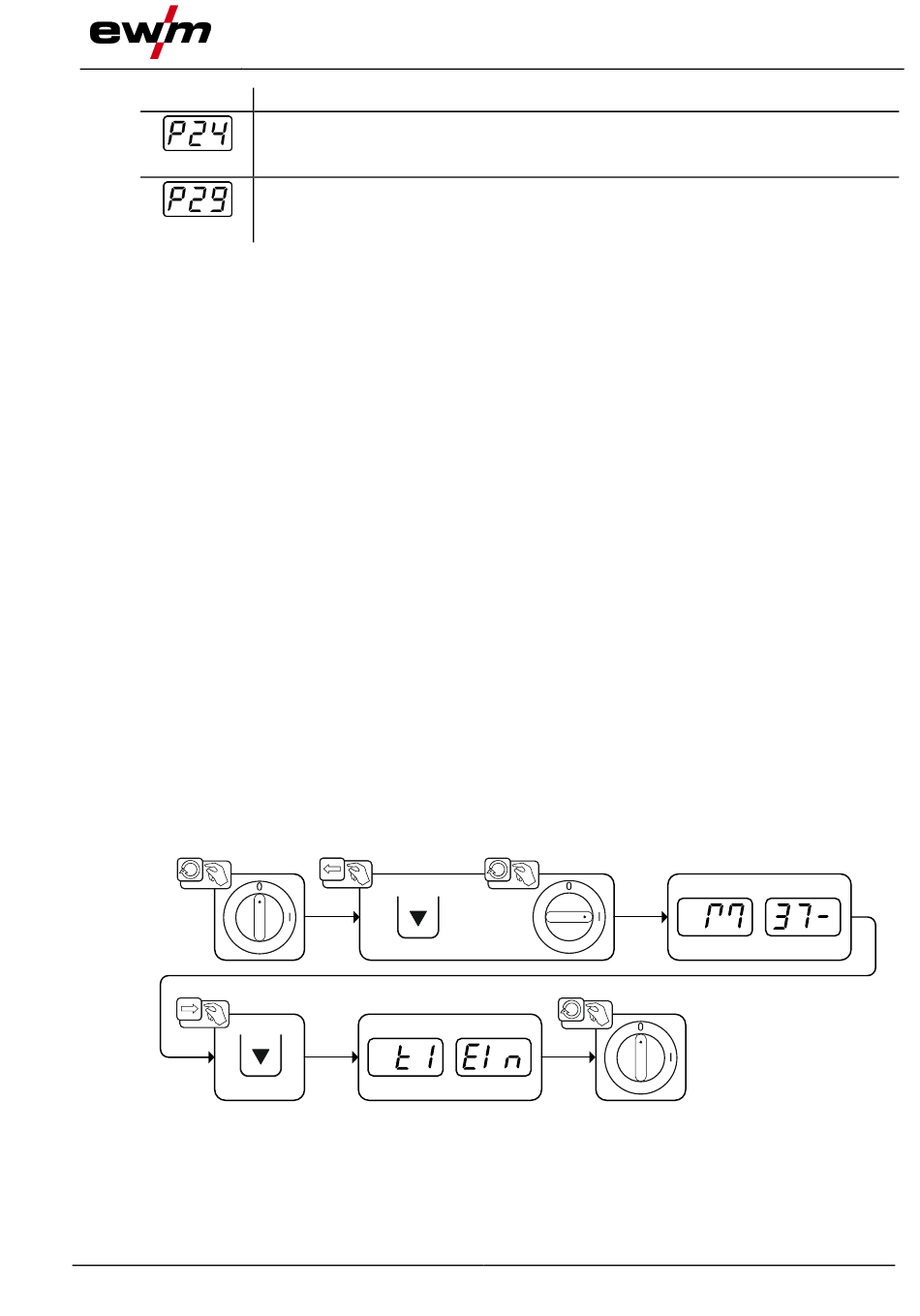

Figure 5-25
37
