Welding data display

On the lef t and right of the parameter displays there are push-buttons for the selection of parameters.
They are used to select the welding parameters to be displayed and their values.
Each time one the button is clicked, the display proceeds to the next parameter (signal lights indicate the
selection). After reaching the last parameter, the system is restarted with the first one.
MIG/MAG
Parameter
Welding current
Wire feed speed
Welding voltage
MMA
Parameter
Welding current
Welding voltage
When settings are changed (e.g. wire feed speed) the display immediately switches to the nominal value
setting.
Nominal values (before welding)
[1]
[2] Actual values (during welding)
[3] Hold values (after welding, display of mean values for entire welding process)
18
Description 0
Signal light welding voltage
Illuminates when the welding voltage is displayed in volts.
Display, right > see 4.1.3 chapter
V ---------- welding voltage
Excess temperature signal light / Welding torch cooling failure
For error messages > see 7 chapter
Coolant fault signal light
Signals pressure loss or low coolant level in the coolant circuit.
Second signal light
The displayed value is displayed in seconds.
Status display signal light (Hold)
Display of mean values across the entire welding process.
Percent signal light
The displayed value is displayed in percent.
Display, left > see 4.1.3 chapter
AMP ----- welding current
-------- wire f eed speed
Nominal values
Nominal values

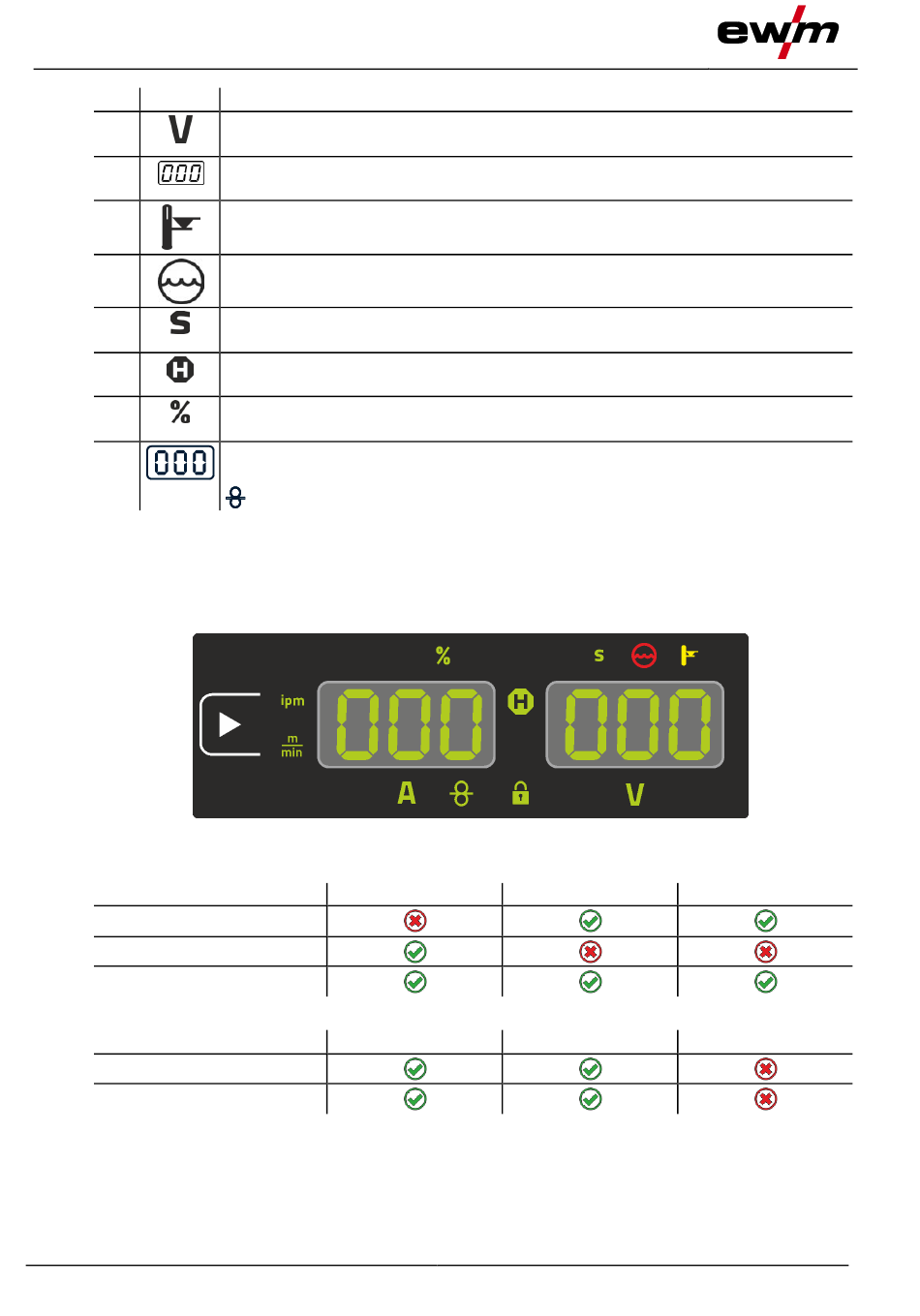

Figure 4-4
[1] Actual values
[1] Actual values
[2] Hold values [3]
[2] Hold values [3]
