Draw Test

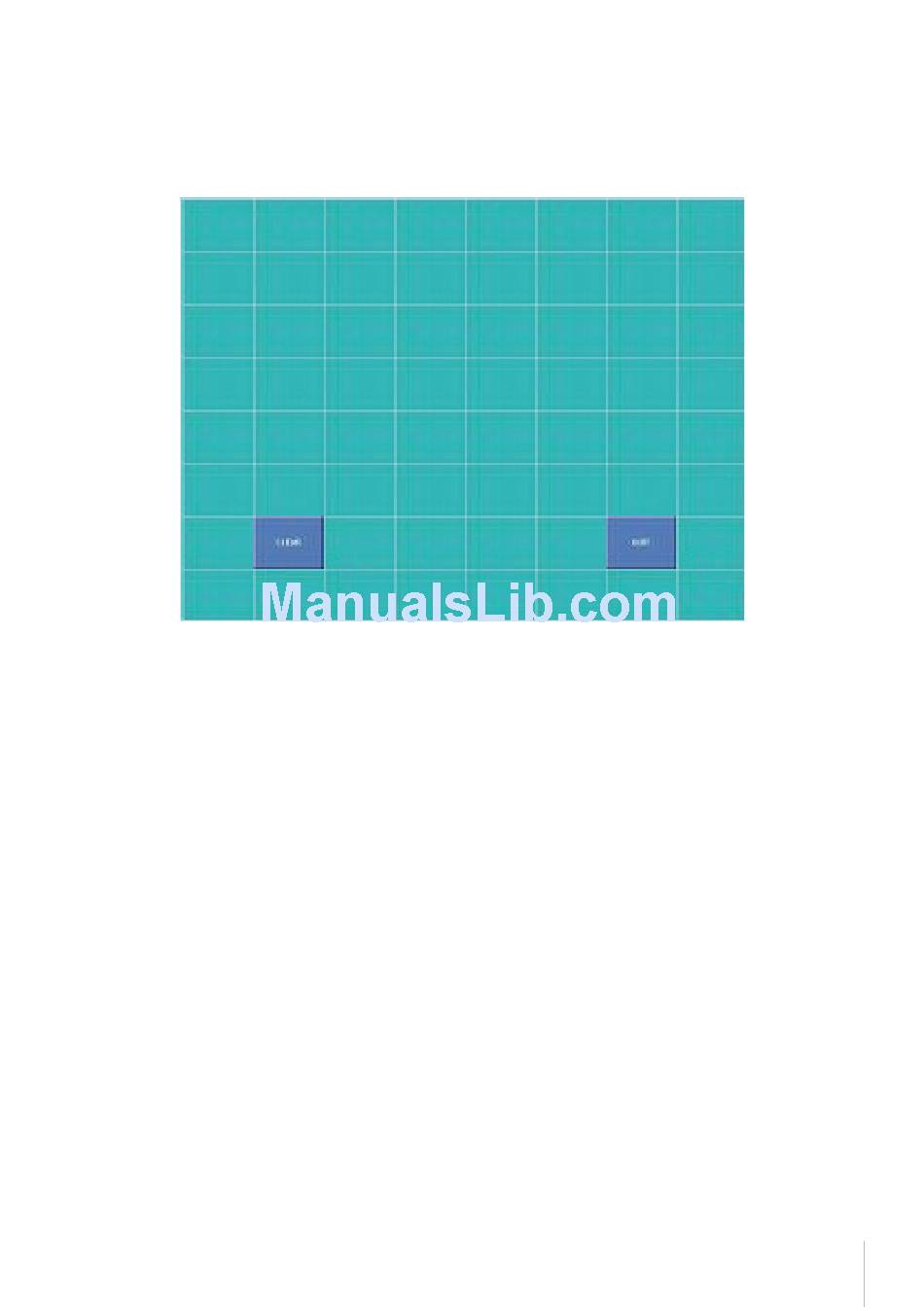

This function is used for accuracy and performance check. By pressing this button, a new window will pop
up at the location to where the touch screen was mapped. Screen as shown below.
User can press the Clear button to clear the window. Press Quit button to terminate this draw test. In
drawing test window, users can verify the panel linearity, calibration capability, and drawing line
quality.

Mouse Emulator

The touch panel driver emulates mouse left and right button function. After installing the touch panel
driver, a mouse icon will show in the desktop.
1. Change right / left button by clicking the upper small rectangular box of mouse icon. Blue area
indicates what button has been selected.
2. Touch panel driver also provides an option for advanced Mouse Emulation setting. When user
enable the "Auto Right Button", It will force the driver to report a right click mouse event to OS
when users perform a continuing touch till time out. It no longer needs to touch the right button in
the Touchtray to activate a right click. This feature allows users to do right click more easily with
touch screen.
