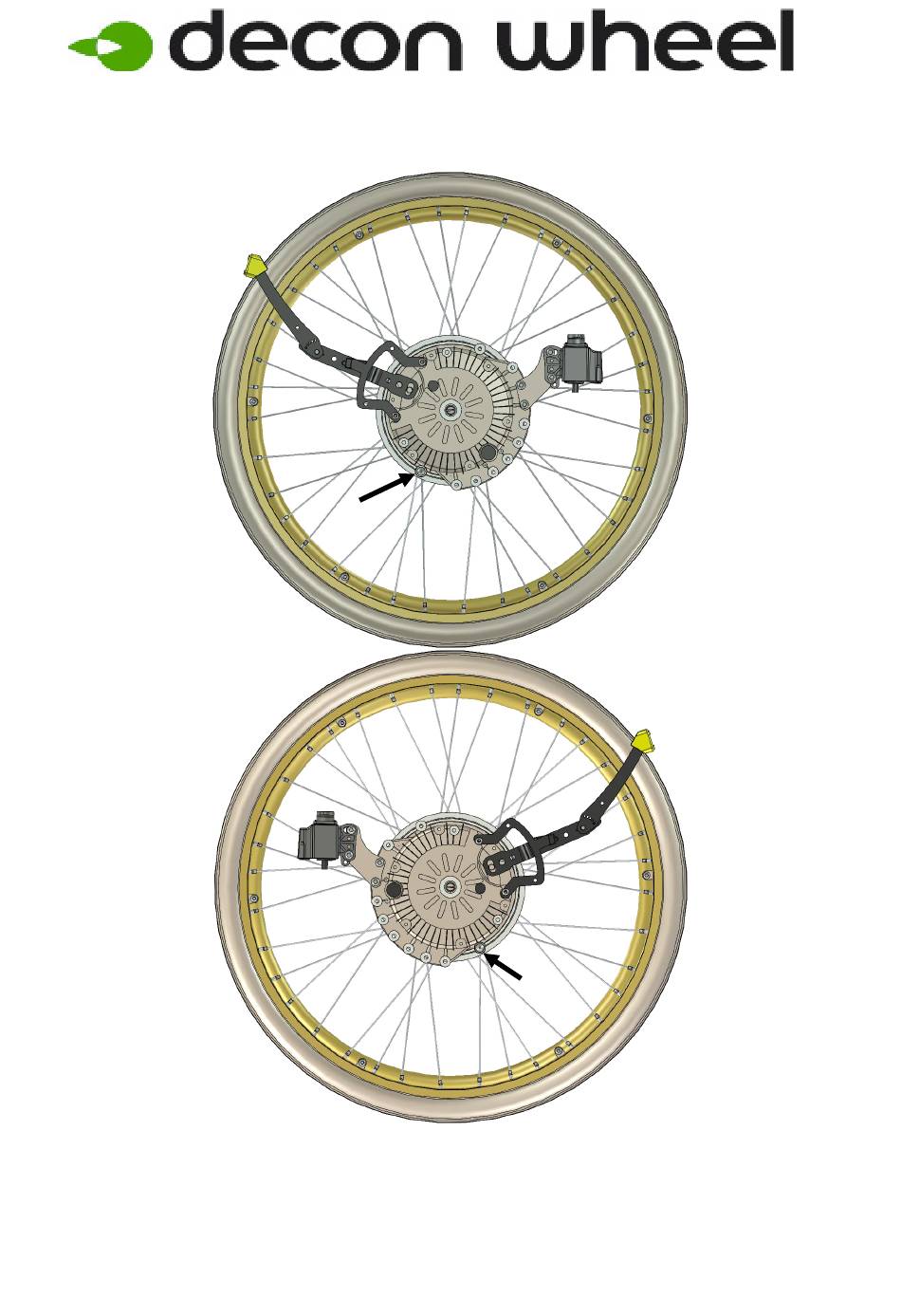

- Page 1 Assembly instructions for MIKA MED3099 1. Remove wheels and the brakes on both sides. 2. Check the correct placement for the stop pin and that the anti-tip devices and battery box are removed. 2020-05-12...
- Page 2 3. Parts pair mountingset: Item No. Part Number Description 100 400 006 Spacer MED2000 Bracket 405239 Nordlock Washer M16 100 400 007 Spacer 100 400 002 Spacer XSM8X30 Screw M8 x 30 XSM8ML Locknut M8 HW069 Hubsleever M16x1/12,7 XSM16FJ Single Coil Washer M16 XSM16M Nut M16 low model 100 400 017...
- Page 3 Joystick for user Parts included in MED1321 Item No. Part Number Description XOC-48160-B0 Upper holder assembly2 XSM6X30 Screw M6 x 30 XSM6BR Plain washer M6 XSM6ML Locknut M6 XSM6X20 Screw M6 x 20 MED1502 Bracket MED1501 Bracket 2020-05-12...
- Page 4 Joystick for attendant MED1356 Move to this side Item No. Part Number Description MED1317 Bracket XSM6X45 Screw M6 x 45 XSM6X20 Screw M6 x 20 XSM6BR Plain Washer M6 XSM6ML Locknut M6 MED1316 Plate with pin XA2-2612K-00 Clamp with M6 thread XA2-2612E-00 Clamp with hole 2020-05-12...
- Page 5 Attendant control assembly (only right side) MED1252 Item No. Part Number Description XSM6BRTG Thorn Washer M6 Xklamma2 XClamp2 XSM6X20 Screw M6 x 20 XSM6BR Plain Washer M6 2020-05-12...
