Vivo MOUNT-VP06B Series Assembly Manual

Vivo MOUNT-VP06B Series Assembly Manual

Projector ceiling and wall mount
Hide thumbs Also See for MOUNT-VP06B Series:

Advertisement

Quick Links

Download this manual

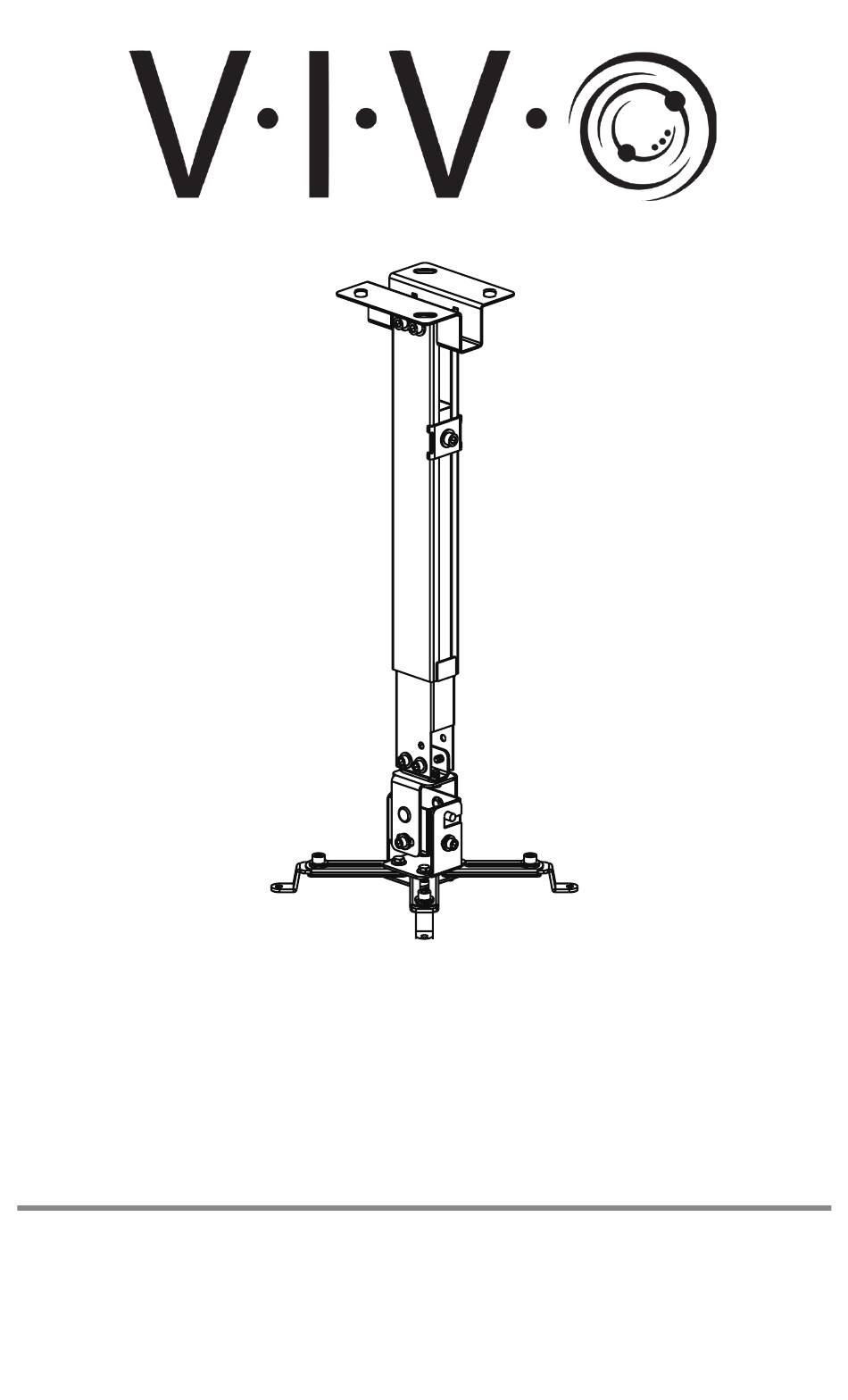

Projector Ceiling and
Wall Mount
MOUNT-VP06B Series
Assembly Manual
Individual Product SKUs
MOUNT-VP06B
MOUNT-VP06W

Advertisement

loading
Need help?

Need help?

Do you have a question about the MOUNT-VP06B Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo MOUNT-VP06B Series

Summary of Contents for Vivo MOUNT-VP06B Series

  • Page 1 Projector Ceiling and Wall Mount MOUNT-VP06B Series Assembly Manual Individual Product SKUs MOUNT-VP06B MOUNT-VP06W...
  • Page 2 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
  • Page 3 Package Contents A (x1) B (x1) C (x1) D (x1) Mounting Plate Pole Tilt Bracket Mounting Bracket E (x2) F (x1) Large Feet Cover Included Hardware & Tools S-A (x6) S-B (x4) S-C (x4) S-D (x2) S-E (x10) M5x10mm M6x10mm M6 Washer M5 Plastic M5 Metal...

  • Page 4: Option 1: Ceiling Mounting

    User Guide Option 1: Ceiling Mounting Proceed to Next Page Option 2: Wall Mounting Proceed to Page 9...
  • Page 5 Option 1: Ceiling Mounting STEP 1 Route cables through the Pole (B) and Mounting Plate (A). Attach the Pole (B) to Mounting Plate (A) using M6x10mm Screws (S-B) with M6 Washers (S-C). Tighten using the 5mm Allen Wrench (T-B).
  • Page 6 STEP 2 Option A: Wood Ceiling Installation Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/16” (4.5mm) Position the Mounting Plate (A) where desired Hole Depth: and mark the hole locations using a pencil. 2.2” (55mm) Secure the Mounting Plate (A) to the ceiling using ST6.3x55mm Screws (W-A) with M6 Mounting Washers (W-C).
  • Page 7 Option B: Concrete Ceiling Installation Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/8” (10mm) Position the Mounting Plate (A) where desired and mark the hole locations using Hole Depth: a pencil. 2.4” (60mm) Insert Concrete Anchors (W-B) into the drilled holes. Secure the Mounting Plate (A) to the ceiling using ST6.3x55mm Screws (W-A) with M6 Mounting Washers (W-C).
  • Page 8 STEP 3 Attach the Tilt Bracket (C) to the Pole (B) using M5x10mm Screws (S-A) with M5 Metal Washers (S-E) and 4mm Allen Wrench (T-A). Insert the Cover (F) into the slot on Pole (B). Proceed to Page 13 for Installing the Projector...
  • Page 9 Option 2: Wall Mounting STEP 1 Route cables through the Pole (B) and Mounting Plate (A). Attach the Pole (B) to Mounting Plate (A) using M6x10mm Screws (S-B) with M6 Washers (S-C). Tighten using the 5mm Allen Wrench (T-B).
  • Page 10 STEP 2 Option A: Wood Wall Installation Position the Mounting Plate (A) where desired and mark the hole locations using a pencil. Use of a level is recommended. Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/16” (4.5mm) Hole Depth: 2.2”...
  • Page 11 Option B: Concrete Wall Installation Position the Mounting Plate (A) where desired and mark the hole locations using a pencil. Use of a level is recommended. Pre-Drilling Instructions Drill mounting holes using infographic shown Drill Bit: 3/8” (10mm) Hole Depth: 2.4”...
  • Page 12 STEP 3 Attach the Tilt Bracket (C) to the Pole (B) using M5x10mm Screws (S-A) with M5 Metal Washers (S-E) and 4mm Allen Wrench (T-A). Insert the Cover (F) into the slot on Pole (B).

  • Page 13: Installing The Projector

    Installing the Projector Use the 5mm Allen Wrench (T-B) to loosen the screws on each Arm (D1). Slide and pivot the Arms on Mounting Bracket (D) to line them up with your projector’s mounting holes. For mounting patterns with only 3 holes, simply leave an Arm unused.
  • Page 14 Installing the Projector - Cont’d Attach the Mounting Bracket (D) to your projector using appropriate Screws (M-A, M-B, M-C) with Washers (M-D, M-E, S-E) and a Phillips screwdriver. M-A, M-B, M-C M-A, M-B, M-C M-D, M-E, S-E M-D, M-E, S-E Tighten the four center screws using an 8mm Wrench and tighten the screw on each Arm (D1) using 5mm Allen Wrench (T-B) on Mounting Bracket (D).

  • Page 15: Tilt Adjustments

    Installing the Projector - Cont’d Hook the Mounting Bracket (D) with project onto the two studs on Tilt Bracket (C). Secure using M5x10mm Screws (S-A) with M5 Metal Washers (S-E) on the outside and M5 Plastic Washers (S-D) on the inside as shown. Tighten using 4mm Allen Wrench (T-A). Tilt Adjustments Use 4mm Allen Wrench (T-A) to loosen the four screws around the Tilt Bracket (C).
  • Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
