CASE OVERVIEW, CONT'D: UPPER/LOWER SECTION REAR SLIDING DOORS, THERMOSTATS, ETC.

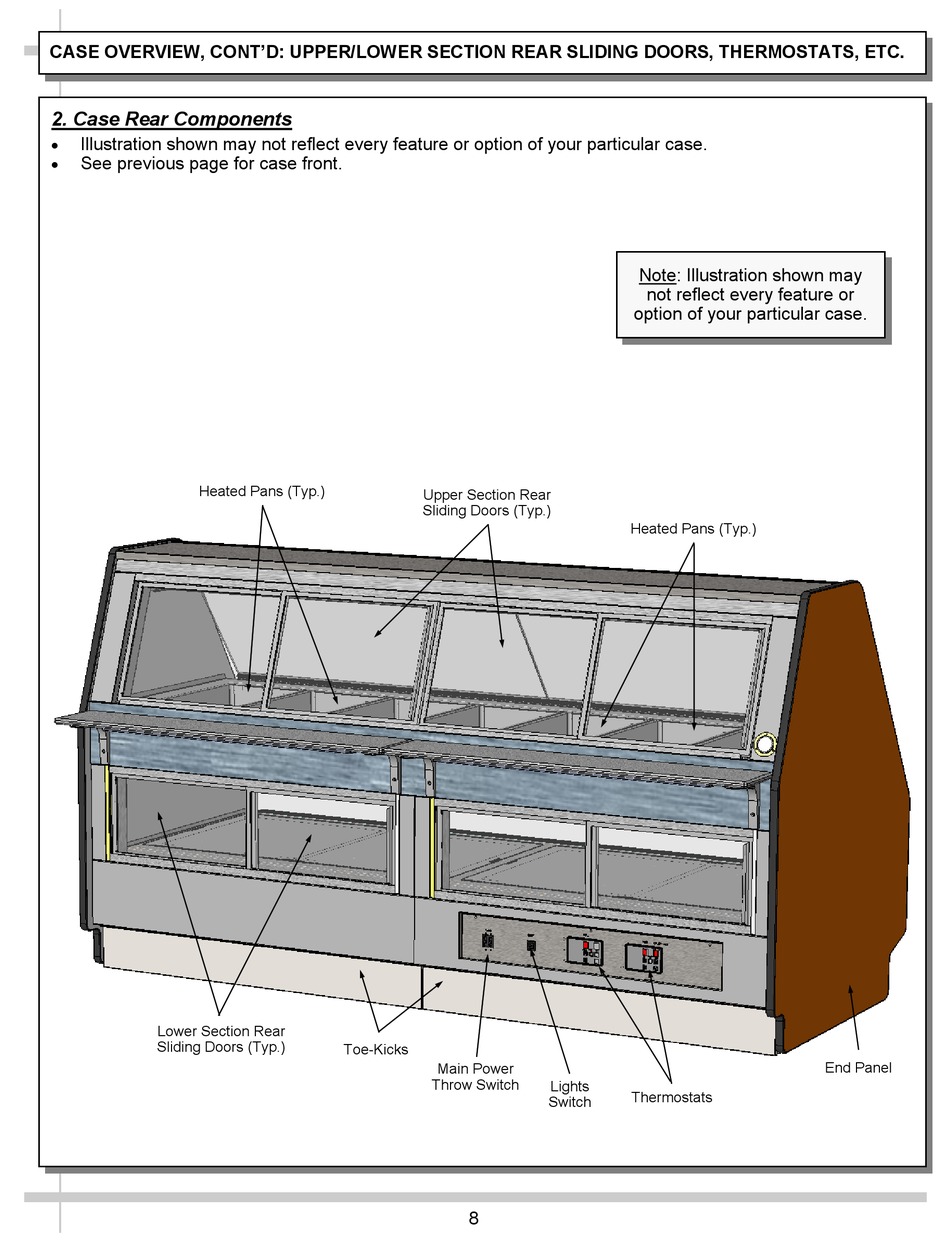

2. Case Rear Components
Illustration shown may not reflect every feature or option of your particular case.
See previous page for case front.
Heated Pans (Typ.)
Lower Section Rear
Sliding Doors (Typ.)
Upper Section Rear
Sliding Doors (Typ.)
Toe-Kicks
Main Power
Throw Switch
8
Note: Illustration shown may
not reflect every feature or
option of your particular case.
Heated Pans (Typ.)
Lights
Thermostats
Switch
End Panel
