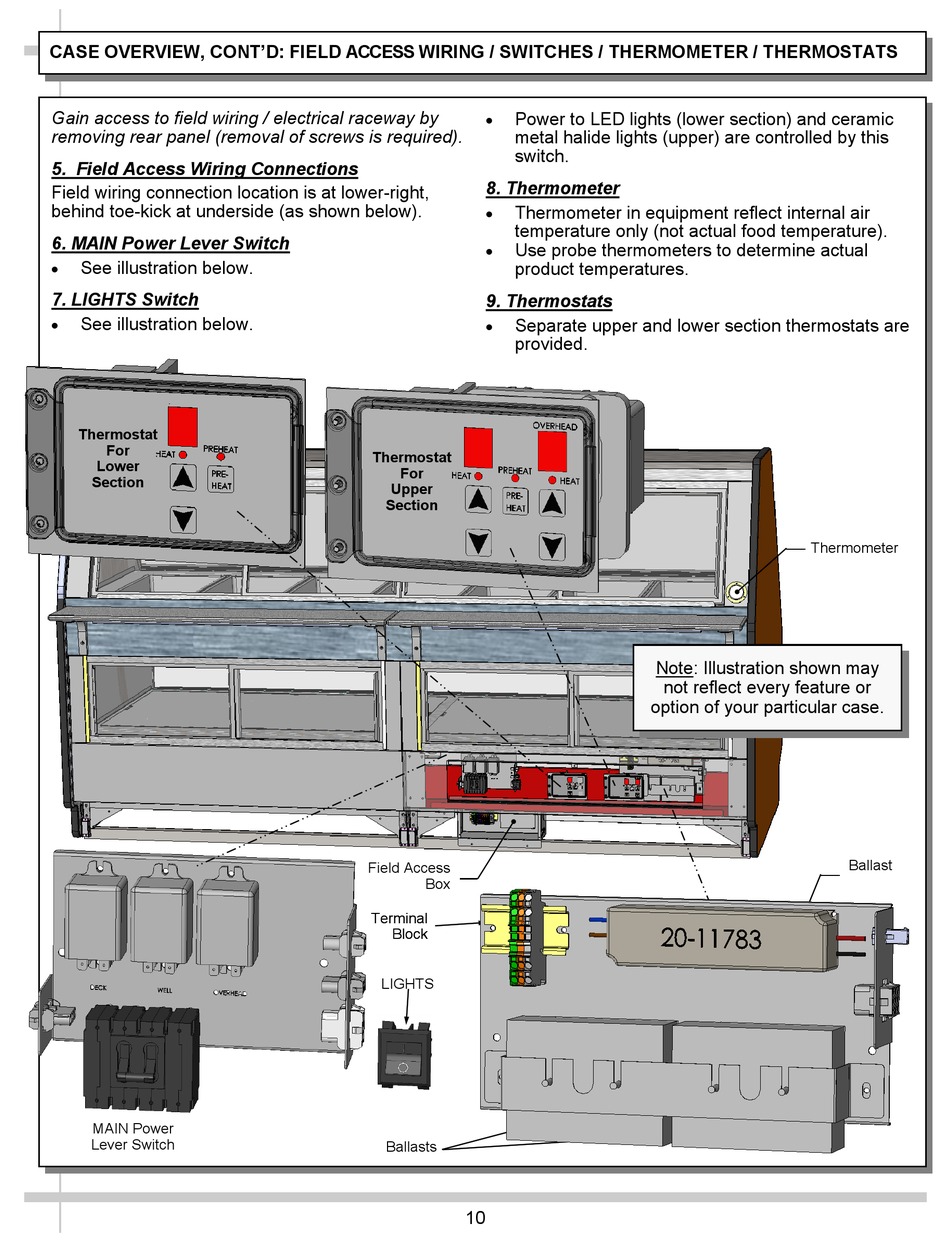

CASE OVERVIEW, CONT'D: FIELD ACCESS WIRING / SWITCHES / THERMOMETER / THERMOSTATS
Gain access to field wiring / electrical raceway by
removing rear panel (removal of screws is required).
5. Field Access Wiring Connections
Field wiring connection location is at lower-right,
behind toe-kick at underside (as shown below).
6. MAIN Power Lever Switch
 See illustration below.
7. LIGHTS Switch

See illustration below.
Thermostat
For
Lower
Section
Vapor
Thermometer
MAIN Power
Lever Switch

Power to LED lights (lower section) and ceramic
metal halide lights (upper) are controlled by this
switch.
8. Thermometer
 Thermometer in equipment reflect internal air
temperature only (not actual food temperature).
 Use probe thermometers to determine actual
product temperatures.

9. Thermostats

 Separate upper and lower section thermostats are
provided.
Thermostat
For
Upper
Section
Field Access
Box
Terminal Terminal
Block Block
LIGHTS
Ballasts
10
Thermometer
Note: Illustration shown may
not reflect every feature or
option of your particular case.
Ballast
