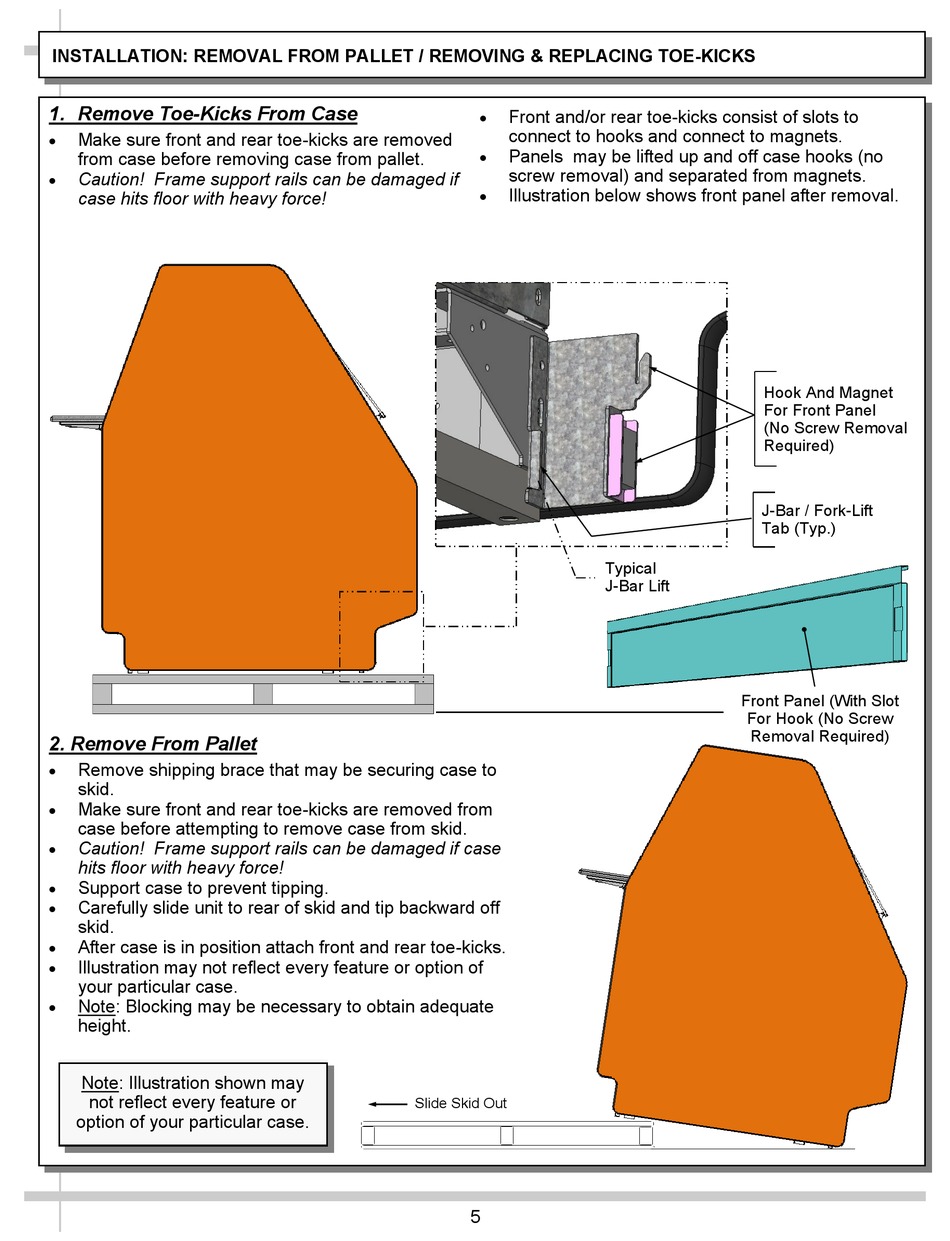

INSTALLATION: REMOVAL FROM PALLET / REMOVING & REPLACING TOE-KICKS
1. Remove Toe-Kicks From Case
 Make sure front and rear toe-kicks are removed
from case before removing case from pallet.
 Caution! Frame support rails can be damaged if
case hits floor with heavy force!
2. Remove From Pallet
 Remove shipping brace that may be securing case to
skid.
 Make sure front and rear toe-kicks are removed from
case before attempting to remove case from skid.
 Caution! Frame support rails can be damaged if case
hits floor with heavy force!
 Support case to prevent tipping.
 Carefully slide unit to rear of skid and tip backward off
skid.

After case is in position attach front and rear toe-kicks.

Illustration may not reflect every feature or option of
your particular case.
 Note: Blocking may be necessary to obtain adequate
height.
Note: Illustration shown may
not reflect every feature or
option of your particular case.

Front and/or rear toe-kicks consist of slots to
connect to hooks and connect to magnets.
 Panels may be lifted up and off case hooks (no
screw removal) and separated from magnets.
 Illustration below shows front panel after removal.
Slide Skid Out
5
Hook And Magnet
For Front Panel
(No Screw Removal
Required)
J-Bar / Fork-Lift
Tab (Typ.)
Typical
J-Bar Lift
Front Panel (With Slot
For Hook (No Screw
Removal Required)
