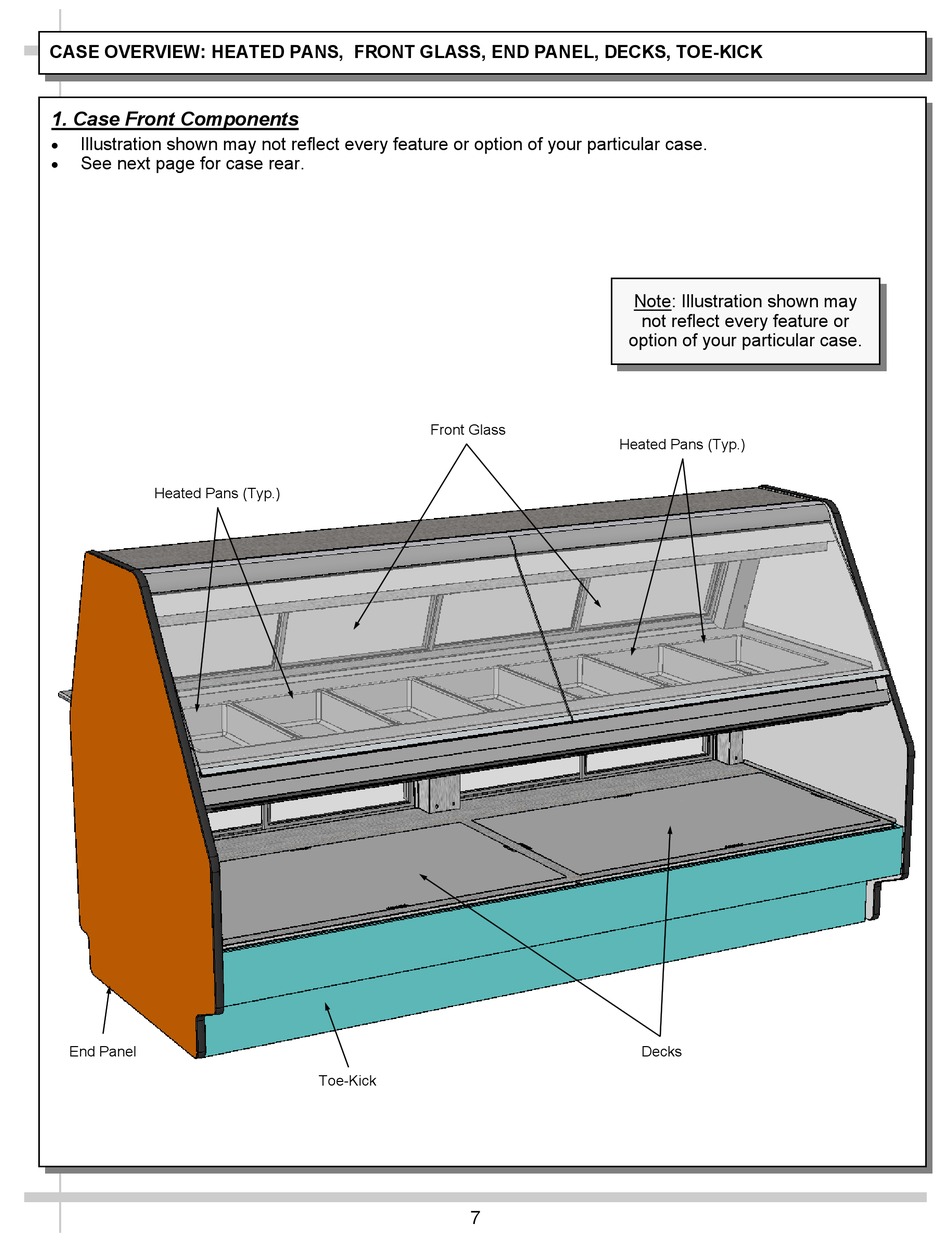

CASE OVERVIEW: HEATED PANS, FRONT GLASS, END PANEL, DECKS, TOE-KICK
1. Case Front Components
Illustration shown may not reflect every feature or option of your particular case.
See next page for case rear.
Heated Pans (Typ.)
End Panel
Front Glass
Toe-Kick
7
Note: Illustration shown may
not reflect every feature or
option of your particular case.
Heated Pans (Typ.)
Decks
