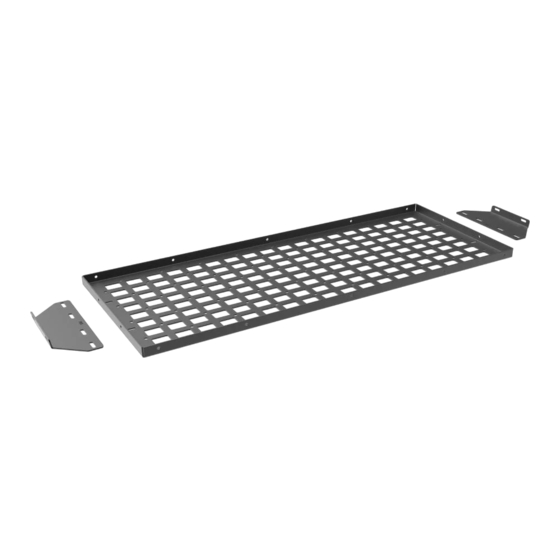

JCROffroad BR6-UPRS Install Instructions

4 door 6th gen bronco upper shelf
Hide thumbs
1
2
3
4
5

Advertisement

Quick Links

Download this manual

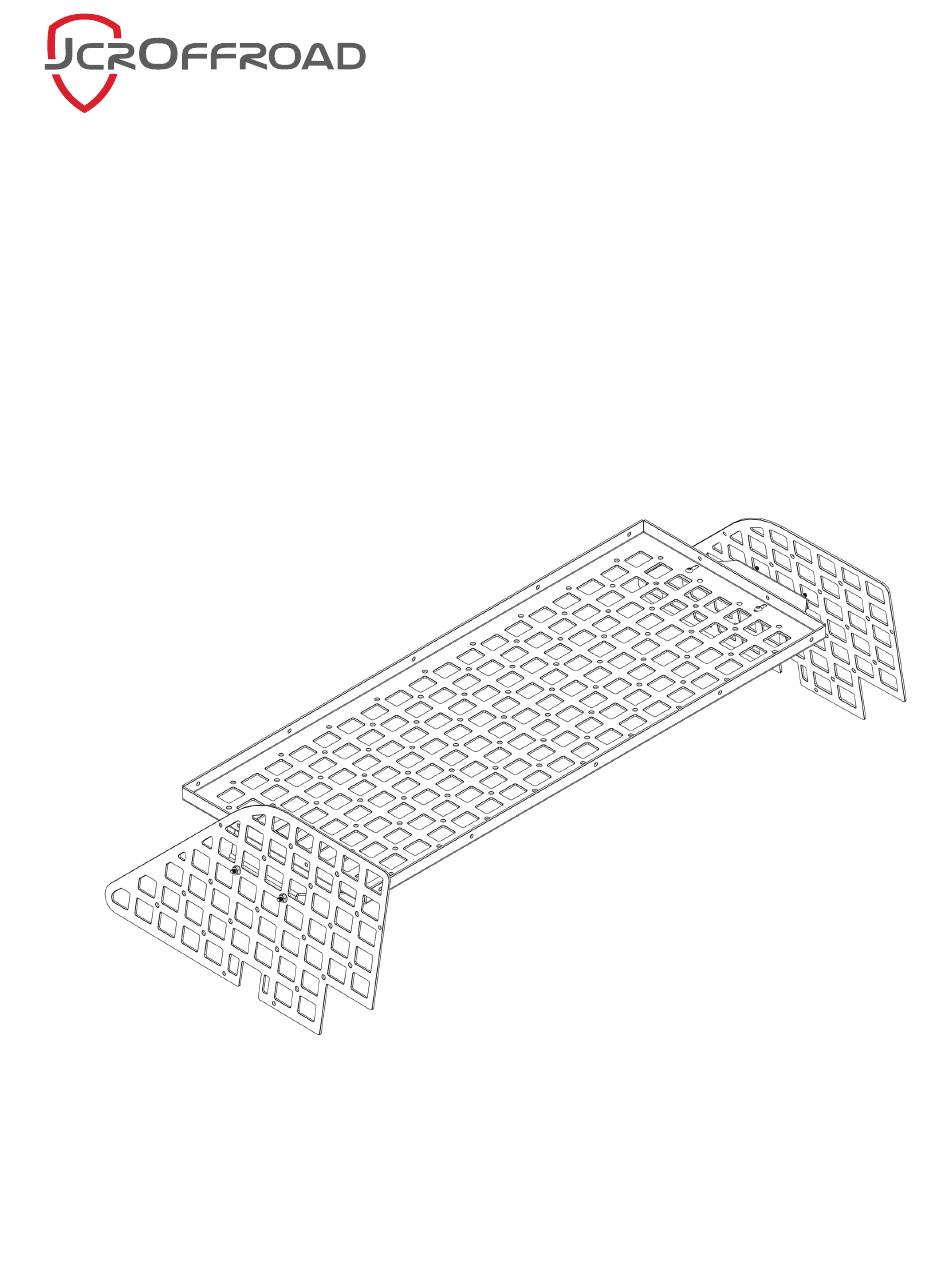

4 DOOR 6TH GE N BR ONCO
U PPE R S H E LF
IN S TAL L I NSTRU C TIO NS
Please read the mounting instructions below carefully before attempting to install.
Be sure to check out the install video on the product page, if available.
Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road
products. Be sure to rate and review our product online. If you have any questions or are missing parts, please
don't hesitate to call us at 269-353-1184!

Advertisement

loading
Need help?

Need help?

Do you have a question about the BR6-UPRS and is the answer not in the manual?

Questions and answers

Related Manuals for JCROffroad BR6-UPRS

Summary of Contents for JCROffroad BR6-UPRS

  • Page 1 Be sure to check out the install video on the product page, if available. Thank you for purchasing from JcrOffroad! Checkout our website, www.jcroffroad.com for other great off-road products. Be sure to rate and review our product online. If you have any questions or are missing parts, please...

  • Page 2: I Nclu D E D Hardware

    I NCLU D E D HARDWARE 1/4”-20 Serr. Flange Nut 1/4”-20 X 3/4” Button Head...

  • Page 3: Included Parts

    I NCLU D E D PARTS...

  • Page 4: Installation

    I NS TA LL ATI ON Start by loosely installing the mounts onto the Rear Window MOLLE Panels. To do so, line the bracket holes with the third set down of MOLLE panel holes and insert (2)1/4”-20 button heads through the bracket and hand tighten 1/4”-20 flange nuts through the back side of the window MOLLE on both sides.
  • Page 5 I NS TA LL ATI ON Next, place the Upper Shelf on top of the brackets and loosely bolt it in using (2) 1/4”-20 X 3/4” button head bolts and 1/4”-20 serr. flange nuts per side. Once it is loosely installed, adjust the position of the basket until it is where you want it.
