Summary of Contents for Daikin DAFU-1000
- Page 1 INSTALLATION OPERATION AND DAFU-IOM —01 MAINTENANCE MANUAL DAIKIN AIR FILTRATION UNIT ORIGINAL INSTRUCTIONS DAFU-IOM—01 Page 1 of 15...
-
Page 2: Table Of Contents
Contents General Information Warnings for the Operator Assistance Receiving and Inspection Purpose of the Manual Details of Manufacturer Identification Use of the Unit Introduction Guidelines Qualifications Safety Warning Warranty Environmental Conditions Technical Features and Specifications Dimensional Drawing Wiring Diagram Routine Maintenance Non-Routine Maintenance Access to Internal Components MERV8 Filter... -
Page 3: General Information
Any damage or non-conformity with the order must be written on the delivery note and a written complaint must be forwarded to: DAIKIN MIDDLE EAST & AFRICA FZE P.O. BOX 18674 JEBEL ALI FREE ZONE DUBAI UAE TEL: +971 4 8159 300 www.daikinmea.com... -
Page 4: Purpose Of The Manual
Installation, Operation and Maintenance Manual. If the unit is not complete or does not conform to the packing list, or if the manual is missing, please contact the Daikin sales network, quoting the specific data of the unit indicated on the name plate affixed to a wall of the unit. An example of a name plate is shown below:... -
Page 5: Use Of The Unit
USE OF THE UNIT DAIKIN AIR FILTRATION UNIT is used to remove impurities in air in Residential, Commercial, and Industrial environments. INSTALLATION The user/ installer is responsible for ensuring that the unit is installed to guarantee the static and dynamic stability of the same. All works must be carried out in compliance with national legislation on safety in the workplace. -
Page 6: Safety Warning
SAFETY WARNING Daikin wishes to point out the safe conditions for the operator while working on the unit. Before operating on the unit, users or installers must have read all the provisions contained in this manual. Before use, check and ensure that all the protective devices are installed and functioning. -
Page 7: Warranty
Daikin will not recognize damages reported after acceptance of the delivery. Complaints for defects that could not be detected at the moment of delivery must be reported to Daikin Middle East & Africa FZE in writing and forwarded by registered post. -
Page 8: Technical Features And Specifications

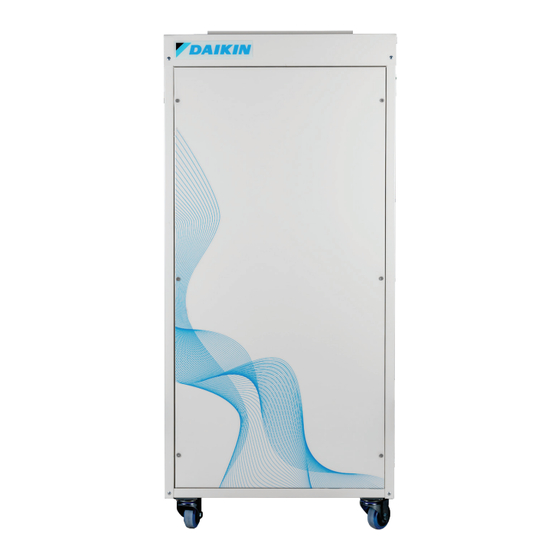

TECHNICAL FEATURES & SPECIFICATION Daikin's air filtration unit is equipped with 3-stage filtration including 99.99% efficient HEPA filters. It is a portable air filtration unit, with nominal 1000 CFM, designed to serve small to medium-sized facilities like in healthcare, to quickly and inexpensively convert standard patient rooms to negative pressure isolation rooms. - Page 9 MEGApleat MERV 8 Filter Highest dust holding capacity (DHC) - longest life of the filter Highest breach strength - strongest construction Heavy-duty, galvanized expanded metal support grid Lowest lifecycle pressure drops - reduction in energy consumption UL classified AmAir®/C Carbon Filter (Optional) Economical solution to many gaseous contaminant problems including odors Pleated panel filters made with activated carbon media Minimum efficiency reporting value MERV 7...
-
Page 10: Dimensional Drawing
DIMENSIONAL DRAWING ELECTRICAL WIRING DAFU-IOM—01 Page 10 of 15... -
Page 11: Routine Maintenance
ROUTINE MAINTENANCE Please note that routine maintenance will give: Greater efficiency; therefore, lower running costs Longer duration; therefore, lower repair costs BEFORE CARRYING OUT ANY MAINTENANCE OPERATION ON THE UNIT, IT MUST BE DISCONNECTED FROM THE ELECTRICITY. Examining the unit First, check if the fan is not running and spinning. -
Page 12: Non-Routine Maintenance
NON-ROUTINE MAINTENANCE Access to Internal Components Make sure that the unit is disconnected from the power supply. Check that the fan is not running and spinning. Using Allen key, unscrew the screws on the unit's front panel (Figure 5) and then carefully remove the panel. Figure 5 Front Panel MERV8 PRE Filter... -
Page 13: Uv Lamp
UV Light Make sure the unit is disconnected from power supply. Fan is not running and spinning. UV lamp can be accessed by removing the front panel. (Refer Access to internal components and Figure 5) Maintain lamps free of dust that diminishes the potency of ultraviolet emissions by wiping them every 2-3 months with a clean cloth. -
Page 14: Troubleshooting
Switch o the unit and contact manufacturer's Fan or bearing issue service representative. SERVICE CONTACTS ACTIVITY UAE / NEAR EAST/ GCC / AFRICA SAUDI ARABIA EGYPT Service service@daikinmea.com service@daikin-ksa.com service@daikinegypt.com Parts parts@daikinmea.com parts@daikin-ksa.com service@daikinegypt.com Warranty warranty@daikinmea.com warranty@daikin-ksa.com service@daikinegypt.com Technical Support techresponse@daikinmea.com... - Page 15 P.O. Box 18674, Plot MO0426, JAFZA North, Jebel Ali Free Zone, Dubai, UAE | Tel: +971 (0) 4 815 9300 | Fax: +971 (0) 4 815 9311 Toll Free: 800-DAIKIN (324546) Africa. DAFU-IOM—01 Page 15 of 15...
