Autel MaxiDiag MD808 Quick Reference Manual

Email: sales@autel.com
Web: www.autel.com
Thank you for purchasing AUTEL diagnostic tool. Manufactured to a high standard, our tool will, if used according
to these instructions and properly maintained, give you years of trouble-free performance.
Getting Started
IMPORTANT: Before operating or maintaining this unit, please read these instructions carefully, pay extra attention to the safety
warnings and precautions. Use this unit correctly and properly. Failure to do so may cause damage and/or personal injury and
will void the product warranty.
1
Scan QR Code to visit our website at
www.autel.com.
C re a t e a n A u t e l I D a n d re g i s t e r t h e
product with device' s SN and password.
Please download the Maxi PC Suite from
www.autel.com > Support & Updates > Firmware & Downloads > Update Client, and install to your PC.
Software Update and Delete
1
Take out the Micro SD card of your device and
insert it into a PC.
Run the Maxi PC Suite and select the Micro
Maxi PC Suite
SD card icon on the screen.
Wait for the Log In window to pop up.
Data Printing
Run Autel Printer on the computer which is installed after the installation of Maxi PC Suite.
Select Playback function in the Main Screen of the tool. In the data menu screen, use the UP/DOWN scroll button to select the data you want to print.
Wait for the reviewing window to display, and then select Print function.
The selected data will display on the textbox of the Autel Printer. By selecting the function keys on the right, you could execute the following operations:
Print – print all data in the textbox. ( A printer should be connected to the computer. )
Edit – once clicked, the software will automatically open a NOTEPAD window with all recorded data showing on.
Copy – copy all data in the textbox to the clipboard.
Clear – delete all data in the textbox.
Exit – quit the operation.
0049 (0) 61032000522 (Europe) / (+507) 308-7566 (South America) / 03 9480 2978 / +61 476293327 (Australia)
2
Connect the main cable' s female adapter
to the MaxiDiag MD808/808Pro.
Tighten the captive screws.
2
Enter your Autel ID and password and wait for
the Update window to display. If you forget your
password unintentionally, you may always click
the [Forget Password?] to link to our website
and find your password back. Or you may click
Sign up to create an Autel ID to continue.
Select the product type and serial number, click
OK to continue.
For service and support, please contact us.
http://pro.autel.com / www.autel.com / support@autel.com
0086-755-86147779 (China HQ) / 1-855-288-3587/1-855-AUTELUS (North America)
© Autel Intelligent Technology Corp., Ltd. All Rights Reserved.
Quick Reference Guide

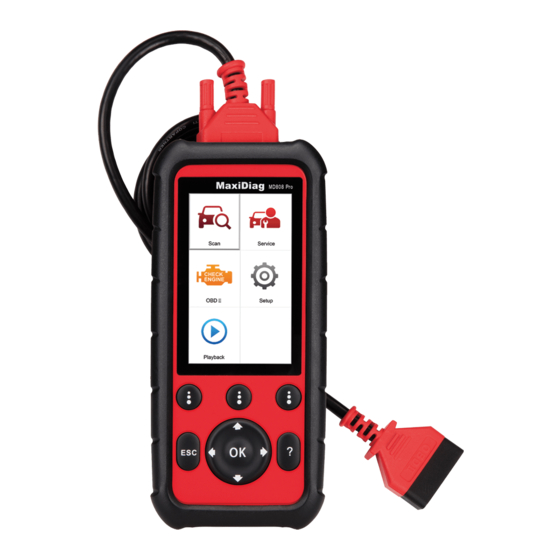

MaxiDiag MD808 / MD808Pro
3
Connect the main cable' s 16-pin male adapter
to the Vehicle' s DLC which is generally located
under the vehicle dash.
The device will be automatically powered up.
3
In the Update window, select the items you
want to install. Usually, all available updates
should be installed.
4
Your MD808/808Pro is now ready to work.
4
Click on the Installed tag and the page
will show the list of programs installed.
Select the items you would delete.
