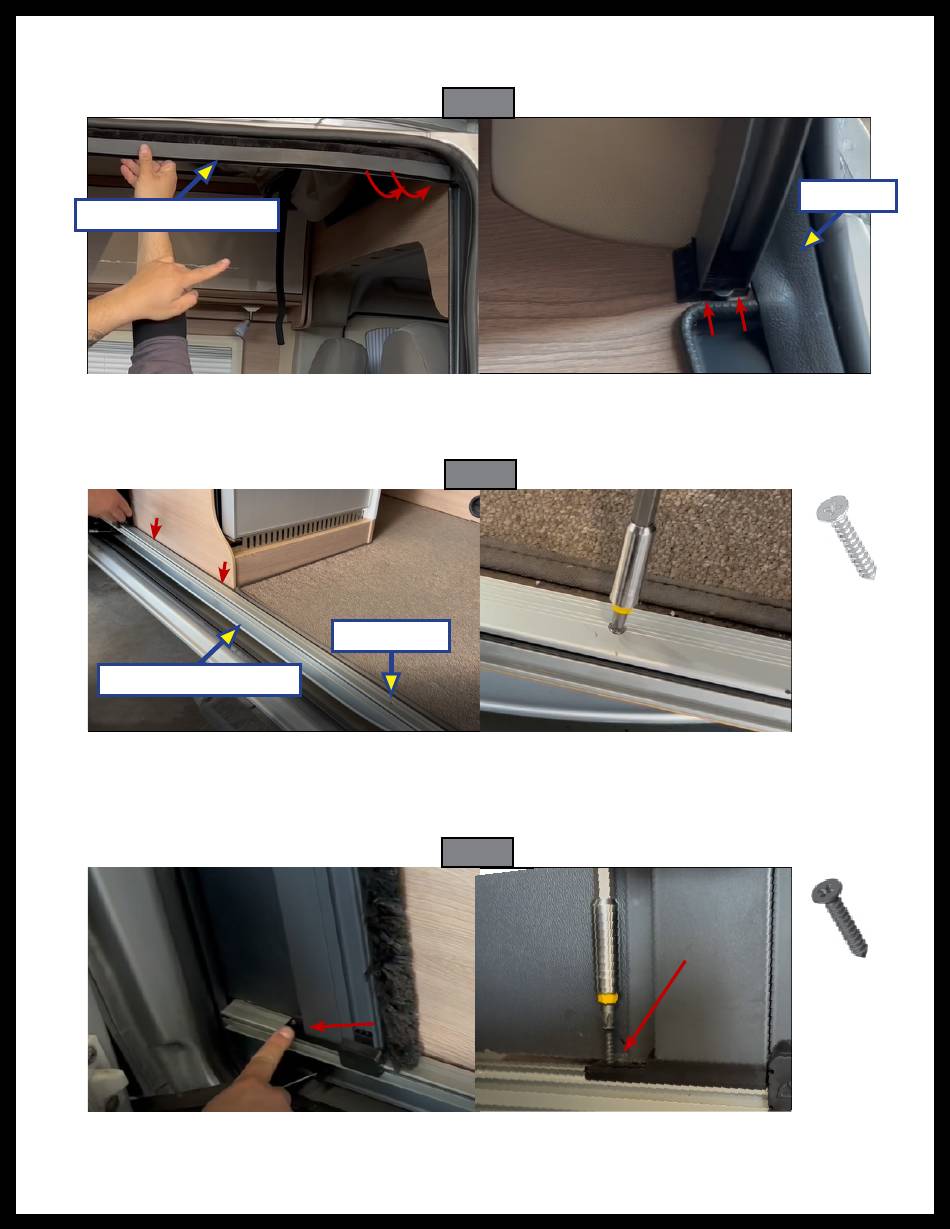

12. Guide the right side end of the upper sliding channel inside the van behind the door seal (Fig. 11).
Upper Sliding Channel
13. Once in place, take a standard screw gun and secure the three 3 X 20 screws into the lower sliding
channel (Fig. 12).
Lower Sliding Channel
14. Slide the fill support back and align the screw holes with the holes in the lower sliding channel.
15. Secure side support by screwing the two 3 x 20 screws in tight (Fig. 13).
Rev: 05.23.22
Fig. 11
Fig. 12
Screw Holes
Fig. 13
Page 7
Door Seal
3X
3 x 20
2X
3 x 20
