Giorik 700 Series Installation Manual

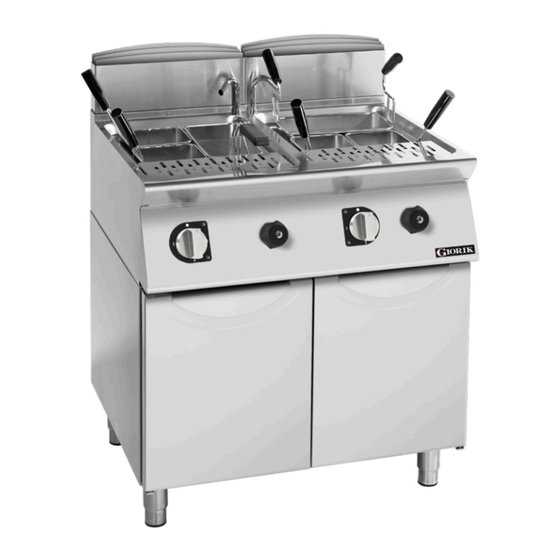

Pasta cooker
Hide thumbs Also See for 700 Series:
Table of Contents

Advertisement

Quick Links

Download this manual

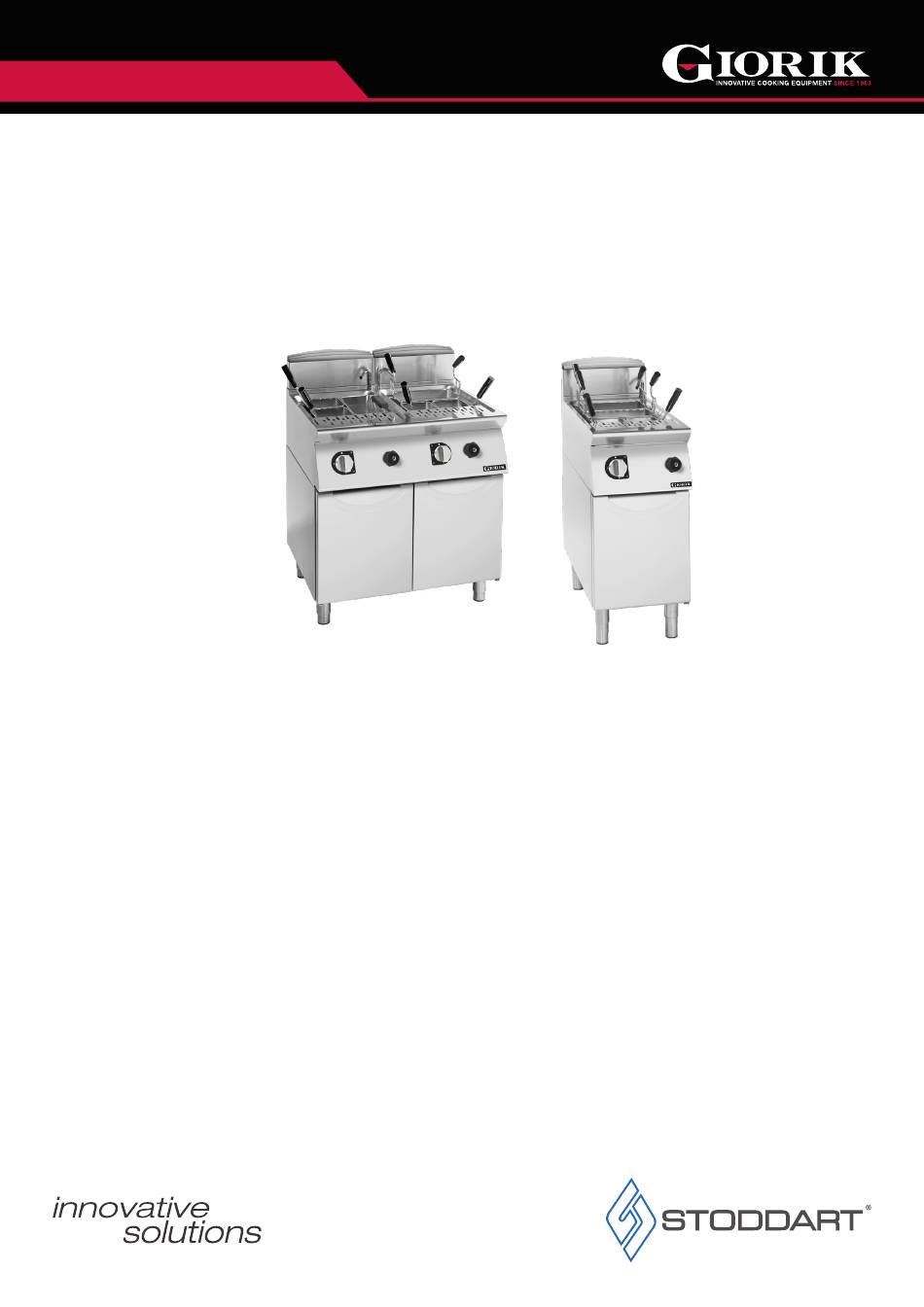

INSTALLATION / OPERATION / MAINTENANCE
MANUAL
(READ ALL INSTRUCTIONS BEFORE USE)
700/900
PASTA COOKER
(Gas / Electric)
Models:
700 Series Gas:
CPG726T / CPG746T
900 Series Gas:
CPG926T / CPG946T
Revision: A - 25/01/2022 - 02
700 Series Electric:
CPE726T / CPE746T
900 Series Electric:
CPE926T / CPE946T

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Giorik 700 Series

Summary of Contents for Giorik 700 Series

  • Page 1 INSTALLATION / OPERATION / MAINTENANCE MANUAL (READ ALL INSTRUCTIONS BEFORE USE) 700/900 PASTA COOKER (Gas / Electric) Models: 700 Series Gas: 700 Series Electric: CPG726T / CPG746T CPE726T / CPE746T 900 Series Gas: 900 Series Electric: CPG926T / CPG946T CPE926T / CPE946T...
  • Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
  • Page 3 4.1 Gas Pasta Cooker Operation ....21 4.1.1 Gas Controls 1.1 Your New Giorik Product ....3 4.1.2 Gas Operation 1.2 Australia and New Zealand Warranty .
  • Page 4 Thank you for choosing this quality Giorik product. All Giorik products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new Giorik product in accordance with these instructions, will provide many years of reliable service.

  • Page 5: Warranty And Registration

    700/900 1.0 Introduction Warranty & Registration 1.2 Australia and New Zealand Warranty 1.2.1 Warranty Period All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum 12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended warranty.

  • Page 6: General Precautions

    1.0 Introduction 1.3 General Precautions When using any electrical unit, safety precautions must always be observed. • All units MUST be installed according to the procedures stated in the installation section of this manual • In the case of new personnel, training is to be provided before operating the equipment •...
  • Page 7 700/900 1.0 Introduction 1.4 Setting Up Information IMPORTANT To be installed only by an authorised service person WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death 1.4.1 Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) 1.4.2 Unpacking...

  • Page 8: Specification

    2.0 Specification 2.1 Specification 2.1.1 700 Series 700 Series Model CPG726T CPG746T CPE726T CPE746T Pasta Cooker, Gas, Pasta Cooker, Gas, Pasta Cooker, Electric, Pasta Cooker, Electric, Description Single Tank 1 x 26L Single Tank 2 x 26L Single Tank 1 x 26L...

  • Page 9: Rating Plate

    Imported by: STODDART www.stoddart.com.au 700/900 Description: Giorik;700 Pasta Cooker; Gas; Twin Tank; 2 x 26 Ltr 2.0 Specification Gas Approval No. Main burner gas injector Model No: CPG746T (100th of a mm) 275 Natural Gas 175 Universal LPG Test Point Pressure 1.00 kPa Natural Gas...

  • Page 10: Technical Drawing

    2.0 Specification 2.2 Technical Drawing 2.2.1 CPG726T 700 Series CPG726T Model Pasta Cooker, Gas, Description Single Tank 1 x 26L Width 400mm Depth 720mm Height 1054mm Weight 52kg Water Connection 1/2” BSP Waste Connection 1” BSP Natural Universal LPG Gas Connection...
  • Page 11 700/900 2.0 Specification 2.2.3 CPE726T 700 Series Model CPE726T Pasta Cooker, Electric, Description Single Tank 1 x 26L Width 400mm Depth 720mm Height 1054mm Weight 50kg 3Ø + N + E Electrical Connection 415VAC / 50Hz / 6.5kW Water Connection 1/2”...
  • Page 12 2.0 Specification 2.2.5 CPG926T 900 Series Model CPG926T Pasta Cooker, Gas, Description Single Tank 1 x 40L Width 400mm Depth 920mm Height 1054mm Weight 75kg Water Connection 1/2” BSP Waste Connection 1” BSP Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa...
  • Page 13 700/900 2.0 Specification 2.2.7 CPE926T 900 Series CPE926T Model Pasta Cooker, Electric, Description Single Tank 1 x 40L Width 400mm Depth 920mm Height 1054mm Weight 65kg 3Ø + N + E Electrical Connection 415VAC / 50Hz /9.8kW Water Connection 1/2” BSP Waste Connection 1”...

  • Page 14: Installation

    3.0 Installation 3.1 Positioning WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. 3.1.1 General Information • The unit must be installed under an extraction canopy • Have a smooth, level floor which can bear the weight of the unit at full load •...
  • Page 15 700/900 3.0 Installation 3.2 Line-up Connection WARNING Must be installed only by an authorised service person If the unit is already installed and connected to power, the power to the equipment must be turned off and isolated. FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK. •...
  • Page 16 3.0 Installation • Place the units to be connected next to each other, adjust the legs ensuring the top of the two units sit flush • Using the provided bolts and nuts connect the units at the front and rear •...
  • Page 17 700/900 3.0 Installation 3.3 Gas Connection - Gas Models WARNING This unit must be installed by an authorised person/installer in accordance with this instruction manual, AS/NZS 5601 – Gas installations (installation and pipe sizing), local gas fitting regulations, local electrical regulations, local water regulations, local health regulations, Building Code of Australia and any other government authority.

  • Page 18: Gas Conversion

    3.0 Installation 3.3.3 Gas Pressure Check Seal Screw Ensure Burner Gas pressure matches the rating label (see page 8 / 2.3.1). Pressure outlet If the gas operating pressure is incorrect, adjust pressure regulator installed on the Test Point incoming gas supply to the unit. The operating pressure is measured at the pressure outlet test point (fig 4).
  • Page 19 700/900 3.0 Installation 3.4.2 Fixed Primary Air Regulation The fixed primary air is properly regulated if flame stability is ensured (if there are no breaks in the flame with the burner cold and no flashback when the burner is hot). Primary Air is fixed from the Factory. Please refer to page 7 / 2.1.3. Loosen the fixing screw ‘E’...
  • Page 20 3.0 Installation 3.5 Electrical Connection - Electric Models 3.5.1 Information WARNING This unit must be installed in accordance with AS/NZS 60335.1 Some procedures in this manual require the power to the equipment to be turned off and isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug body.

  • Page 21: Plumbing Connection

    700/900 3.0 Installation 3.6 Plumbing Connection 3.6.1 Information IMPORTANT This unit must be installed in accordance with AS/NZ 3500.1 Water with low chloride levels must be used! Water with high chloride levels will cause corrosion to the unit. For areas with a high chloride content (ie. SA, WA or country areas) demineralised water should be used in all cases.

  • Page 22: Operation

    4.0 Operation 4.1 Gas Pasta Cooker Operation WARNING The water in the unit and the surfaces of this unit are HOT when operating. Take caution and do NOT place any part of the body in the water. IMPORTANT Pilot lite will not ignite if there is Insufficient water in the tank.

  • Page 23: Electric Controls

    700/900 4.0 Operation 4.2 Electric Pasta Cooker Operation WARNING The water in the unit and the surfaces of this unit are HOT when operating. Take caution and do NOT place any part of the body in the water. IMPORTANT Pasta cooker will not heat if there is insufficient water in tank.

  • Page 24: Cleaning And Maintenance

    5.0 Cleaning and Maintenance 5.1 Cleaning 5.1.1 Cleaning Schedule • Daily cleaning is required for the appliance, to help maintain and prolong the appliance efficiency • The appliance should be cleaned at the end of each service period • Unit MUST BE emptied of all water at end of service period •...
  • Page 25 700/900 5.0 Cleaning and Maintenance 5.1.6 Cleaning Procedure (Daily) Isolate from the power supply The unit MUST be drained before cleaning. Ensure the waste gate is left OPENED to allow sufficient drainage while cleaning Clean the unit with warm (not hot) soapy water and a sponge. After cleaning, flush the unit with water Thoroughly wipe the unit dry with a soft cloth.

  • Page 26: Periodic Maintenance

    5.0 Cleaning and Maintenance 5.2 Maintenance WARNING Maintenance tasks MUST BE performed by qualified service people 5.2.1 Periodic Maintenance All controls and mechanical parts of the appliance MUST BE checked and adjusted periodically by a qualified service person. Contact the Stoddart service department to arrange a service Maintenance / Inspections Possible Causes...

  • Page 27: Troubleshooting

    700/900 5.0 Cleaning and Maintenance 5.2.3 Troubleshooting • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department Problem Possible Causes Possible Corrective Action GAS MODELS Check the Gas Valve is fully open.
  • Page 28 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au Service Request www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...

This manual is also suitable for:

900 seriesCpg726tCpg746tCpe726tCpe746tCpg926t ... Show all
