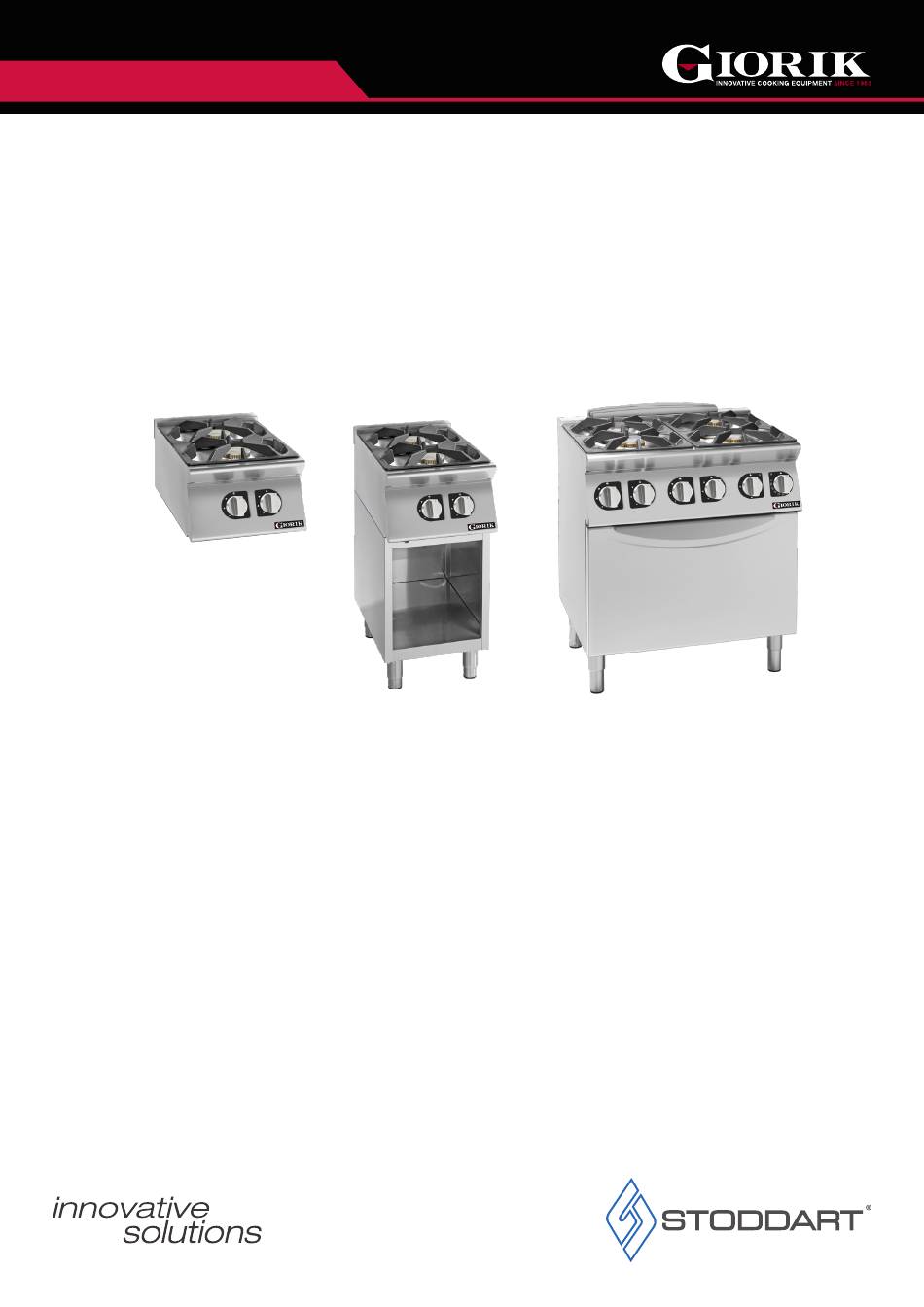

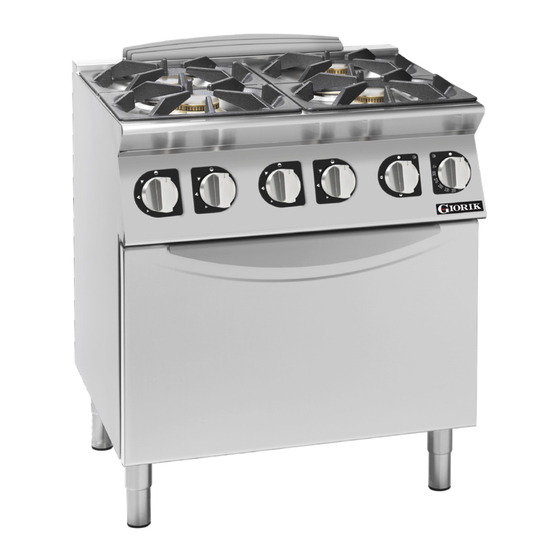

INSTALLATION / OPERATION / MAINTENANCE
MANUAL
(READ ALL INSTRUCTIONS BEFORE USE)
700/900
RANGE
(Gas Boiling Top / Gas Oven / Electric Oven)
Models:
700 Series:
CG720TT / CG740TT / CG760TT/ CG740ET / CG740FT / CG760FT
CG760ET / CG76EHT / CG760HT / CG720GT / CG740GT / CG760GT
900 Series:
CG920TT / CG940TT / CG960TT / CG940FT / CG960FT / CG940ET
CG960ET / CG96EHT / CG960HT / CG920GT / CG940GT / CG960GT
Revision: A - 04/01/2022 - 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Giorik 700 Series

Summary of Contents for Giorik 700 Series

  • Page 1 700/900 RANGE (Gas Boiling Top / Gas Oven / Electric Oven) Models: 700 Series: CG720TT / CG740TT / CG760TT/ CG740ET / CG740FT / CG760FT CG760ET / CG76EHT / CG760HT / CG720GT / CG740GT / CG760GT 900 Series: CG920TT / CG940TT / CG960TT / CG940FT / CG960FT / CG940ET...
  • Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
  • Page 3 3.0 Installation 1.1 Your New Giorik Product ....3 3.1 Positioning ......22 1.2 Australia and New Zealand Warranty .
  • Page 4 Thank you for choosing this quality Giorik product. All Giorik products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new Giorik product in accordance with these instructions, will provide many years of reliable service.

  • Page 5: Warranty And Registration

    700/900 1.0 Introduction Warranty & Registration 1.2 Australia and New Zealand Warranty 1.2.1 Warranty Period All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum 12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended warranty.

  • Page 6: General Precautions

    1.0 Introduction 1.3 General Precautions When using any electrical unit, safety precautions must always be observed. • All units MUST be installed according to the procedures stated in the installation section of this manual • In the case of new personnel, training is to be provided before operating the equipment •...
  • Page 7 700/900 1.0 Introduction 1.4 Setting Up Information IMPORTANT To be installed only by an authorised service person WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death 1.4.1 Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) 1.4.2 Unpacking...

  • Page 8: Specification

    2.0 Specification 2.1 Specification 2.1.1 Giorik 700 Series 700 Series Model CG720TT CG720GT CG740TT CG740ET CG740FT CG740GT Boiling Top, 2 Open Boiling Top, 2 Open Boiling Top, 4 Open Range, 4 Open Burners, Range, 4 Open Burners, Boiling Top, 4 Open Burners,...
  • Page 9 700/900 2.0 Specification 2.1.2 Giorik 900 Series 900 Series Model CG920TT CG920GT CG940TT CG940ET CG940FT CG940GT Boiling Top, 2 Open Boiling Top, 2 Open Boiling Top, 4 Open Range, 4 Open Burners, Range, 4 Open Burners, Boiling Top, 4 Open Burners,...

  • Page 10: Burner Configuration

    36.0 MJ/h CLOSE Pilot Burner - Oven Maxi - 900 0.14 Imported by: STODDART www.stoddart.com.au Description: Giorik;900 Range; Gas; 6 Burner on Gas Maxi Oven; Gas Approval No. Cooktop burner gas injector CG960HT Model No: 2.5mm for Natural Gas 1.55mm for Universal LPG...
  • Page 11 700/900 2.0 Specification 2.2 Technical Drawing - Gas 2.2.1 CG720TT 700 Series Model CG720TT Weight 30kg Overall Height 367mm Overall Depth 720mm Overall Width 400mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa...
  • Page 12 2.0 Specification 2.2.4 CG740TT 700 Series Model CG740TT Weight 60kg Overall Height 367mm Overall Depth 720mm Overall Width 800mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa...
  • Page 13 700/900 2.0 Specification 2.2.6 CG740FT 700 Series Model CG740FT Weight 140kg Overall Height 930mm Overall Depth 720mm Overall Width 800mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa...
  • Page 14 2.0 Specification 2.2.8 CG760TT 700 Series 1200 Model CG760TT Weight 90kg Overall Height 367mm Overall Depth 720mm Overall Width 1200mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP 1146 Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa...
  • Page 15 700/900 2.0 Specification 2.2.10 CG760FT 700 Series 1200 Model CG760FT Weight 210kg Overall Height 930mm Overall Depth 720mm Overall Width 1200mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa...
  • Page 16 2.0 Specification 2.2.12 CG760HT 700 Series 1200 Model CG760HT Weight 210kg Overall Height 930mm Overall Depth 720mm Overall Width 1200mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa...
  • Page 17 700/900 2.0 Specification 2.2.14 CG920TT 900 Series Model CG920TT Weight 40kg Overall Height 367mm Overall Depth 920mm Overall Width 400mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa Nominal Test Point Pressure...
  • Page 18 2.0 Specification 2.2.16 CG940TT 900 Series Model CG940TT Weight 80kg Overall Height 367mm Overall Depth 920mm Overall Width 800mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa Nominal Test Point Pressure...
  • Page 19 700/900 2.0 Specification 2.2.18 CG940FT 900 Series Model CG940FT Weight 170kg Overall Height 930mm Overall Depth 920mm Overall Width 800mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa Nominal Test Point Pressure...
  • Page 20 2.0 Specification 2.2.20 CG960TT 900 Series 1200 Model CG960TT Weight 100kg Overall Height 367mm Overall Depth 920mm Overall Width 1200mm 1146 Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa Nominal Test Point Pressure...
  • Page 21 700/900 2.0 Specification 2.2.22 CG960FT 900 Series 1200 Model CG960FT Weight 250kg Overall Height 930mm Overall Depth 920mm Overall Width 1200mm Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa Nominal Test Point Pressure...
  • Page 22 2.0 Specification 2.2.24 CG960HT 900 Series 1200 Model CG960HT Weight 250kg Overall Height 930mm Overall Depth 920mm Overall Width 1200mm Electrical Connection Natural Universal LPG Gas Connection 1/2'' BSP 1/2'' BSP Minimum Normal Test Gas Pressure 1.3 kPa 2.75 kPa Maximum Normal Test Gas Pressure 3.5 kPa 3.5 kPa...

  • Page 23: Installation

    700/900 3.0 Installation 3.1 Positioning WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. 3.1.1 General Information • The unit must be installed under an extraction canopy • Have a smooth, level floor which can bear the weight of the unit at full load •...
  • Page 24 3.0 Installation 3.2 Line-up Connection WARNING Must be installed only by an authorised service person If the unit is already installed and connected to power, the power to the equipment must be turned off and isolated. FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK. •...
  • Page 25 700/900 3.0 Installation • Place the units to be connected next to each other, adjust the legs ensuring the top of the two units sit flush • Using the provided bolts and nuts connect the units at the front and rear •...

  • Page 26: Gas Connection

    3.0 Installation 3.3 Gas Connection WARNING This unit must be installed by an authorised person/installer in accordance with this instruction manual, AS/NZS 5601 – Gas installations (installation and pipe sizing), local gas fitting regulations, local electrical regulations, local water regulations, local health regulations, Building Code of Australia and any other government authority.

  • Page 27: Gas Pressure Check

    700/900 3.0 Installation 3.3.3 Gas Pressure Check Ensure Burner Gas pressure matches the rating label (see page 9 / 2.3.1). Seal Screw If the gas operating pressure is incorrect, adjust pressure regulator installed on the Pressure outlet incoming gas supply to the unit. The operating pressure is measured at the pressure outlet Test Point test point (fig 4).

  • Page 28: Gas Conversion

    3.0 Installation 3.4 Gas Conversion IMPORTANT Gas Conversion must only be carried out by an authorised person. Incorrect installation may void warranty If the unit is to be connected to a different type of gas than that for which it has been prepared, the nozzles must be replaced. Please contact Stoddart for the approved Gas conversion Kit and settings.
  • Page 29 700/900 3.0 Installation 3.4.3 Oven - Replacement - Burner Nozzle To replace the oven injector, proceed as follows: Empty the oven cavity Remove the pan and the pilot flame peep hole protection cover Remove the lower faceplate (unscrew the 3 upper screws + 2 lower bolts) Remove the flame deflector on the oven (remove 1 front screw) Replace the injector with the correct gas type injector Adjust gas injector to aeration (Fig.10 “A”) to the specified distance (see page 9 / 2.1.3 )
  • Page 30 3.0 Installation 3.4.6 Fixed Primary Air Regulation The fixed primary air is properly regulated if flame stability is ensured (if there are no breaks in the flame with the burner cold and no flashback when the burner is hot). Primary Air is fixed from the Factory. Please refer to page 9 / 2.1.3. Unscrew the nozzle “U”...

  • Page 31: Electrical Connection

    700/900 3.0 Installation 3.5 Electrical Connection 3.5.1 Information WARNING This unit must be installed in accordance with AS/NZS 60335.1 Some procedures in this manual require the power to the equipment to be turned off and isolated. Turn the power OFF at the power point and unplug the Electrical Connection lead by the plug body.

  • Page 32: Operation

    4.0 Operation 4.1 Gas Range Operation WARNING Hot surfaces! DO NOT TOUCH Contact with skin may cause burns WARNING DO NOT spray aerosols in the vicinity of the appliance when operating. 4.1.1 Open Burner Controls Burner Dial Symbol Description Front Burner OFF Rear Burner OFF Pilot Flame Large Flame (Maximum Power)

  • Page 33: Gas Oven Operation

    700/900 4.0 Operation 4.2 Gas Oven Operation WARNING When the oven cavity is HOT, take care opening the oven door. Burn Hazard! WARNING Pay attention to liquids (oils/fats), especially if placed at the bottom of the oven cavity. High temperatures, could cause ignition! 4.2.1 Gas Oven Controls In range models with a gas oven, the oven has temperature adjustment and a piezo ignition button Thermostat Dial...
  • Page 34 4.0 Operation 4.3 Electric Oven Operation WARNING When the oven cavity is HOT, take care opening the oven door. Burn Hazard! WARNING Pay attention to liquids (oils/fats), especially if placed at the bottom of the oven cavity. High temperatures, could cause ignition! 4.3.1 Electric Oven Controls In the range models with an electric oven, the heating elements are located at the top and under the oven cavity base.

  • Page 35: Cleaning And Maintenance

    700/900 5.0 Cleaning and Maintenance 5.1 Cleaning 5.1.1 Cleaning Schedule • Daily cleaning is required for the appliance, to help maintain and prolong the appliance efficiency • The appliance should be cleaned at the end of each service period • DO NOT USE: Wire brushes, steel wool/sponges, scrapers or other abrasive materials •...

  • Page 36: Periodic Maintenance

    5.0 Cleaning and Maintenance 5.1.6 Cleaning Procedure (Daily) Isolate the unit from the Electrical Connection The appliance exterior should never be cleaned with direct water or high pressure jets Using a good quality nylon brush remove crumbs and small food items Wipe clean using a cloth dampened with clean warm soapy water until all has been removed For heavy soiling apply stainless cleaner (stainless steel surfaces only).

  • Page 37: Troubleshooting

    700/900 5.0 Cleaning and Maintenance 5.2.3 Troubleshooting • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department Problem Possible Causes Possible Corrective Action GAS MODELS Check the Gas Valve is fully open.
  • Page 38 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 37...
  • Page 39 700/900 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 38...
  • Page 40 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au Service Request www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
