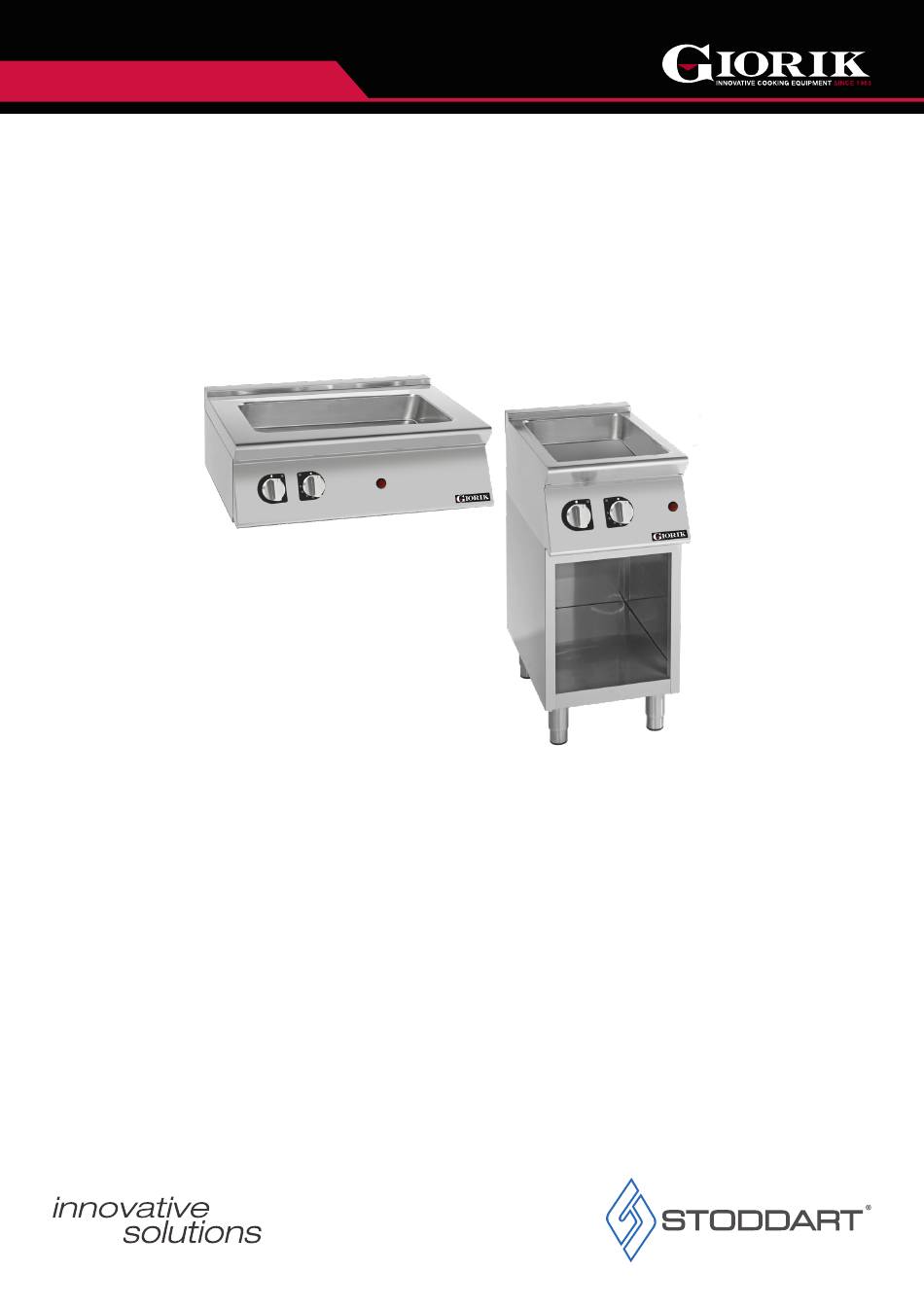

- Page 1 INSTALLATION / OPERATION / MAINTENANCE MANUAL (READ ALL INSTRUCTIONS BEFORE USE) 700/900 BAIN MARIE (Electric) Models: 700 Series: BM720ET / BM720TT / BM740ET / BM740TT 900 Series: BM920ET / BM920TT / BM940ET / BM940TT Revision: A - 21/12/2021 - 01...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
-
Page 3: Specification
5.0 Cleaning and Maintenance 1.1 Your New Giorik Product ....3 5.1 Cleaning ......17 1.2 Australia and New Zealand Warranty . - Page 4 Thank you for choosing this quality Giorik product. All Giorik products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new Giorik product in accordance with these instructions, will provide many years of reliable service.
-
Page 5: Warranty And Registration
700/900 1.0 Introduction Warranty & Registration 1.2 Australia and New Zealand Warranty 1.2.1 Warranty Period All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum 12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended warranty. -
Page 6: General Precautions
1.0 Introduction 1.3 General Precautions When using any electrical unit, safety precautions must always be observed. • All units MUST be installed according to the procedures stated in the installation section of this manual • In the case of new personnel, training is to be provided before operating the equipment •... - Page 7 700/900 1.0 Introduction 1.4 Setting Up Information IMPORTANT To be installed only by an authorised service person WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death 1.4.1 Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) 1.4.2 Unpacking...
- Page 8 2.0 Specification 2.1 Specification 2.1.1 700 Series 700 Series Model BM720TT BM720ET BM740TT BM740ET Electric Bain Marie 400mm Electric Bain Marie 400mm Electric Bain Marie 800mm Electric Bain Marie 800mm Description Counter Top On Open Base Counter Top On Open Base...
-
Page 9: Technical Drawing
700/900 2.0 Specification 2.2 Technical Drawing 2.2.1 BM720TT 700 Series Model BM720TT Electric Bain Marie 400mm Description Counter Top Weight 30kg Overall Height 327mm Overall Depth 720mm Overall Width 400mm Capacity 1x1/1GN 150mm 1Ø + N + E Electrical Connection 240VAC / 50Hz / 1.2kW... - Page 10 2.0 Specification 2.2.3 BM720ET 700 Series Model BM740TT Electric Bain Marie 800mm Description Counter Top Weight 73kg Overall Height 327mm Overall Depth 720mm Overall Width 800mm Capacity 1x2/1GN 150mm 1Ø + N + E Electrical Connection 240VAC / 50Hz / 2.4kW 10A plug &...
- Page 11 700/900 2.0 Specification 2.2.5 BM920TT 900 Series Model BM920TT Electric Bain Marie 400mm Description Counter Top Weight 40kg Overall Height 327mm Overall Depth 920mm Overall Width 400mm Capacity 1x1/1GN + 1x1/3GN 150mm 1Ø + N + E Electrical Connection 240VAC / 50Hz / 1.8kW 10A plug &...
- Page 12 2.0 Specification 2.2.7 BM920ET 900 Series Model BM920ET Electric Bain Marie 400mm Description On Open Base Weight 50kg Overall Height 890mm Overall Depth 920mm Overall Width 400mm Capacity 1x1/1GN + 1x1/3GN 150mm 1Ø + N + E Electrical Connection 240VAC / 50Hz / 1.8kW 10A plug &...
-
Page 13: Installation
700/900 3.0 Installation 3.1 Positioning WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. 3.1.1 General Information • Have a smooth, level floor which can bear the weight of the unit at full load •... - Page 14 3.0 Installation 3.2 Line-up Connection WARNING Must be installed only by an authorised service person If the unit is already installed and connected to power, the power to the equipment must be turned off and isolated. FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK. •...
- Page 15 700/900 3.0 Installation • Place the units to be connected next to each other, adjust the legs ensuring the top of the two units sit flush • Using the provided bolts and nuts connect the units at the front and rear •...
-
Page 16: Electrical Connection
3.0 Installation 3.3 Electrical Connection 3.3.1 Information WARNING This unit must be installed in accordance with AS/NZS 60335.1 Some procedures in this manual require the power to the equipment to be turned off and isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug body. -
Page 17: Electric Operation
700/900 4.0 Operation 4.1 Electric Operation WARNING Hot surfaces! DO NOT TOUCH Contact with skin may cause burns 4.1.1 Controller Configuration Control Panel Symbol Description Power On °C Temperature Range 30°C - 90°C Green Indicator Light Orange Indicator Light Drain Valve Button Fig.3. -
Page 18: Cleaning And Maintenance
5.0 Cleaning and Maintenance 5.1 Cleaning 5.1.1 Cleaning Schedule • Daily cleaning is required for the appliance, to help maintain and prolong the appliance efficiency • The appliance should be cleaned at the end of each service period • DO NOT USE: Wire brushes, steel wool/sponges, scrapers or other abrasive materials •... -
Page 19: Periodic Maintenance
700/900 5.0 Cleaning and Maintenance 5.1.6 Cleaning Procedure (Daily) Isolate from the power supply The unit MUST be drained before cleaning Clean the unit with warm (not hot) soapy water and a sponge After cleaning, turn the unit on and flush the unit with clean water Thoroughly wipe the unit dry with a soft cloth. - Page 20 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au Service Request www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
