INSTALLATION / OPERATION / MAINTENANCE
MANUAL
(READ ALL INSTRUCTIONS BEFORE USE)
700/900
INDUCTION BOILING TOP / WOK
(Electric)
Models:
700 Series:
CI720TT / CI720GT / CI740TT / CI740GT
CW720TT / CW720GT
900 Series:
CI920TT / CI920GT / CI940TT / CI940GT
CW920TT / CW920GT
Revision: A - 21/12/2021 - 01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Giorik 700 Series

Summary of Contents for Giorik 700 Series

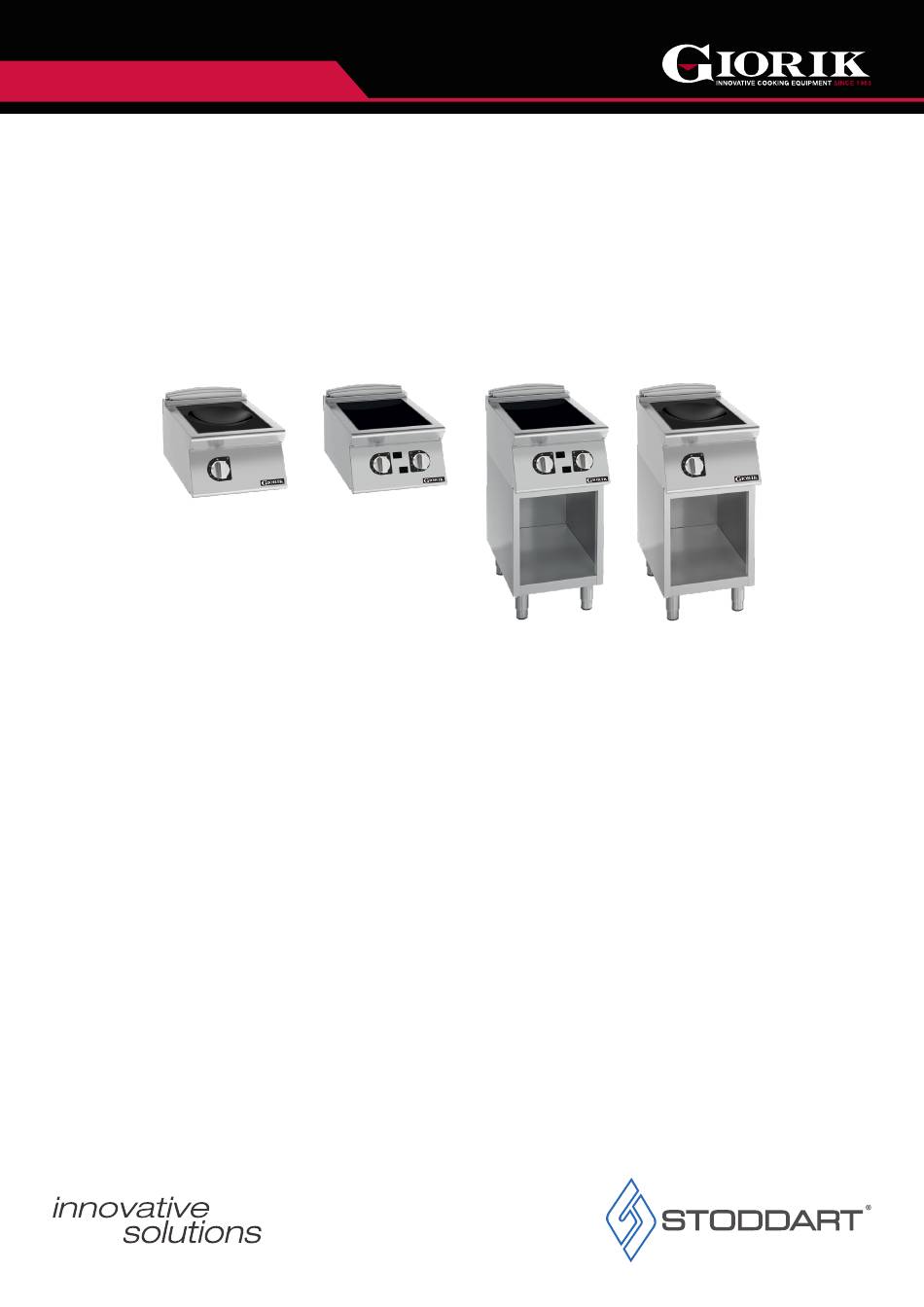

  • Page 1 MANUAL (READ ALL INSTRUCTIONS BEFORE USE) 700/900 INDUCTION BOILING TOP / WOK (Electric) Models: 700 Series: CI720TT / CI720GT / CI740TT / CI740GT CW720TT / CW720GT 900 Series: CI920TT / CI920GT / CI940TT / CI940GT CW920TT / CW920GT Revision: A - 21/12/2021 - 01...
  • Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...

  • Page 3: Specification

    5.0 Cleaning and Maintenance 1.1 Your New Giorik Product ....3 5.1 Cleaning ......19 1.2 Australia and New Zealand Warranty .
  • Page 4 Thank you for choosing this quality Giorik product. All Giorik products are designed and manufactured to meet the needs of food service professionals. By caring for and maintaining this new Giorik product in accordance with these instructions, will provide many years of reliable service.

  • Page 5: Warranty And Registration

    700/900 1.0 Introduction Warranty & Registration 1.2 Australia and New Zealand Warranty 1.2.1 Warranty Period All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum 12 month on-site parts and labour, terms and conditions apply). Further to this standard warranty, certain products have access to an extended warranty.

  • Page 6: General Precautions

    1.0 Introduction 1.3 General Precautions When using any electrical unit, safety precautions must always be observed. • All units MUST be installed according to the procedures stated in the installation section of this manual • In the case of new personnel, training is to be provided before operating the equipment •...
  • Page 7 700/900 1.0 Introduction 1.4 Setting Up Information IMPORTANT To be installed only by an authorised service person WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death 1.4.1 Handling • Use suitable means to move the unit; - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) 1.4.2 Unpacking...
  • Page 8 2.0 Specification 2.1 Specification 2.1.1 700 Series 700 Series Model CI720TT CI720GT CI740TT CI740GT CW720TT CW720GT Induction Boiling Top, Induction Boiling Top, Induction Boiling Top, Induction Boiling Top, Induction Wok, Induction Wok, Description Countertop Open Base Countertop Open Base Countertop...

  • Page 9: Technical Drawing

    700/900 2.0 Specification 2.2 Technical Drawing 2.2.1 CI720TT 700 Series Model CI720TT Induction Boiling Top, Description Countertop Weight 45kg Overall Height 367mm Overall Depth 720mm Overall Width 400mm Cooking Zone 2 x Ø230mm 3Ø + N + E Electrical Connection 415VAC / 50Hz / 7.6kW...
  • Page 10 2.0 Specification 2.2.3 CI740TT 700 Series Model CI740TT Induction Boiling Top, Description Countertop Weight 65kg Overall Height 367mm Overall Depth 720mm Overall Width 800mm Cooking Zone 4 x Ø230mm 3Ø + N + E Electrical Connection 415VAC / 50Hz / 15kW...
  • Page 11 700/900 2.0 Specification 2.2.5 CW720TT 700 Series Model CW720TT Induction Wok, Description Countertop Weight 45kg Overall Height 367mm Overall Depth 720mm Overall Width 400mm Cooking Zone Ø300mm 3Ø + N + E Electrical Connection 415VAC / 50Hz / 5.4kW Legend Electrical Connection 2.2.6 CW720GT...
  • Page 12 2.0 Specification 2.2.7 CI920TT 900 Series Model CI920TT Induction Boiling Top, Description Countertop Weight 45kg Overall Height 367mm Overall Depth 920mm Overall Width 400mm Cooking Zone 2 x Ø270mm 3Ø + N + E Electrical Connection 415VAC / 50Hz / 10.8kW Legend Electrical Connection 2.2.8 CI920GT...
  • Page 13 700/900 2.0 Specification 2.2.9 CI940TT 900 Series Model CI940TT Induction Boiling Top, Description Countertop Weight 75kg Overall Height 367mm Overall Depth 920mm Overall Width 800mm Cooking Zone 4 x Ø270mm 3Ø + N + E Electrical Connection 415VAC / 50Hz / 21.6kW Legend Electrical Connection 2.2.10 CI940GT...
  • Page 14 2.0 Specification 2.2.11 CW940TT 900 Series Model CW920TT Induction Wok, Description Countertop Weight 45kg Overall Height 367mm Overall Depth 920mm Overall Width 400mm Cooking Zone Ø300mm 3Ø + N + E Electrical Connection 415VAC / 50Hz / 5.4kW Legend Electrical Connection 2.2.12 CW940GT 900 Series Model...

  • Page 15: Installation

    700/900 3.0 Installation 3.1 Positioning WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. 3.1.1 General Information • Have a smooth, level floor which can bear the weight of the unit at full load •...
  • Page 16 3.0 Installation 3.2 Line-up Connection WARNING Must be installed only by an authorised service person If the unit is already installed and connected to power, the power to the equipment must be turned off and isolated. FAILURE TO DO SO MAY RESULT IN ELECTRIC SHOCK. •...
  • Page 17 700/900 3.0 Installation • Place the units to be connected next to each other, adjust the legs ensuring the top of the two units sit flush • Using the provided bolts and nuts connect the units at the front and rear •...
  • Page 18 3.0 Installation 3.3 Electrical Connection - Electric Models 3.3.1 Information WARNING This unit must be installed in accordance with AS/NZS 60335.1 Some procedures in this manual require the power to the equipment to be turned off and isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug body.

  • Page 19: Electric Operation

    700/900 4.0 Operation 4.1 Electric Operation WARNING Hot surfaces! DO NOT TOUCH Contact with skin may cause burns 4.1.1 Controller Configuration Control Panel Symbol Description Temperature Range 1 - 6 Green Indicator Light Fig.4. 4.1.2 Operation Place appropriate induction pot/pan on the cooking zone Turn the cooking zone dial to the required setting 1 minimum power, 6 maximum power, the green indicator light will turn on.

  • Page 20: Cleaning And Maintenance

    5.0 Cleaning and Maintenance 5.1 Cleaning 5.1.1 Cleaning Schedule • Daily cleaning is required for the appliance, to help maintain and prolong the appliance efficiency • The appliance should be cleaned at the end of each service period • DO NOT USE: Wire brushes, steel wool/sponges, scrapers or other abrasive materials •...
  • Page 21 700/900 5.0 Cleaning and Maintenance 5.1.6 Cleaning Procedure (Daily) Isolate from the power supply Wipe clean using a clean soft cloth dampened with clean warm water Spray surface with a glass cleaner and wipe dry with paper towel 5.1.7 Cleaning Procedure (Heavy Soiling) Isolate from the power supply For heavy soiling, use a ceramic cooktop cleaner and a non-abrasive sponge Wipe clean using a clean soft cloth dampened with clean warm water...

  • Page 22: Periodic Maintenance

    5.0 Cleaning and Maintenance 5.2 Maintenance WARNING Maintenance tasks MUST BE performed by qualified service people 5.2.1 Periodic Maintenance All controls and mechanical parts of the appliance MUST BE checked and adjusted periodically by a qualified service person. Contact the Stoddart service department to arrange a service Maintenance / Inspections Possible Causes...

  • Page 23: Error Codes

    700/900 5.0 Cleaning and Maintenance 5.2.3 Error Codes Symbol Description Short circuit inductance sensor, induction temperature too low (lower than -50°C) (shown every 5 seconds if the hob is off) Induction temperature too high, temperature sensor off >260°C Pan seek, pan missing or pan too small Incompatible pan, inductance short circuit (μh value too low) Dissipater temperature >...
  • Page 24 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au Service Request www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...

This manual is also suitable for:

900 seriesCi720ttCi720gtCi740ttCi740gtCw720tt ... Show all

Table of Contents
