INSTALLATION / OPERATION / MAINTENANCE
MANUAL
(READ ALL INSTRUCTIONS BEFORE USE)

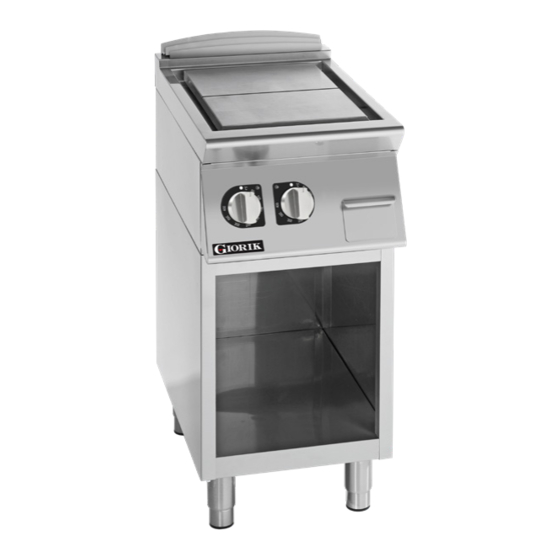

700/900
Target Top
(Gas and Electric)
Models:
700 Series - Gas:
TG720TT / TG720GT
TG740TT / TG740GT / TG740FT
TG74GTLT / TG74GTRT / TG74FTLT / TG74FTRT
TG76GTLT / TG76FTRT / TG76FTLT
900 Series - Gas:
TG920TT / TG920GT
TG940TT / TG940GT / TG940FT
Revision: A - 22/07/2022 - 05
700 Series - Electric:
TE720TT / TE720GT
TE740TT / TE740GT / TE740ET
900 Series - Electric:
TE920GT
TE940TT / TE940GT / TE940ET
