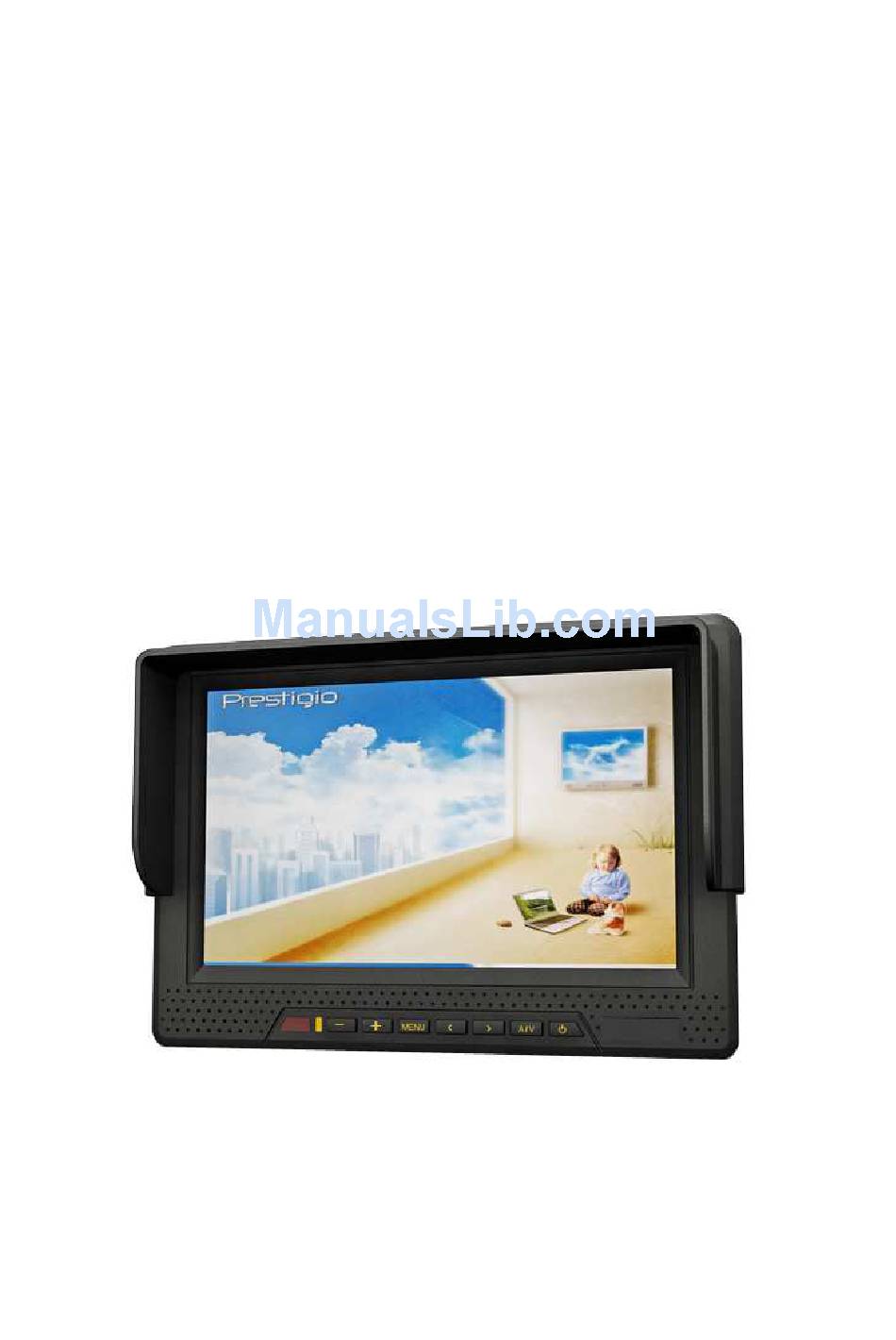

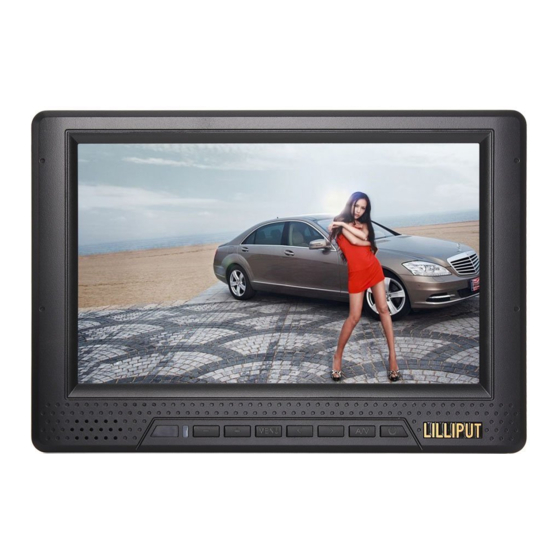

- Page 1 COLOR TFT LCD MONITOR Manual...
- Page 2 DEAR CUSTOMERS Thank you for purchasing the liquid crystal display monitor. This product employs new integrate circuits and high quality TFT LCD modules. It is putting out with its low power consumption, emits no radiation, and other advantage characteristics. This product is shaped with modern style and is easy to be carried with.
-
Page 3: Table Of Contents
CONTENTS 1. PRODUCT DESCRIPTION -------------------- 2. REMOTE CONTROL---------------------------- 3. BATTERY INSTALLATION INSTRUCTION 4. MENU OPERATION ---------------------------- IN YPbPr MODE---------------------------------- IN HDMI MODE---------------------------------- IN AV MODE-------------------------------------- 5. ACCESSORIES ----------------------------------- 6. PARAMETER ------------------------------------- 7. TROUBLESHOOTING -------------------------- 8. REMARK-------------------------------------------... -
Page 4: Product Description
PRODUCT DESCRIPTION... - Page 5 1．Infrared receiving window 2．Battery indicator light 3．-：Volume down or to adjust the value of menu setting function 4．+：Volume up or to adjust the value of menu setting function 5．MENU：To activate OSD menu （ （ （ （ PS: Long press "MENU" button to zoom in or out picture automatically when receiving HDMI signal.) 6．<：Selection key, to select item on the OSD or push the key in PC mode directly to adjust phase automatically...
-
Page 6: Remote Control
15．AV1 signal input 16．AV2 signal input 17．AUDIO signal input 18．Battery control switch 19．DC input 20．HDMI signal input 21．Battery slot 22．Mounting socket (bottom) REMOTE CONTROL 1．MUTE 2．Display Mode：HDMI、YPbPr、VIDEO1、VIDEO2 switch 3． ： Left move， Volume down or to adjust the value of setting function ：Down move, to adjust phase automatically under PC mode 4．... -
Page 7: Battery Installation Instruction
7．MENU ：Right move, Volume up or to adjust the value of setting function 8． BATTERY INSTALLATION INSTRUCTION Open battery cover 1． Battery 2． Please plug power line into main board’s battery socket. 3． Power line... - Page 8 Put the battery into slot when check the electricity. 4． Lock battery cover up to finish installation. 5． Battery control switch...
-
Page 9: Menu Operation
PS: please switch battery control off if non-use for a long-term. MENU OPERATION After connected correctly and then Power on, Press “MENU” on the unit or by remote control to show MENU. IN YPbPr MODE Press “</>”on the unit or “ and it will be highlighted;... -
Page 10: In Hdmi Mode
COLOR TEMPERATURE： K, 7500 K or 9300 Only if under “USER” mode, BLUE to meet the color value you need. LANGUAGE：There are 2 languages provided for choice, English and Japanese MISCELLANEOUS：to select As follows: OSD MISCELLANEOUS OF YPBPR MODE picture over-turn to left or right picture over-turn to up or down mode shift between 4:3 and 16:9 EXIT... - Page 11 Press “</>”on the unit or “ and it will be highlighted; and then press +/ - of the unit or favorite values. BRIGHTNESS: to adjust the luminance of brightness CONTRAST：to adjust the level of contrast SATURATION: to adjust the level of saturation (this function doesn’t work under DVI/HDMI mode) to adjust the hue of image (this function doesn’t work under DVI/HDMI TINT:...
-
Page 12: In Av Mode
picture over-turn to left or right picture over-turn to up or down mode shift between 4:3 and 16:9 EXIT OSD: select “YES” to exit IN AV MODE Press “</>”on the unit or “ and it will be highlighted; and then press +/ - of the unit or favorite values. -
Page 13: Accessories
to adjust the hue of image TINT: SHARPNESS: to adjust the level of sharpness LANGUAGE：There are 2 languages provided for choice, English and Japanese RESET: you can reset adjustment of the unit when click “YES” OSD H-POSITION ADJUSTMENT: direction OSD V-POSITION direction DURATION: to adjust the duration of OSD from5-100seconds. -
Page 14: Parameter
1．2200mAh/7.4V Li-ion battery 2．Remote control 3．Bracket 4．12V 1.5A DC adapter 5．Sun shade 6．Manual 7．Shoe mount (for camera only) (optional) 6. Main Parameter Panel Size Resolution Brightness Contrast Viewing Angle Input Voltage Input Signal Battery Current Standby Current 1piece 1piece 1piece 1piece 1piece 1copy... -
Page 15: Troubleshooting
Power Consumption Input Resistance Input Frequency Audio Output Speaker Size:(LWD) Weight TROUBLE SHOOTING 1. Only black-and-white image Check the level of color saturation and brightness is proper. 2.Power on but no picture Make sure the PC、DVI、VIDEO、HDMI cable is tightly connected exactly correctly Make sure you are using the standard power adapter coming with the monitor.
