Summary of Contents for Lilliput 663/O/P2

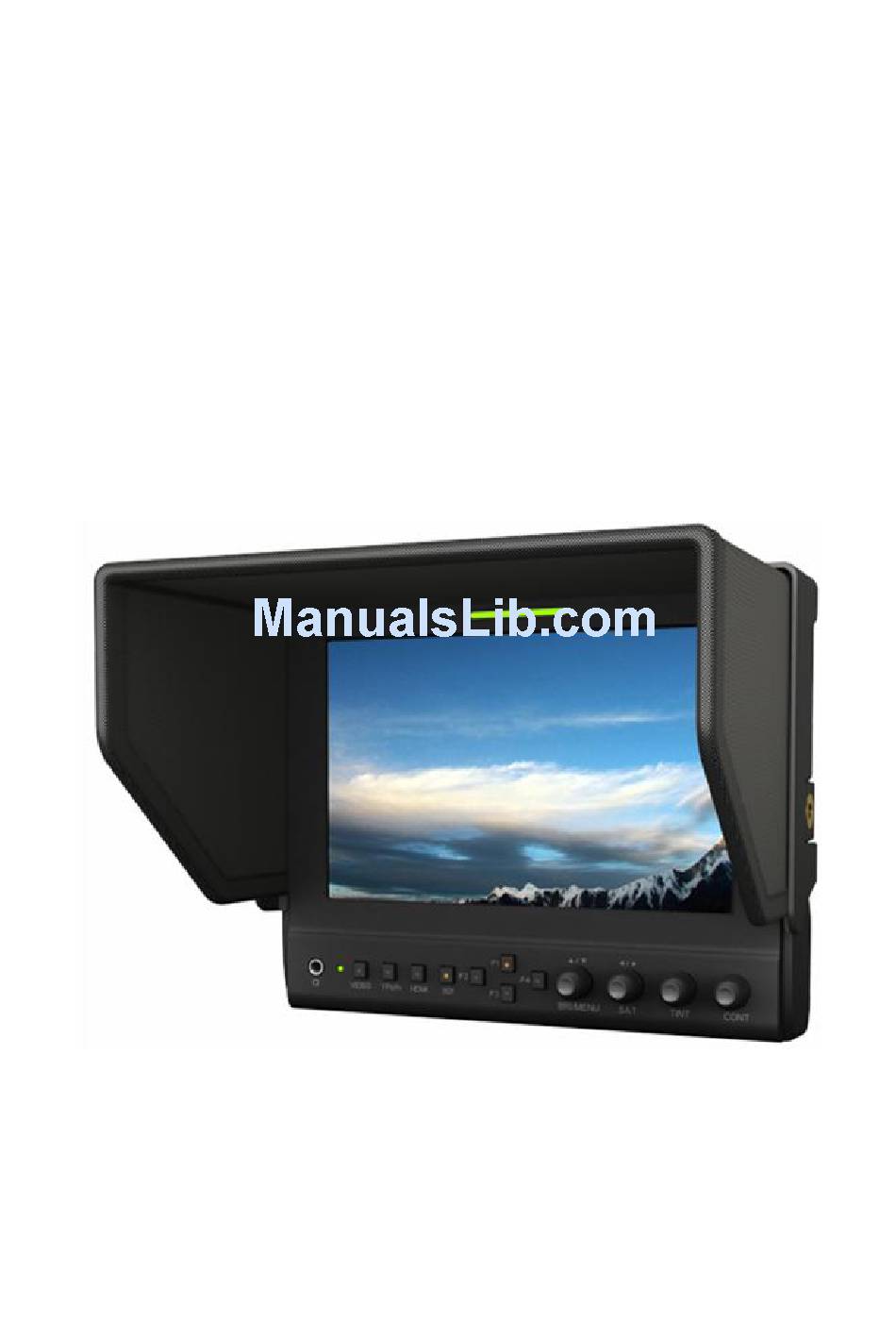

- Page 1 LCD Field Monitor User Manual...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS: Please read manual before using this product. Please keep manual for future reference. Please read the cautions to prevent possible danger and loss of property. Please enjoy the benefits of convenience, safety, and space-saving from this TFT LCD monitor in different ways. - Page 3 Contents PRODUCT DESCRIPTION ---------------------- INSTALLATION OF SUNSHADE COVER AND BATTERY PLATE--------------------------- DV BATTERY MOUNT PLATE----------------- WIRING INSTRUCTIONS----------------------- SETTING MENU ---------------------------------- ACCESSORIES ------------------------------------ PARAMETER -------------------------------------- TROUBLESHOOTING -------------------------- * Advanced functions are only available for product model with"/P2"&"/S2"..
-
Page 4: Product Description
PRODUCT DESCRIPTION 1．TALLY (indicator light). 2．Earphone jack. 3．Power indicator light: ON/OFF (Light turns to red when power on). 4．VIDEO: Indicator lights up when signal switch to video state. 5．YPbPr: Indicator lights up when signal switch to YPbPr state. 6．HDMI: Indicator lights up when signal switch to HDMI state. 7．SDI: Indicator lights up when signal switch to SDI state (optional). -
Page 5: Pin Number
10．Knob SAT: Press the knob to select main MENU options; rotate knob to confirm the selection and adjust parameter values. Default as Saturation function. 11．Knob TINT: Default as Tint function. 12．Knob CONT: Default as Contrast function. ‖” is battery power; “O” is power off; “|” is “... -
Page 6: Installation Of Sunshade Cover
INSTALLATION OF SUNSHADE COVER AND BATTERY PLATE Installation of sunshade cover: ① As shown, buckle the sunshade cover on the device. ② As shown, cover buttoned into the appropriate slot, and fastened in accordance with the order of the both sides. ③... -
Page 7: Dv Battery Mount Plate
DV BATTERY MOUNT PLATE: Standard mounts process Following three types of battery plates are suitable for this device, model F970, QM91D, DU21 & LP-E6 (choose 2 out of 4). MODEL: F-970 MODEL: QM91D MODEL: DU21 MODEL: LP-E6 DV Battery Mount Plate: DV Battery Mount Plate Specification: Model DU21 for battery of Panasonic DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with... -
Page 8: Wiring Instructions
V-mount battery plate (optional): Please refer to GP-L130AB type battery specifications. V-mount Battery Plate Adaptor Panel Anton Bauer mount battery plate (optional): Please refer to GP-L130B type battery specifications. Anton Bauer Mount Battery Plate Adaptor Panel WIRING INSTRUCTIONS Power & TALLY cable 1. -
Page 9: Setting Menu
SETTING MENU Before setting the functions, please make sure the device is connected correctly. When power on, press BRI/MENU knob on the device, function menus will pop-up on the screen. After confirm the option value, then press BRI/MENU knob to return to the previous, and press the BRI/MENU knob again to exit the menu settings. - Page 10 ITEMS OPTIONS Center Marker ON/OFF Aspect Marker OFF, 16:9, 4:3, 14:9, 13:9,15:9,1.85:1, 2.35:1 Screen Markers OFF, 95%,93%,90%,88%,85%, 80% Marker Color Red, Green, Blue, White, Black Marker Mat OFF, 1-6 Thickness ITEMS OPTIONS Language English /Chinese Small, Medium, Large, PBP, POP In small, medium and large interface can adjust the source, position, and swap;...
- Page 11 Function of buttons and knobs can be customized by users’ needs. Functions of F1-F4 buttons can also be customized: Center Marker, Screen Marker, Check Field, Color Bar, Camera, PIP, Image Flip, Zoom, Pixel-to-Pixel, Freeze Input, Underscan, H/V delay * Peaking, False Color, Exposure, Histogram, Level Meter and Wave/Vector. Functions of R1-R4 buttons can also be customized: Contrast, Brightness, Saturation, Tint, Volume, Sharpness and Back Light.
-
Page 12: Standard Accessories
ACCESSORIES: Standard Accessories: 1. Sun Shade Cover 1 Piece 2. Gimbal bracket 1 Piece 3. Battery Plate (F-970/QM91D/DU21/LP-E6) 2 Pieces (Choose 2 out of 4) 4. HDMI A/C cable 1 Piece 5. Power & TALLY cable 1 Piece 6. Shoe Mount (for camera only) 1 Piece 7. -
Page 13: Troubleshooting
PARAMETERS: 7’’ LED backlit Panel Size Resolution 1280× 800 Brightness 400cd/㎡ Contrast 800:1 Viewing Angle 178° / 178° (H/V) Input Voltage DC12V (XLR DC Connection) Input Signal HDMI, YPbPr, AV and 3G-SDI (optional) Current 900mA ≤11W Power Consumption Size:(LWD) 191.5× 152× 31mm/141mm (with cover) Weight 760g / 938g (with cover) / 2160g (with suitcase) TROUBLE SHOOTING...
