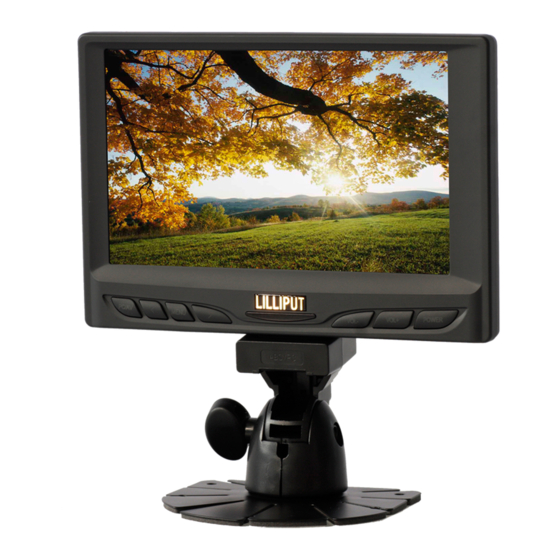

Lilliput 629GL-70NP User Manual
  1. Manuals
  2. Brands
  3. Lilliput Manuals
  4. Monitor
  5. 629GL-70NP
  6. User manual

Lilliput 629GL-70NP User Manual

Lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
DEAR CUSTOMERS
Thank you for purchasing the liquid crystal display monitor. This product
employs new integrate circuits and high quality TFT LCD modules. It is
putting out with its low power consumption, emits no radiation, and other
advantage characteristics. This product is shaped with modern style and is
easy to be carried with. The color TFTLCD is the most suitable display for
VGA,VCD, DVD and GPS system for motorcars and ships
used in the office ,in flat ,at home also in other suitable position.
certainly benefit from this monitor in lots of ways, to name some of them:
convenience, safety, space-saving.
We hope that you will have the enjoyment of your new mini color TFT
LCD.
To ensure the best use of the unit, please read this handbook carefully beforehand.
1. Please use the adapter attached in the accessory.
2. Do not expose this product to direct sunlight, heat or humid
conditions.
3. Keep away from strong light while using this product so as to
obtain the clearest and the most colorful picture.
4. Please avoid heavy impact or drop onto the ground.
5. Do not use chemical solutions to clean this unit. Please simply
wipe with a clean soft cloth to keep the brightness of the surface.
LILLIPUT TFT LCD
629GL-70NP/C/T
CAUTION
.It also can be
You will

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 629GL-70NP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lilliput 629GL-70NP

Summary of Contents for Lilliput 629GL-70NP

  • Page 1 LILLIPUT TFT LCD 629GL-70NP/C/T DEAR CUSTOMERS Thank you for purchasing the liquid crystal display monitor. This product employs new integrate circuits and high quality TFT LCD modules. It is putting out with its low power consumption, emits no radiation, and other advantage characteristics.
  • Page 2 6. If the product does not operate normally when the instructions are followed. Adjust only those controls that are covered by the instructions. Improper adjustment of other controls may result in damage and will often require extensive work of a qualified technician.

  • Page 3: Product Description

    6. ACCESSORIES ------------------------------ 7. PARAMETER -------------------------- 8. TROUBLESHOOTING -----------------------  PRODUCT DESCRIPTION Picture 1 1. PC/AV: PC, AV switch. <: Selection key, to select item on the OSD or push the key in PC mode directly to adjust phase automatically. 3.

  • Page 4: Matched Cables

    : POWER ON/OFF : MUTE : Display inputted mode : To activate OSD menu : Volume down or to adjust the value of setting function : Volume up or to adjust the value of setting function : To select function on OSD : To select function on OSD : AV1, AV2, PC switch : Number key, no use...

  • Page 5: Menu Operation

    1. Black 9-pin jack connect 9-pin plug of picture 3 2. USB end connect the USB port of computer for touch screen function. 3. 15-pin VGA signal input end connect VGA port of the computer  CONNECTION Put the SKS input end of AV cable picture 3 into the AV input jack of the monitor, the other jack of A/V cable should be connected with related signal input as follows 1.

  • Page 6: Brightness Adjustment

    .you can press “</>”on the unit or “ ” on the remote controller to select the item demanded among (in line: brightness ,contrast , saturation, tint , sharpness, language , reset , OSD H- position, OSD V-position ,OSD duration, exit OSD )and the selected item’s background will be yellow and the explanation of the item will display in the window which on the right side of the OSD menu .

  • Page 7: Contrast Adjustment

    CONTRAST ADJUSTMENT After activate MENU press “</>”on the unit or “ ” on the remote controller to select , then you can press Vol+/ Vol- of the unit or adjust the level of contrast .After that press “</>”on the unit or “ ”...

  • Page 8: Sharpness Adjustment

    is to adjust the hue of image .Push Vol+/ Vol- of the unit or on the remote controller to adjust the hue of image as your desire after you selected this object. Then press “</>”on the unit or “ ” on the remote controller to select other item to adjust or to select to exit the OSD.

  • Page 9: Osd Position Adjustment

    Deutsch, Espanol, Italiano, Nederland, Portuguese and Chinese. Push “</>”on the unit or “ ” on the remote controller to choose and then press Vol+/ Vol- of the unit or on the remote controller to select the langue that you need. Then press “</>”on the unit or “ ”...

  • Page 10: Osd Duration

    right, Vol-/ is to make the OSD move to left. After that press “</>”on the unit or “ ” on the remote controller to select other item to adjust or to select to exit the OSD. To adjust the OSD position in vertical direction you can select next item and operate as follows, is to adjust the OSD position in vertical direction, press “</>”on the unit or “...
  • Page 11 After adjustment press “</>”on the unit or “ ” on the remote controller to choose and then push Vol+/Vol- of the unit or on the remote controller to select “YES“ and it will exit the OSD. IN PC MODE: You can press “</>”on the unit or “ ”...

  • Page 12: Phase Adjustment

    Press “</>”on the unit or “ ” on the remote controller to select and then press Vol+/ Vol- of the unit or to adjust the luminance of BRIGHTNESS as your desire. Then press “</>”on the unit or “ ” on the remote controller to select other item to adjust or to select to exit the OSD.

  • Page 13: Clock Adjustment

    push Vol+/ Vol- of the unit or on the remote controller to adjust the beginning point and terminal point of image station. After adjustment select to exit the OSD or select other item to adjust. CLOCK ADJUSTMENT is to adjust the range of image station .Push Vol+/ Vol- of the unit or on the remote controller to adjust the range of image as your desire after you selected this object.
  • Page 14 and operate as follows, is to adjust the OSD position in vertical direction, press “</>”on the unit or “ ” on the remote controller to select this item, then push Vol+/ Vol- of the unit or on the remote controller and the OSD will move in vertical direction as your operation.
  • Page 15 temperature that wants the options “USER" then can adjust RED, GREEN and BLUE at will. With attain which want of the color value Then you can adjust the color temperature of OSD by pressing Vol+/Vol- of the unit or on the remote controller. Push Vol+/ or Vol-/ select which you want.
  • Page 16 then press Vol+/ Vol- of the unit or on the remote controller to select the langue that you need. Then press “</>”on the unit or “ ” on the remote controller to select other item to adjust or to select to exit the OSD.
  • Page 17 right, Vol-/ is to make the OSD move to left. After that press “</>”on the unit or “ ” on the remote controller to select other item to adjust or to select to exit the OSD. To adjust the OSD position in vertical direction you can select next item and operate as follows, is to adjust the OSD position in vertical direction, press “</>”on the unit or “...
  • Page 18 To adjust the saturation of image, press “</>”on the unit or “ ” on the remote controller to select , then push Vol+/ Vol- of the unit or the remote controller to adjust the level of saturation. After adjustment select to exit the OSD or select other item to adjust.

  • Page 19: Troubleshooting

    VGA 9-pin cable 1 piece Remote controller 1piece Drive disk 1piece (For touch screen) Manual 1copy  PARAMETER PANEL TFT LCD 177mm (7-inch)1152000 Pixels HIGH RESOLUTION 800×480 (VGA) AVERAGE BRIGHTNESS 240cd/㎡(For touch screen) VIEWING ANGLE 140°/ 120°(Horizontal/Vertical) COLOR SYSTEM PAL-4.43,NTSC-3.58 INPUT VOLTAGE DC 12V INPUT SIGNAL...
