Page 1: User Manual
COLOR TFT LCD MONITOR User Manual... -
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS: Please read manual before using this product. Please keep manual for future reference. Please read the cautions to prevent possible danger and loss of property Please enjoy the benefits of convenience, safety, and space-saving from this TFT LCD monitor in different ways. -
Page 3: Table Of Contents
Contents 1. PRODUCT DESCRIPTION ................3 2. WIRELESS HD TRANSMITTER ............... 5 3. WHDI REMOTE CONTROL ................5 4. WHDI FUNCTION ....................6 5. INSTALLATION OF SUNSHADE COVER AND BATTERY PLATE ... 8 6. DV BATTERY MOUNT PLATE ................9 7. -

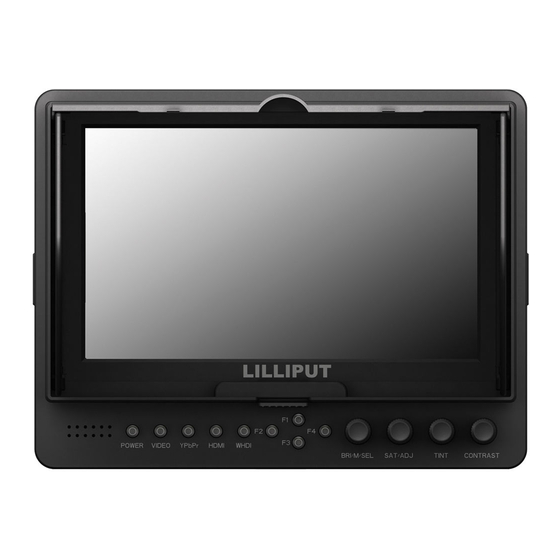

Page 4: Product Description
1. PRODUCT DESCRIPTION 1．Speaker. 2．POWER：ON/OFF (Light turns to red when power on). 3．VIDEO: Indicator lights up when signal switch to video state. 4．YPbPr: Indicator lights up when signal switch to YPbPr state. 5．HDMI: Indicator lights up when signal switch to HDMI state. 6．WHDI: Indicator lights up when signal switch to WHDI state. - Page 5 1. Video signal output / input. 2. Audio signal input. 3. HDMI signal output (Optional) / input. 4. YPbPr signal input 5 Mini USB input. (Only for program upgrades, do NOT use if non-professionals) 6. Power cable interface (connecting to the battery plate). 7.
-
Page 6: Wireless Hd Transmitter
2. WIRELESS HD TRANSMITTER 1. Code key. 2. Network indicating light. 3. Video indicator. 4. HDMI interface (connect with HDMI device). 5. Mini USB port (connect with power). 3. WHDI REMOTE CONTROL * Option for product model with"/P" only. -
Page 7: Whdi Function
4. WHDI FUNCTION 1. Connect WHDI transmitter with computer or camcorder via HDMI interface, display as below. EXIT button on remote control to activate “Select Video 2. Press the Source” function, and the transmitter matched will be displayed as follows. * Option for product model with"/P"... - Page 8 3. Press the ADD button on remote control to activate registration function as follows. 4. Then long press Code key on WHDI transmitter to activate connecting interface as follows. 5. Waiting for connection completed. * Option for product model with"/P" only.
-
Page 9: Installation Of Sunshade Cover And Battery Plate
5. INSTALLATION SUNSHADE COVER AND BATTERY PLATE Installation of sunshade cover： Disassembly of sunshade cover： Installation steps Installation completed Disassembly steps Disassembly completed Steps of sunshade cover on / off: Please follow the instructions steps, or may damage the cover. Open Step: Closed steps: Do not press the edge in the under of the cover, otherwise it will... -
Page 10: Dv Battery Mount Plate
6. DV BATTERY MOUNT PLATE Standard mounts process Following three types of battery plates are suitable for this device, model F970, QM91D, DU21 & LP-E6 (choose 2 out of 4). MODEL: F-970 MODEL: QM91D MODEL: DU21 MODEL: LP-E6 DV Battery Mount Plate: DV Battery Mount Plate Specification: Model DU21 for battery of Panasonic DV: NV-GS/PV-GS/DZ-MV/GS/H28/H258/H288GK series, comply with... -
Page 11: Setting Menu
V-mount battery plate (optional): Please refer to GP-L130AB type battery specifications. Anton Bauer mount battery plate (optional): Please refer to GP-L130B type battery specifications. 7. SETTING MENU Before setting the functions, please make sure the device is connected correctly. When power on, press BRI/M/SEL knob on the device, function menus will pop-up on the screen. - Page 12 ITEMS OPTIONS Color Temp 6500º K/7500 º K/9300 º K/User Note: Only available under “User” mode to Green meet the color value Blue you need. Check Field OFF，MONO，Red, Green and Blue Aspect Ratio Full Screen,4:3 and 16:9 Pixel-to-Pixel ON/OFF Camera 480P /1080I (5DII Mode)
- Page 13 Assistant Manual/Auto Func. Manufacturer OK/Cancel(Reverse the SAT / A Default DJ knob to select "OK") For program upgrades (Please reboot your computer if press accidentally!) Function of buttons and knobs can be customized by users’ needs. Functions of F1-F4 buttons can also be customized: ·...
-
Page 14: Accessories
8. ACCESSORIES Standard accessories: 1. Flexible Folding Sun Shade Cover 1 piece 2.WHDI Accessories 1 pair 3. Battery Plate 2 pieces (2 out of 4) 3. Manual 1 copy 4. HDMI Type A-C 1 piece 5. DC Adapter 1 piece Optional accessories 1. -
Page 15: Trouble Shooting
10. TROUBLE SHOOTING 1. Only black-and-white display: Check whether the color saturation is properly setup. 2. Power on but no pictures: Check whether the cables of Video, HDMI, YPbPr and WHDI are correctly connected. Please use the standard power adapter coming with the product package.
