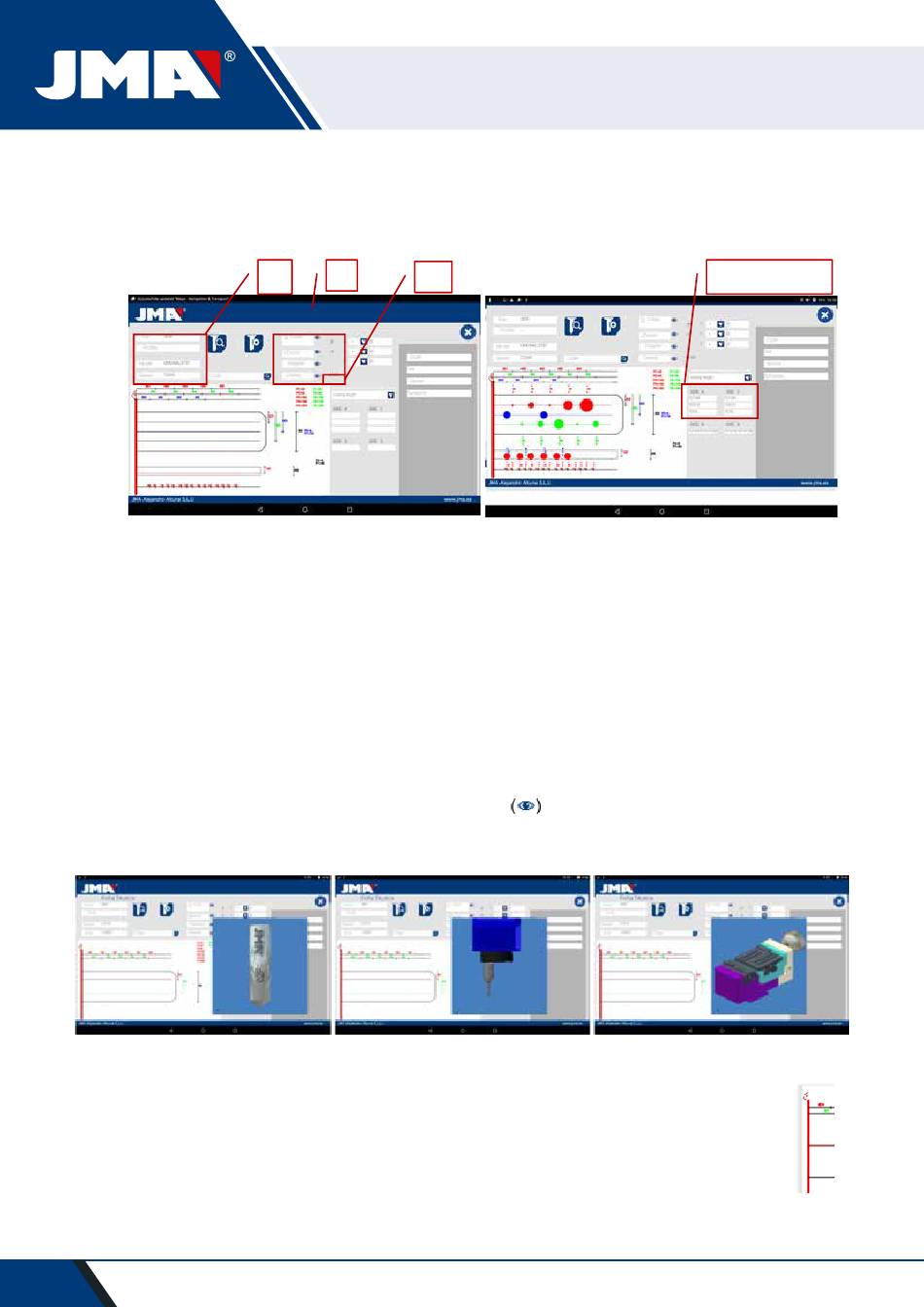

Once we have entered into the file we can see the data of the key In this case we have a key with 3 axes on face A/C
and another axis on the lateral Face B/D.
On one hand we have the information part (I) related to the key, the name of the file, series, the blank key that in this
case is ORIGINAL.
On the other hand, we have the biting code introduced
FACE A:
FACE B:
Axis 1: 1010101010
On another hand, we have essential information (J) about the cutter, feeler and jaw for this key, initially they are the
standards already set in the machine. Clicking on the icon to view
Cutter 2F
To remove the pre-visualization of each element, click on the image again.
Where and how to attach the key?
In jaw (see reference M in the drawing above) gives us another two details, on one hand the jaw which is
where the key is attached and on the other side of the jaw (take into account that the clamps are reversible,
A1 is one side of the clamp and A2 is the opposite side, any change of face will require an adjustment of
the jaw and the 1P reader sp that machine is well adjusted).
44
I J
Axis 1:1234
Axis 2: 12312
Axis 3: 1010
M
we will have an image of each element.
Feeler-1P
Biting Box
!
JawA1 B1
