6.1 ACCESS TO THE REAR PART

To have access to the rear part, you should do the following:
1) Switch the machine off using the emergency stop and disconnect the cable from the power supply.
2) Remove the Tablet from the support.

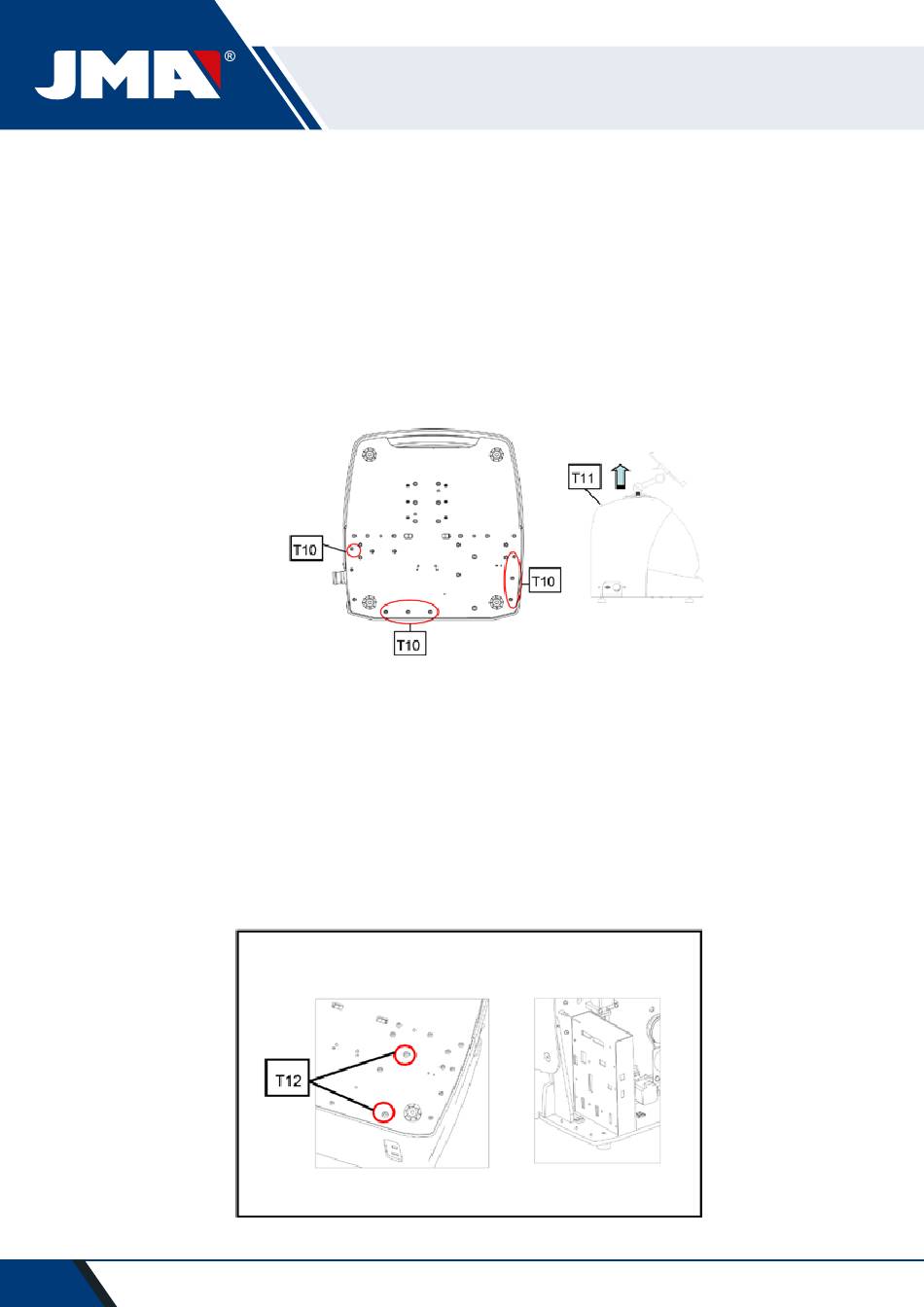

3) Release 7 screws (T10) with a 3mm Allen key (Fig. 28)
NOTE: Do not touch the zinc-plated screws)
4) Remove the rear guard (T11) moving it upwards.

6.2 CONTROL REPLACEMENT

To replace the control, follow these steps:
1) Remover the rear guard. (See 6.1)
2) Remove the cables connected to the control.
3) Release the two screws (T12) with a 5mm Allen key (Fig. 29)
4) Replace the control.
5) Re-assemble all the components again.
24
FIG. 28
FIG. 29
