3.2

Environment Setup

3.2.1 Hardware Setup
3.2.1.1 EVB V2.0
User needs to connect CON3 to user's PC via a Micro USB cable. Add jumpers for J34 and J33 (J33 is for log UART which has two
jumpers) if there is no connection.
3.2.2 Software Setup

Environment Requirements: EX. WinXP, Win 7 Above, Microsoft .NET Framework 3.5

AmebaZII_PGTool_v1.0.1.exe
Application Note

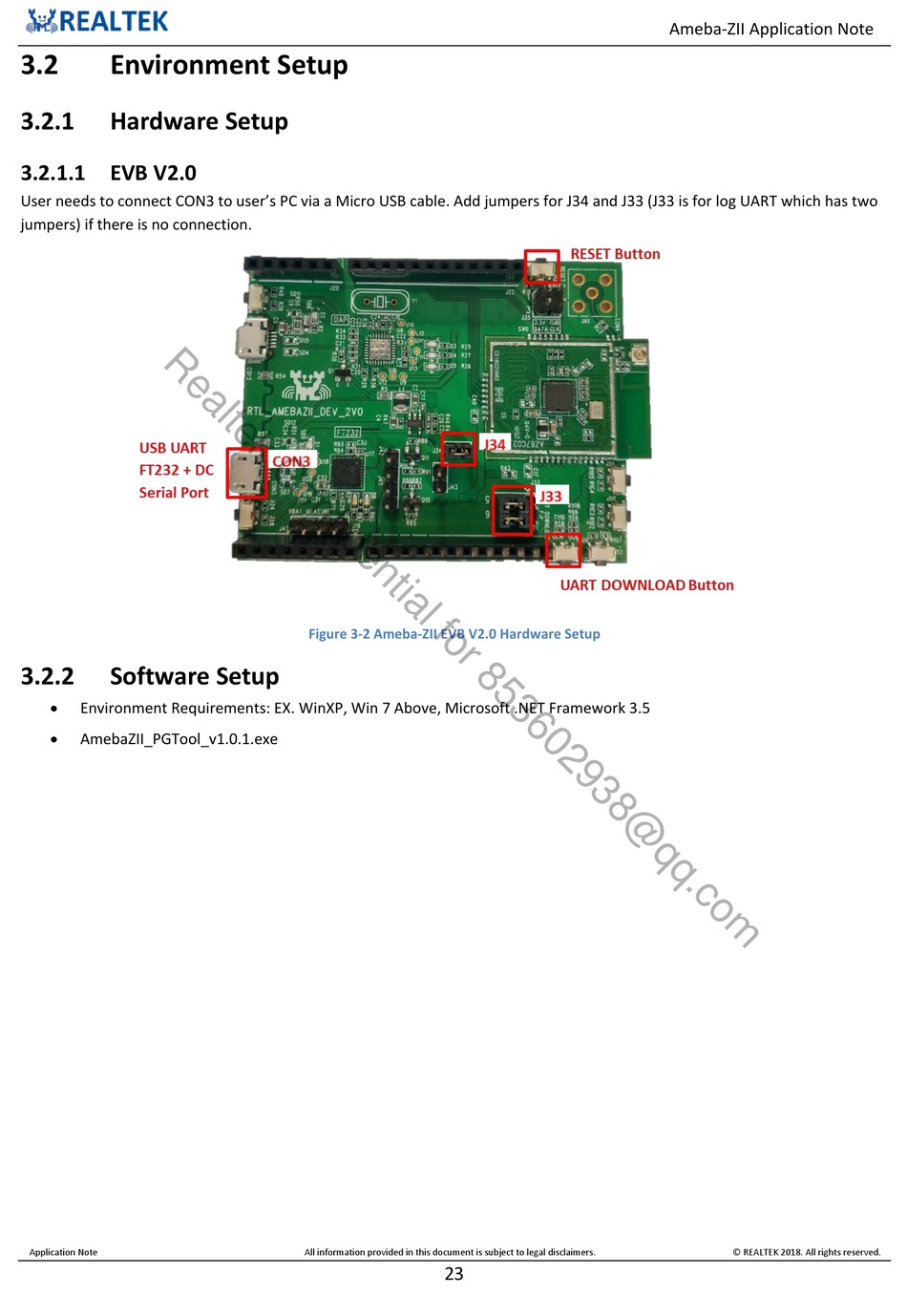

Figure 3-2 Ameba-ZII EVB V2.0 Hardware Setup
