Realtek Ameba-ZII DEV User Manual page 16

2.3.2.1.3 Download
After a successfully compilation and 'flash_is.bin' is generated without error, user can either
1) Directly download the image binary on to demo board from IAR IDE (as below)
Note: Please make the project first when some code is modified before download the bin file on the board, otherwise the
download will fail and below logs will be shown.
2) Or using the PG tool for Ameba-ZII (Will not be shown here, please check chapter 3 for details).
Application Note

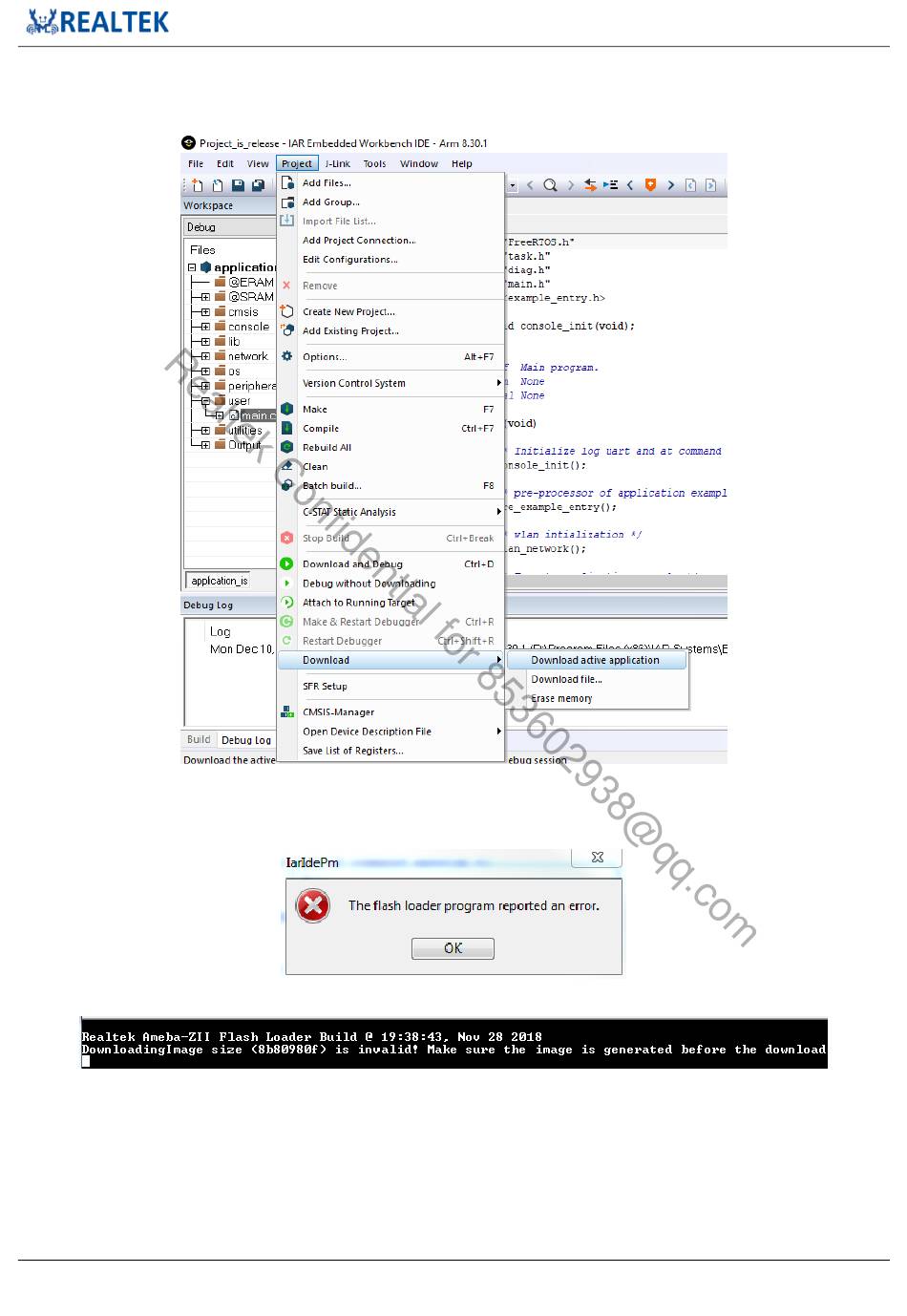

Figure 2-7 IAR download binary on flash
Figure 2-8 IAR download code on flash error message on IDE
Figure 2-9 IAR download code on flash error message on Log UART
All information provided in this document is subject to legal disclaimers.
16
Ameba-ZII Application Note
© REALTEK 2018. All rights reserved.
