2.2
Log UART Settings
To be able to start development with the demo board, Log UART must be connected properly.
Different versions of EVBs have different connections.
2.2.1
EVB v2.0
By default, UART2 (GPIOA_15 / GPIOA_16, c heck figure 1-3) is used as system log UART. User needs to connect jumpers to J33
for CON3 (FT232) or CON2 (DAP).
1) Connection to log UART via FT232 (CON3):
Application Note

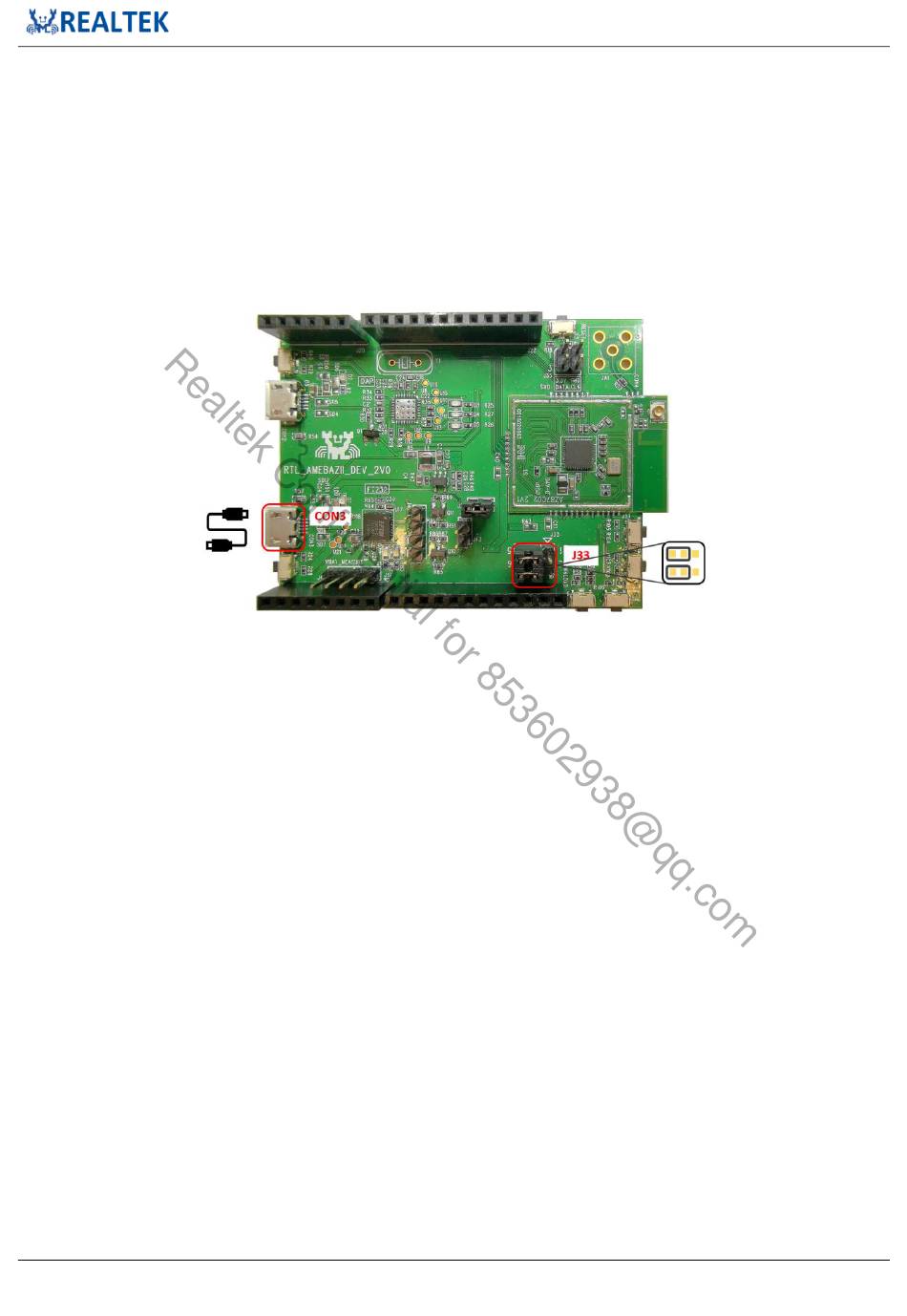

Figure 2-2 Log UART via FT232 on EVB V2.0
All information provided in this document is subject to legal disclaimers.
14
Ameba-ZII Application Note
© REALTEK 2018. All rights reserved.
