SDK Build Environment Setup

2.1

Debugger Settings

To download code or debug on Ameba-ZII, user needs to make sure the debugger is setup properly.
Ameba-ZII supports J-Link for code download and entering debugger mode. The settings are described below.
2.1.1

J-Link Debugger

2.1.1.1 Connection
Ameba-ZII supports J-Link debugger. you need to connect the Serial Wire Debug (SWD) connector of Ameba-ZII to J-Link
debugger as shown below and then connect J-Link to PC. You can refer to section 1.2.2 for SWD pin definitions.
Note:
1. To be able to debugger Ameba-ZII which is powered by Cortex-M33, user needs a J-Link debugger with the latest
hardware version (Check
2.1.1.2 Setups on Windows OS
To be able to use J-Link debugger, you need to firstly install J-Link GDB server.
Please check http://www.segger.com and download "J-Link Software and Documentation Pack"
(https://www.segger.com/downloads/jlink).
Note: To support TrustZone feature, it's better to download the latest version of J-Link Software. Version 6.40 is used to
prepare this document.
The process of is as follows:
1. Install J-Link GDB server.
Please check http://www.segger.com and download "J-Link Software and Documentation Pack"
(https://www.segger.com/downloads/jlink).
Application Note

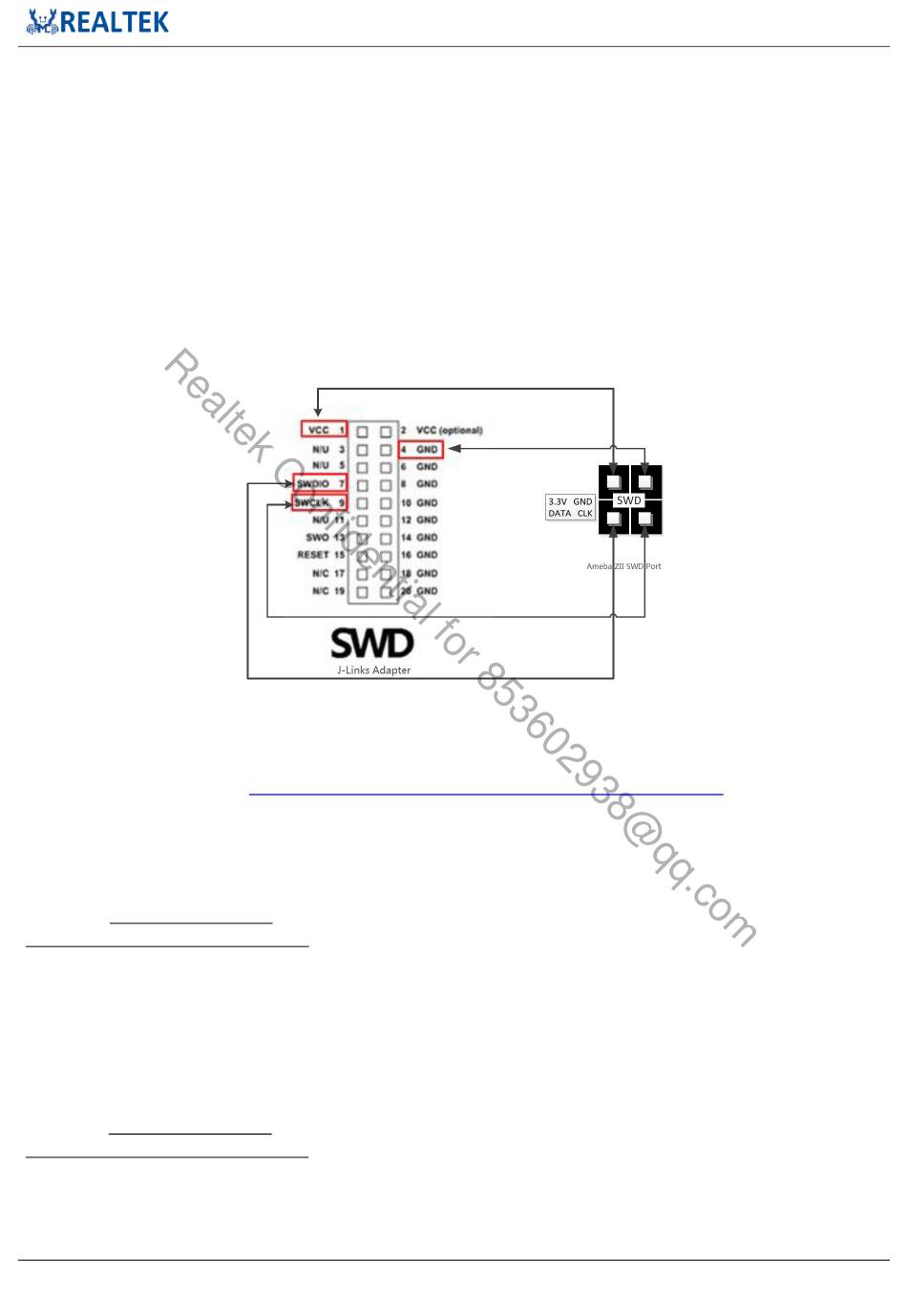

Figure 2-1 Connection between J-Link Adapterand Ameba-ZII SWD connector
https://wiki.segger.com/Software_and_Hardware_Features_Overview
