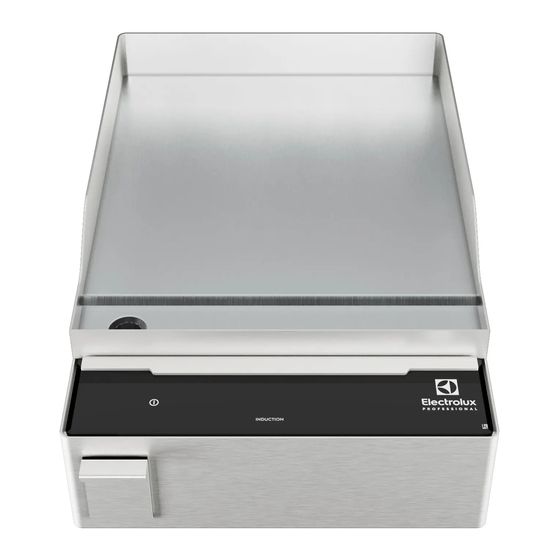

Induction hob, wok and griddle
Table of Contents

Advertisement

Induction Hob, Wok and
Griddle
LIBERO LINE
EN
Installation and operating manual *
595J07T01- 2021.11
*Original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIBERO E1IREEOMCS and is the answer not in the manual?

Questions and answers

Summary of Contents for Electrolux Professional LIBERO E1IREEOMCS

  • Page 1 Induction Hob, Wok and Griddle LIBERO LINE Installation and operating manual * 595J07T01- 2021.11 *Original instructions...
  • Page 2 Foreword Read the following instructions, including the warranty terms before installing and using the appliance. Visit our website www.electroluxprofessional.com and open the Support section to: Register your product Get hints & tips of your product, service and repair information The installation, use and maintenance manual (hereinafter Manual) provides the user with information necessary for correct and safe use of the appliance.
  • Page 3: Table Of Contents

    Contents A WARNING AND SAFETY INFORMATION....................5 General information ........................5 Personal protection equipment ......................6 General safety ..........................6 Induction general safety ......................... 7 Protection devices installed on the appliance ..................8 Safety signs to be placed on the appliance or near its area ..............8 Reasonably foreseeable improper use ....................
  • Page 4 Cooking advice .......................... 22 H APPLIANCE CLEANING AND MAINTENANCE..................22 Ordinary maintenance ......................... 22 H.1.1 Care information ....................... 22 H.1.2 Cleaning the appliance and accessories ................22 H.1.3 Care of the unit – Daily ...................... 22 H.1.4 Care of the unit – Monthly ....................23 H.1.5 Periods of non-use ......................
  • Page 5: Awarning And Safety Information

    WARNING AND SAFETY INFORMATION General information To ensure safe use of the appliance and a proper understanding of the manual it is necessary to be familiar with the terms and typographical conventions used in the documentation. The following symbols are used in the manual to indicate and identify the various types of hazards: WARNING Danger for the health and safety of operators.
  • Page 6: Personal Protection Equipment

    Personal protection equipment Summary table of the Personal Protection Equipment (PPE) to be used during the various stages of the appliance's service life. Stage Protective Safety Gloves Glasses Safety garments footwear helmet ● ○ ○ — — Transport — ● ○...
  • Page 7: Induction General Safety

    Disconnect the appliance from the power supply before carrying out any installation, assembly, cleaning or maintenance procedure. • Do not remove, tamper with or make illegible the marking and safety, danger and instruction signs and labels on the appliance. • The A-weighted emission sound pressure level does not exceed 70 dB(A). •...
  • Page 8: Protection Devices Installed On The Appliance

    • Anyone fitted with a pacemaker or other metal implants can suffer life-threatening injuries when using induction appliances. Ask the manufacturer of your implant or consult your doctor about possible risks before using the cooker. • Every kind of objects that react to magnetisation (e. g. credit cards, telephone cards, etc.) must not be placed near or above the glass-ceramic top.
  • Page 9: Reasonably Foreseeable Improper Use

    Danger Meaning risk of electromagnetic fields Access forbidden to wearers of electrical stimulator (pacemakers) Reasonably foreseeable improper use Improper use is any use different from that specified in this manual. During appliance operation, other types of work or activities deemed improper and that in general can involve risks for the safety of operators and damage to the appliance are not allowed.
  • Page 10: Transport, Handling And Storage

    Residual risk Description of hazardous situation Slipping or falling The operator can slip due to water, any liquid or dirt on the floor Burns/abrasions (e.g. heating The operator deliberately or unintentionally touches some components inside the appliance without elements, cold pan, cooling circuit plates and pipes) using protective gloves.
  • Page 11: Electrical Connection

    • Do not spray water or use water jets, steam cleaner or high pressure cleaner. A.15 Preventive Maintenance In order to ensure the safety and performance of your equipment, it is recommended that service is undertaken by Electrolux Professional authorised engineers every 12 months, in...
  • Page 12: Parts And Accessories

    Electrolux Professional Service Manuals. Please contact your local Electrolux Professional Service Centre for further details. A.16 Parts and accessories Use only original accessories and/or spare parts. Failure to use original accessories and/or spare parts will invalidate the original manufacturer warranty and may render the appliance not compliant with the safety standard.
  • Page 13 Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions. Check on Electrolux Professional website the list of authorized customer care.
  • Page 14: Ctechnical Data

    TECHNICAL DATA Dataplate position IMPORTANT This instruction manual contains information relevant to various appliances. See the dataplate located under the control panel to identify the appliance (see fig. below). ELECTROLUX PROFESSIONNEL SAS ZI du Mont F23200 AUBUSSON MADE IN FRANCE Type : Model : IMPORTANT...
  • Page 15: How To Interpret The Family Type

    How to interpret the family Type 2 - Function Type Flat The factory description on the data plate has the following meaning: Fry Top ELECTROLUX PROFESSIONNEL SAS 3 - Size / zones ZI du Mont F23200 AUBUSSON ELECTROLUX PROFESSIONNEL SAS ZI du Mont F23200 AUBUSSON MADE IN FRANCE Single zone...
  • Page 16: Dgeneral Information

    The drawings and diagrams given in the manual are not in Manufacturer Electrolux Professional SpA or any other scale. They supplement the written information with an outline, service centre authorised by Electrolux but are not intended to be a detailed representation of the Professional SpA.
  • Page 17: Disposal Of Packing

    Disposal of packing • unauthorized modifications or operations; • missing, lack or inadequate maintenance; The packing must be disposed of in compliance with the • improper appliance use; current regulations in the country where the appliance is used. All the packing materials are environmentally friendly. •...
  • Page 18: Circuit Breaker

    “EQ“ (see “Installation diagram“) indicated by the symbol E.4.2 Circuit breaker Verify that a safety circuit breaker is installed between the power cable of the appliance and the mains electric line. The contact opening max. distance and leakage current must comply with the local safety regulations.
  • Page 19: Lamp Test

    7. excellent uniformity; G.1.2 Induction griddle 8. easy cleaning of the glass ceramic hotplate / griddle- Induction griddle is a versatile tabletop appliance to cook and plated . roast meat, sausauges, hamburgers, poultry fish (in tin foil), food in breadcrumbs, eggs, vegetables, etc; IMPORTANT The smooth griddle is available in single (half module) or Do not cover the display with any kind of hot pot,...
  • Page 20: Induction Griddle Use

    Induction wok / hob display functions INDUCTION WOK / HOB SINGLE ZONE DISPLAY INDUCTION HOB DOUBLE ZONE DISPLAY BUTTON SENSOR FUNCTION EXPLANATORY NOTES Hob / wok is activated/deactivated ON/OFF 1 — Lock function prevent to change settings Lock function 2 — accidentally Automatic regulation of the mobile coun- IR communication between appliances...
  • Page 21: Hob To Hood (Only With Coupled Libero Point Appliances)

    Merged zones mode G.3.4 Lock It is possible to lock the control panel while the cooking zones • Pressing the button : the cooking zones will be merged are in operation, in order to prevent accidental changes of the and will be operable through the left side hand touch panel power level.
  • Page 22: Cooking Advice

    Cooking advice • It is advisable to use pots specially designed for induction, and in particular multilayer-type pots. • Never allow two or more pots to touch on the top when • Use pots with bottom in iron, iron plate, enamelled iron, cast switched on.
  • Page 23: Care Of The Unit - Monthly

    Operations to be carried out only by trained • Rinse with a wet cloth and dry thoroughly after cleaning. personnel. To avoid decreases in performance, Electrolux Professional Ceramic – glass surfaces suggest to clean the filters at the end of all month’s work, •...
  • Page 24: Repair And Extraordinary Maintenance

    Repair and extraordinary maintenance • Check and clean the discharge system. NOTE! IMPORTANT Repair and extraordinary maintenance have to be In particular conditions (e. g. intensive use of the carried out by specialised authorised personnel, appliance, salty environment, etc.) the above who can ask the manufacturer to supply a service cleaning should be more frequent.
  • Page 25: Itroubleshooting

    Decommissioning • All scrapping operations must occur with the machine stopped and cold and the electrical power supply disconnected; • Work on the electrical equipment must only be carried out by a qualified electrician, with the power supply disconnected; • To carry out these operations it is necessary to use: overalls, safety shoes and gloves; •...
  • Page 26: Inefficiencies Detected During Cooking

    Communication stop Switch OFF/ON. If the error persists call serv- ice. However, with double zone Frytop E821/E822 appliances it is possible to work with the non- affected zone. Communication stop See E821/E822. E831/E832 Poor cookingpower Dirty filter Clean air filters (see point 3 on the front page). Dirty hand/fingers/glove Clean the interface with a paper towel, clean your hands and fingers and / or change the...
  • Page 28 Electrolux Professional SPA Viale Treviso 15 33170 Pordenone www.electroluxprofessional.com...
