- Page 1 Operating and installation instructions (Translation of the original operating instructions) DOC no. 87.8021.01 - EN Edition 4 (01-2020) Pro Thermetic TILTING BOILING PAN PBOT MODEL Gas powered │ PBOT-G...
-
Page 2: Table Of Contents
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G CONTENT OVERVIEW CONTENT OVERVIEW ......................2 FOREWORD ........................4 1. GENERAL INFORMATION ....................5 INTRODUCTION ....................5 IDENTIFYING YOUR COOKING APPLIANCE .............5 1.2.1 Cooking appliance identification plate ..............5 1.2.2 Pressure tank identification plate ................5 1.2.3 Meaning of the identification plate fields ..............5 LIABILITY .......................6... - Page 3 Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G CONTENT OVERVIEW ASSEMBLY AND SET UP .................. 22 4.6.1 Floor installation: free-standing or standing against a wall ....... 22 4.6.2 Wall installation: wall-mounted ................23 ASSEMBLING APPLIANCE GROUPS .............. 24 GAS CONNECTION ...................
-
Page 4: Foreword
Should you have any doubts or uncertainties concerning the use of the machine or cooking appliance after reading the operating and installation instructions, please contact Electrolux Professional or your closest customer service centre who will gladly assist you to optimise the performance of the appliance. -
Page 5: General Information
(Q) Water protection class CE ....... (R) CE mark Xxx ......(S) Country specification Cat......(T) Gas category P mbar ......(U) Gas pressure ELX ......(V) Manufacturer: Electrolux Professional AG Allmendstrasse 28 CH-6210 Sursee (Switzerland) EN │ 01-2020 87.8021.01... -
Page 6: Liability
Electrolux Professional shall bear no responsibility for any inaccuracies in the operating instructions and installation instructions that are due to printing or translation errors. -
Page 7: Operator's Obligations
Responsibility for and guarantee of the permanent correct operation of all safety-related components lie with the responsible manager. The correct operation of safety-related components (→see 1.4.7) must be tested at least once each calendar year by Electrolux Professional authorised specialist engineers and replaced if necessary. -
Page 8: Handling Industrial Cooking Appliances
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G The safety valve represents the final safety mechanism for the boiling pan. It must be able to prevent an impermissible excess pressure in the boiling pan’s dual casing even when all other upstream regulating devices, control devices and monitoring devices fail. -
Page 9: Customer Services, Service, Repair And Maintenance Work
Customer services, service, repair and maintenance work Service, repair and maintenance work must only be carried out by Electrolux Professional or Electrolux partner dealers. Country-specific and local regulations apply. This applies in particular to safety and regulatory installations. A service contract is therefore recommended. -
Page 10: Cleaning
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G CLEANING 1.6.1 Suitable cleaning products For environmental protection reasons it is recommended that the appliance is cleaned only with products which are more than 90% biologically degradable. ... -
Page 11: Transport, Handling And Storage
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G TRANSPORT, HANDLING AND STORAGE 1.7.1 Introduction Appliances must be transported (i.e. moved from one place to another) and handled (i.e. moved within the company premises) using lifting devices with a suitable load-bearing capacity. The appliance can be transported by truck, train, ship or aircraft. -

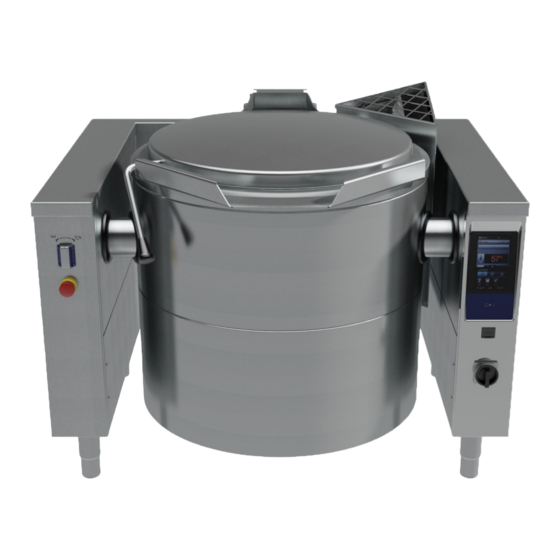

Page 12: Appliance Functions And Equipment
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G APPLIANCE FUNCTIONS AND EQUIPMENT OVERVIEW Panel TOUCH control unit controls USB connection Main switch (accessory) Boiling pan Flue for combustion gases Tilt function handle APPLIANCE FUNCTION The tilting cooking pan is used to boil, saute, braise, poach and steam all types of food. The food is heated evenly be saturated steam in the dual casing which is on top of the gas burner system. -
Page 13: Brief Description Of The Most Important Working Parts
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G 2.3.1 Brief description of the most important working parts The electronic TOUCH control is used to operate the boiling pan. The safety thermostat is used to protect from overheating in the dual casing. Food sensor is used to check the precise temperature of the required cooking processes. -
Page 14: Technical Specifications
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G SPECIFICATIONS VALIDITY AND IDENTIFICATION This document deals with the following appliance model types in the Pro Thermetic tilting boiling pan product range with the following names (can be found on the identification plate, →for this see Section 1 "General information"): Gas powered PBOT06G PBOT10G... -
Page 15: Technical Details
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G TECHNICAL DETAILS 3.6.1 Sub-systems PBOT06G PBOT10G PBOT15G PBOT30G PBOT40G PBOT50G Dual casing: Water capacity in dm litres Volume in dm Max. operating pressure 1.5 bar Max. permissible pressure 1.7 bar General appliance information:... -
Page 16: Installation And Assembly
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G INSTALLATION & ASSEMBLY DIMENSION DRAWINGS FOR FLOOR AND WALL INSTALLATION 4.1.1 Appliances installed on the floor and against a wall PBOT 60lt. 100lt. 150lt. 300lt. 400lt. 500lt Depth 1000 1000 1000... -
Page 17: Wall Mounted Appliances
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G 4.1.2 Wall mounted appliances PBOT 60lt. 100lt. 150lt. 200lt. 300lt. Depth 1000 1000 1000 1100 1200 1300 1400 1500 1073 1124 1265 1335 1360 1008 1060 1190 1234 1278 1147 1169... -
Page 18: Installation Diagrams And Connections
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G INSTALLATION DIAGRAMS AND CONNECTIONS 4.2.1 Appliances installed on the floor and against a wall Electrical connection Gas connection (Customer's supply pipe: Natural gas/ town gas = 1“ DN25) Hot water inlet (G 1/2", NW15) Cold water inlet (G 1/2", NW15) Floor attachment points... -
Page 19: Wall Mounted Appliances
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G 4.2.2 Wall mounted appliances Electrical connection Gas connection (Customer's supply pipe: Natural gas/ town gas = 1" DN25) Hot water inlet (G 1/2", NW15) Cold water inlet (G 1/2", NW15) Wall attachment points PBOT 60lt. -
Page 20: Floor Outlet And Gutters
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G FLOOR OUTLET AND GUTTERS Tilting models are fitted with a loose grate and floor outlet in the base tray near the water outlet. These help drain away the water when the appliance is cleaned. The base trays can be designed for a single appliance or for a whole group of appliances. -
Page 21: Access To The Inside Of The Appliance
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G ACCESS TO THE INSIDE OF THE APPLIANCE 4.5.1 Removing the panel front (F): Remove the screws (S1) on the bottom of the panel front (F). Pull on the underside to remove the control panel (F) and pull it downwards and out of the track. 4.5.2 Removing the panel cover (A/B): Remove each of the two M5 nuts (M1) [located on the inside of the panel] for each panel cover (A/B). -
Page 22: Assembly And Set Up
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G ASSEMBLY AND SET UP 4.6.1 Floor installation: free-standing or standing against a wall Transport the appliance on its pallet to directly in front of the desired point of installation. The installation connections that are sticking out of the floor should be as close as possible to the side of the transport pallet. -
Page 23: Wall Installation: Wall-Mounted
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G Adjust the height of the foot (FU) by rotating the bottom to the preferred appliance height. Determine and align the horizontal position with a spirit level. The foot can be adjusted from 150 to 200 mm. -
Page 24: Assembling Appliance Groups
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G According to the installation plans(see →6.2 Wall-mounted appliances) the wall anchoring holes must be marked on the wall in advance. Drill boreholes into the wall with a diameter of ø 18 mm and a minimum depth of 145 mm. Then the wall anchors provided are to be affixed using threaded bolts (W). -
Page 25: Gas Connection
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G GAS CONNECTION 4.8.1 General information and important notes Connecting the gas and laying any gas pipes at the customer's must only be done by an authorised specialist complying with the relevant local and national regulations. The following relevant regulations must be obeyed when installing, testing and adjusting the equipment: •... -
Page 26: Appliances Mounted On The Floor And Against A Wall
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G CAUTION The gas supply line must guarantee the necessary gas flow for the flawless operation of all appliances connected to the network. An insufficient gas supply will have a significant detrimental effect on the operation and safety of the connected appliances. -
Page 27: Sealing The Gas Pipes
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G 4.8.4 Sealing the gas pipes The screws on the gas lines must be sealed with suitable sealing material. Sealing material for gas supplying parts: • We recommend: Chesterton 800 GoldEnd sealing tape: for gas threaded screws or •... -
Page 28: Adjusting The Gas Flow Speed On Ignition
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G Permissible tolerances for gas pressure in mbars: Normal Minimum Maximum Type of gas pressure pressure pressure Natural gas (H) Natural gas L 28-30 Liquid gas Propane Butane 42.5 57.5 4.8.8 Adjusting the gas flow speed on ignition... -
Page 29: Electrical Connection
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G ELECTRICAL CONNECTION Each appliance comes with an appliance-specific wiring diagram. This contains the technical specifications (electrical rating, voltage, amperage etc.). Check and ensure that the electrical voltage corresponds to the voltage specified on the identification plate. -
Page 30: Connecting To A Potential Equalisation System
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G Power is taken from a ready-installed electric cable which protrudes 1.5 m from the floor or the wall The appliance’s terminal clamps are under the covering. The panel cover (A) must be removed to connect the appliance (→see 4.5 "ACCESS TO THE INSIDE OF THE APPLIANCE"). -
Page 31: Mixer Tap
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G 4.10 MIXER TAP (optional extra) The mixer tap is supplied loose and must be installed on the left-hand appliance panel. Thread the mixer tap pipes (9) and the stand pipe (4) through the pre-drilled hole on the left side of the panel cov- er(8). -
Page 32: Dual Casing
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G 4.11 DUAL CASING 4.11.1 Commissioning The dual casing is filled with filtered water at the factory as standard. Depending on the delivery date (concerning the central European winter months Nov-April) the dual casing is emptied in the factory and the demineralised water is supplied in a plastic canister to prevent damage to the heating system due to freezing. -
Page 33: Commissioning
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G COMMISSIONING PREPARATION The dual casing is filled with filtered water at the factory as standard. Exception: (→see 4.10.1 "Commissioning the dual casing") Carry out commissioning as per (→see 6. CHECK LIST: COMMISSIONING). Before first use the pan must be thoroughly cleaned with hot water containing a mild cleaning agent. -
Page 34: Check List: Commissioning
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G CHECK LIST: COMMISSIONING Inspection Checked Inspection Checked √ √ Check all gas, water and electrical connections and voltages. (→4.2 INSTALLATION PLANS) Set the time. (→see 8.2.2 Default settings) Check appliance functions for the electrical controls. -
Page 35: Check List: Maintenance
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G CHECK LIST: MAINTENANCE Troubleshooting Remedy Inspection Earth conductor connections Potential equalisation connections Check all electrical connections and contacts to If any contacts are loose, tighten the connections. terminals, coils, switches and connections to ensure that they are fully tightened. - Page 36 Note: This list is only a brief description. A detailed description can be found in the (→Service Manual). If an increased failure rate of safety-related parts is detected during a service please inform Electrolux Professional – Customer Services immediately. EN │ 01-2020 87.8021.01...
-
Page 37: Operating The Touch Control
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G OPERATING THE TOUCH CONTROL DESCRIPTION OF THE CONTROL PANEL Touch screen (touch-sensitive screen): All your cooking appliance's operating functions can be performed just by touching the relevant symbols and selecting the functions directly. -
Page 38: Manual
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G 8.2.3 Manual 8.2.4 Phase (→Select Manual from the main selection menu) (→Select a phase from the submenu) Manual: Define cooking process- Number of programmed cook- Programme and define multiple ing phases/ cycles cooking phases. -
Page 39: Selecting Cooking Time (Entering Time And Continuous Cooking)
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G 8.2.7 Selecting cooking time (entering time and continuous cooking) Target cooking time value Select hours/ minutes. Select target value for cook- ing time. Show/ hide numeric keypad. Switch to continuous cook- ing ∞... -
Page 40: Saving Programmes
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G 8.2.10 Additional settings: Saving programmes Programme name Select the name using the keyboard Select pop-up menu [Active box position right at the bottom, Picture on the left] . Saving programmes Confirm/ cancel programme saving. -
Page 41: Operation And Methods Of Your Cooking Appliance
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G OPERATION AND METHODS OF YOUR COOKING APPLIANCE 8.3.1 Cooking with target value power levels and cooking time The cooking appliance heats up to the required target temperature at full heating power. After the target cooking temperature has been reached the temperature is maintained for the pre-selected cooking time. -
Page 42: Operating Sub-Systems
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G OPERATING THE SUB-SYSTEMS APPLIANCE TILTING The tilting feature may only be used if the mixer tap swivel arm is in the correct position (facing the front), the lid is fully open and if there is nobody or any object in the tilting area under the appliance. -
Page 43: Drain Tap
Operating and installation instructions │ Pro Thermetic │ Tilting boiling pan PBOT-G DRAIN TAP (optional extra) The tilting boiling pan does not normally need a drain tap. The drain tap is only available as an option (only when ordered with the appliance, cannot be retrofitted) . The drain tap (EH) is used to meter the liquid to be drained from the vessel. 9.2.1 Draining the liquid / the food The drain tap (EH) is closed when the knob (H) is in the far left position. -
Page 44: Accessories
The automatic water filling device fills the pan with a preselected amount of water. Only available when ordered with the appliance. It cannot be retrofitted. ©2012 Electrolux Professional AG | Tech.Docu Services | CH - 6210 Sursee/Schweiz EN │ 01-2020...
