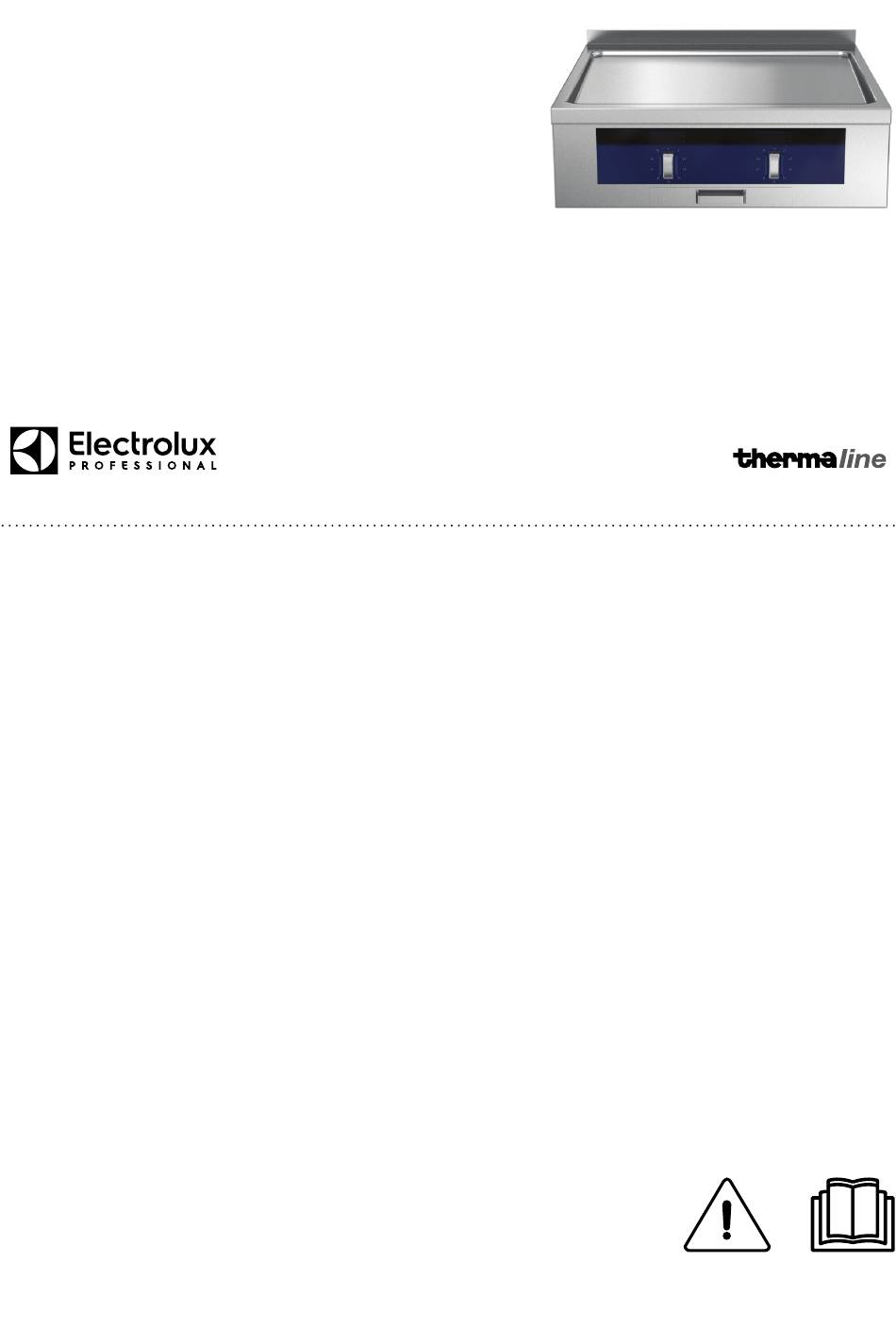

- Page 1 Electric frytop Installation and operating manual * 599A5BL00 - 82.8215.01- 2021.11 *Original instructions...
- Page 2 Foreword Read the following instructions, including the warranty terms before installing and using the appliance. Visit our website www.electroluxprofessional.com and open the Support section to: Register your product Get hints & tips of your product, service and repair information The installation, use and maintenance manual (hereinafter Manual) provides the user with information necessary for correct and safe use of the appliance.
-
Page 3: Table Of Contents
Contents A WARNING AND SAFETY INFORMATION....................5 General information ........................5 Personal protection equipment ......................6 General safety ..........................6 Protection devices installed on the appliance ..................7 Safety signs to be placed on the appliance or near its area ..............7 Reasonably foreseeable improper use .................... - Page 4 I.1.1 Heating zones ........................23 Features ........................... 24 Glass display ..........................24 Main switch (optional) ........................24 First use ........................... 24 Temperature control ........................24 Switching on-off ......................... 24 Stand-by mode .......................... 24 Handrail (optional) ........................24 APPLIANCE CLEANING ........................25 Care information.........................
-
Page 5: Awarning And Safety Information
WARNING AND SAFETY INFORMATION General information To ensure safe use of the appliance and a proper understanding of the manual it is necessary to be familiar with the terms and typographical conventions used in the documentation. The following symbols are used in the manual to indicate and identify the various types of hazards: WARNING Danger for the health and safety of operators. -
Page 6: Personal Protection Equipment
Personal protection equipment Summary table of the Personal Protection Equipment (PPE) to be used during the various stages of the appliance's service life. Stage Protective Safety Gloves Glasses Safety garments footwear helmet ● ○ ○ — — Transport — ● ●... -
Page 7: Protection Devices Installed On The Appliance
Disconnect the appliance from the power supply before carrying out any installation, assembly, cleaning or maintenance procedure. • Do not remove, tamper with or make illegible the marking and safety, danger and instruction signs and labels on the appliance. • The A-weighted emission sound pressure level does not exceed 70 dB(A). •... -
Page 8: Reasonably Foreseeable Improper Use
Danger Meaning caution hot surface danger of electrocution (shown on electrical parts with indication of voltage) Reasonably foreseeable improper use Improper use is any use different from that specified in this manual. During appliance operation, other types of work or activities deemed improper and that in general can involve risks for the safety of operators and damage to the appliance are not allowed. -
Page 9: Transport, Handling And Storage
Residual risk Description of hazardous situation Slipping or falling The operator can slip due to water, any liquid or dirt on the floor Burns/abrasions (e.g. heating The operator deliberately or unintentionally touches some components inside the appliance without elements, cold pan, cooling circuit plates and pipes) using protective gloves. -
Page 10: Electrical Connection
Preventive Maintenance In order to ensure the safety and performance of your equipment, it is recommended that service is undertaken by Electrolux Professional authorised engineers every 12 months, in accordance with Electrolux Professional Service Manuals. Please contact your local Electrolux Professional Service Centre for further details. -
Page 11: Parts And Accessories
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance in accordance with Electrolux Professional user and maintenance documentation made available in paper or electronic format. Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling agents to obtain optimal results and maintain product efficiency over time. - Page 12 • replacement of light bulbs, filters or any consumable parts; • any accessories and software not approved or specified by Electrolux Professional. Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
-
Page 13: Ctechnical Data
See the data plate located in the lower right corner to identify the appliance (see fig. below). Electrolux Professional AG - Allmendstrasse 28, CH - 6210 Sursee MW freq... -
Page 14: Dgeneral Information
The numerical values given on the appliance installation port personnel. diagrams refer to measurements in millimeters and/or inches. Manufacturer Electrolux Professional SpA or any other service centre authorised by Electrolux Intended use and restrictions Professional SpA. Operator for an operator who has been informed and This appliance is designed for cooking food. -
Page 15: Disposal Of Packing
operation and invalidates the original manufacturer The parts in wood and cardboard can be disposed of, warranty); respecting the current regulations in the country where the appliance is used. • operations carried out by non-specialised personnel; • unauthorized modifications or operations; D.10 Characteristics of personnel enabled to •... -
Page 16: Procedures For Handling Operations
E.2.1 Procedures for handling operations 1. Remove the packaging. Take care when unpacking and handling of the appliance Before lifting: to not cause any shocks on itself. • send all operators to a safe position and prevent persons 2. Keep all the documentation contained in the packaging. from entering the handling area;... -
Page 17: Accessing The Appliance's Internal Components
Accessing the appliance’s internal components Access to the main power supply INSTALLATION AND ASSEMBLY Introduction Appliance type WARNING Refer to “Warning and safety information“. To ensure correct operation of the appliance and maintain safe conditions during use, carefully follow the instructions given below in this section. -
Page 18: Distances / Walls
Distances / walls • on adjustable feet • on steel plinth The appliance must not be installed on flammable walls. If an • on concrete plinth appliance is set up next to or against temperature-sensitive furniture or similar, keep a safety-distance of approximately 50 3. -
Page 19: Fastening Multiple Appliances Together
Attaching the unit with screws Attaching the unit by welding The feet have metal plates which may be secured to the floor The metal plate underneath the feet must be welded to the using screws . floor with a continuous weld around the outer edge. Fastening multiple appliances together Remove lower panel A by undoing the screws. -
Page 20: Side Panels And Base Models
Side panels and base models All side panels are available in two different versions: • Side panel with an overhang of 12,5 mm for individual • Side cover without overhang to mount on covered sides. mounting on walls. Mount the faceplates onto the unit cladding when setting up. The faceplates suitable for your type of installation are available as optional accessories. -
Page 21: Fixing The Side Panels
Fixing the side panels G.9.1 Panels with a 12,5 mm overhang Attach connecting rails B and C with the supplied Bring the side panel D into position. screws A. Make sure marking on part B on the rail is Put the 5 hooks of the panel F into the slots E. pointing forwards. -
Page 22: Side Cover Without Overhang
G.9.2 Side cover without overhang The side cover should only be used as a closing off against the wall, against a niche and in between appliances (provided that these have the same dimensions). Standard cover has pre-cuts that you can adapt to the appliances according to the left/right side. Fit the 4 cage nuts A into the dedicated slots on the Attach connecting rails C and D with the supplied frame. -
Page 23: Helectrical Installation
ELECTRICAL INSTALLATION WARNING WARNING Refer to “Warning and safety If the power cable is damaged, it information“. must be replaced by the Cus- tomer Care Service or in any Mains connection case by specialised personnel, Each appliance has a specific wiring diagram. It contains the in order to prevent any risk. -
Page 24: Features
Features Temperature control 1. Splashback (optional) 2. Splash guard 3. Cooking surface 4. Glass display only for 800 mm or 900 mm deep appliances Temperature selection 80℃ – 280℃ 5. Controls Standby 6. Collecting drawer Glass display Switching on-off Appliances with a depth of 800 mm or 900 mm are equipped Switch on the appliance: with a glass display. -
Page 25: Jappliance Cleaning
APPLIANCE CLEANING WARNING damage or rupture of the passive layer, depending on the concentration and temperature. Refer to “Warning and safety Extraneous rust (iron particles), the formation of galvanic information“. elements and lack of oxygen could cause more damage. If the appliance is kept in an environment with corrosive CAUTION substances (e.g. -
Page 26: Drain And Overflow Openings
WARNING Empty and clean collecting drawers several times a day if necessary. Clean the drain daily with a brush (no metal The collecting trays can get hot. bristles). Always wear protective gloves 1. Pull out the tray until it stops. when you empty them. -
Page 27: Kmaintenance And Customer Service
MAINTENANCE AND CUSTOMER SERVICE WARNING Periods of non-use Refer to “Warning and safety If the appliance is not going to be used for some time, take the following precautions: information“. • close the water supply tap(s), if present; • disconnect the power supply or remove the plug from the Informations for maintenance power socket, if present;... -
Page 28: Mappliance Disposal
APPLIANCE DISPOSAL WARNING Depending on the model, the doors must be removed before dismantling the appliance. Refer to “Warning and safety information“. The symbol on the product indicates that this product should not be treated as domestic waste, but must be correctly disposed of in Procedure regarding appliance disposal order to prevent any negative consequences At the end of the product's life-cycle, make sure it is not... - Page 30 Electrolux Professional AG Allmendstrasse 28 CH - 6210 Sursee www.electroluxprofessional.com...
