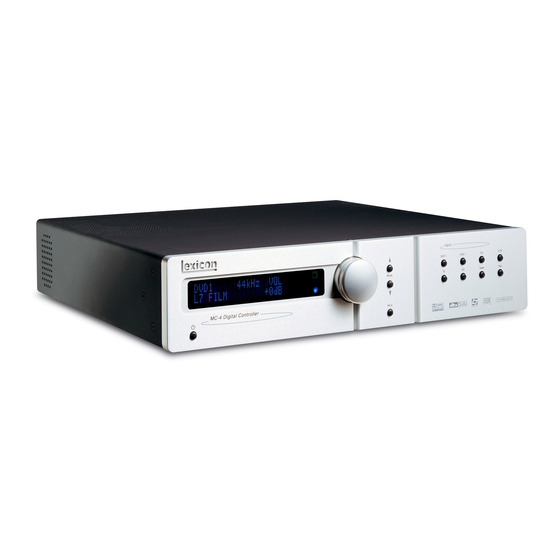

Lexicon MC-4 User Manual

Digital controller
Hide thumbs Also See for MC-4:
Table of Contents

Advertisement

Quick Links

See also: Manual
MC-4
Digital Controller
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lexicon MC-4

Summary of Contents for Lexicon MC-4

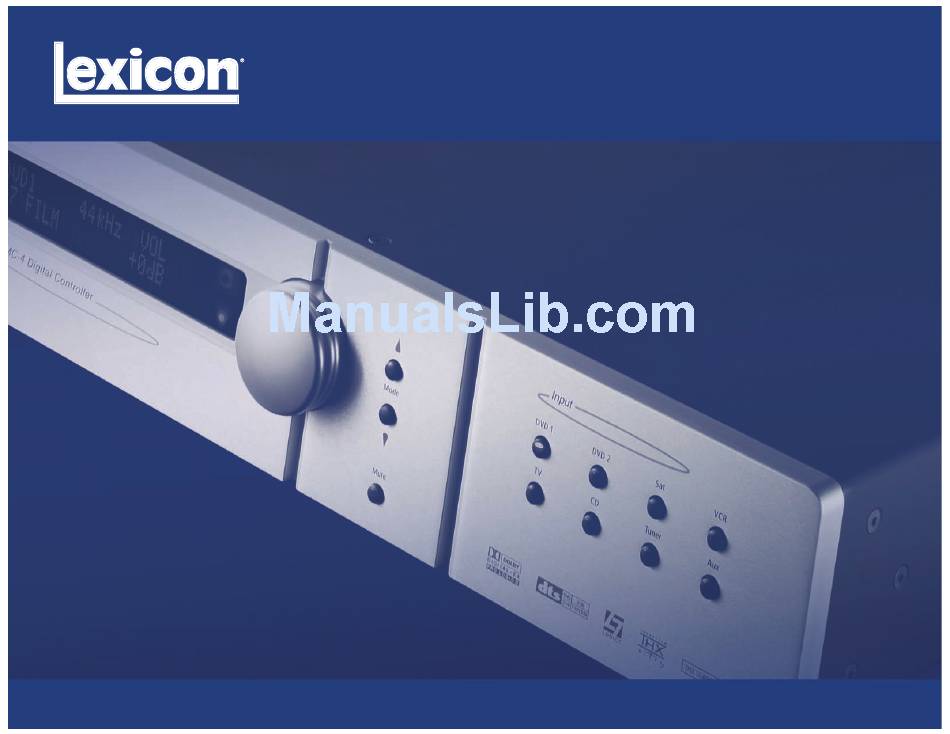

  • Page 1 MC-4 Digital Controller User Guide...

  • Page 2: Important Safety Instructions

    Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/television technician for help. This triangle, which appears on your component,...
  • Page 3 SACD is a trademark of Sony Electronics, Inc. SHARC is a trademark of ANALOG DEVICES, INC. “Lexicon,” “Logic 7” and the L7 logo are registered trademarks of Harman International Industries, Inc. U.S. Patent Nos. D454,553; D454,860; 5,796,844; 5,870,480 and other worldwide patents issued and pending.
  • Page 4 Introduction DOCUMENTATION CONVENTIONS This document contains general safety, installation and operation instructions for the MC-4 Digital Controller. It is important to read this user guide before attempting to use this product. Pay particular attention to safety instructions. The following symbols are used in this document: Appears on the component to indicate the presence of uninsulated, dangerous voltage inside the enclosure—...

  • Page 5: Front Panel Overview

    Section 1: Getting Started About the MC-4 ........1-2 Highlights •...
  • Page 6 Limited Warranty......Inside Back Cover PLII + PRO LOGIC • • MUSIC • FILM • 5.1 MUSIC • DIGI- MUSIC • • 2-CHAN Lexicon...
  • Page 7 MC-4 ENGLISH IMPORTANT SAFETY INSTRUCTIONS Save these instructions for later use. Follow all instructions and warnings marked on the component. Always use this component with the correct line voltage. Refer to the manufacturer’s operating instructions for power requirements. Be advised that different operating voltages may require the use of different line cords and/or attachment plugs.
  • Page 8 Le point d’exclamation dans un triangle quilat ral sert alerter l’utilisateur sur la pr sence de nombreuses instructions de maintenance dans le manuel fourni avec l’appareil. Lexicon FRANÇAIS À LA SÉCURITÉ...
  • Page 9 MC-4 ITALIANO IMPORTANTI NORME DI SICUREZZA Conservare le presenti norme per l’utilizzo futuro. Seguire sempre tutte le istruzioni e gli avvertimenti segnati sull’unità e nelle istruzioni operative. Utilizzare sempre la corretta tensione di alimentazione. Fare riferimento al manuale del costruttore per le caratteristiche di alimentazione. Tensioni di rete diverse necessitano anche di un diverso cavo con spine differenti.
  • Page 10 Tämä kolmio, joka esiintyy komponentissasi, varoittaa sinua eristämättömän vaarallisen jännitteen esiintymisestä yksikön sisällä. Tämä jännite saattaa olla riittävän korkea aiheuttamaan sähköiskuvaaran. Tämä kolmio, joka esiintyy komponentissasi, kertoo sinulle, että tässä tuotedokumentoinnissa esiintyy tärkeitä käyttö-ja ylläpito-ohjeita. Lexicon SUOMI...
  • Page 11 MC-4 NORSK VIKTIG INFORMASJON OM SIKKERHET Ta vare på denne veiledningen for senere bruk. Følg alle anvisningene og advarslene som er angitt på apparatet. Apparatet skal alltid anvendes med korrekt spenning. Produktbeskrivelsen inneholder spesifikasjoner for strømkrav. Vær oppmerksom på at det ved ulike driftsspenninger kan være nødvendig å...
  • Page 12 Retirando a embalagem e Inspecionando Depois de desembalar a unidade, guarde a embalagem caso precise enviar a unidade para manutenção. Inspecione cuidadosamente o módulo e a embalagem procurando sinais de dano. Avise à loja qualquer tipo de dano ou mal funcionamento do equipamento. Lexicon...

  • Page 13: Getting Started

    Getting Started About the MC-4 ....... 1-2 Highlights • Product Registration Installation Considerations .

  • Page 14: About The Mc

    Because the improvement it provides is clearly audible, Logic 7 is widely regarded as the finest available. In addition to Logic 7, the MC-4 offers Dolby Digital Surround EX™, Dolby Pro Logic® II, Dolby Pro Logic, DTS® 96/24, DTS Neo:6®, DTS-ES®, THX Ultra2™...
  • Page 15 Separate DSP engine for decoding compressed audio sources • Broadcast-quality video switching Built to professional standards, the MC-4 is designed to serve as the control center in any high-quality home entertainment system. Even the most demanding enthusiast will be impressed with its unique combination of power, performance, flexibility and technological sophistication.

  • Page 16: Installation Considerations

    • Install the MC-4 on a solid, flat, level surface such as a table or shelf. The MC-4 can also be installed in a standard 19-inch equipment rack using the optional rack-mount kit available from authorized Lexicon dealers.

  • Page 17: Remote Control Battery Installation

    The remote control requires two AA batteries that should be replaced as needed. Use Alkaline batteries, which last longer without leaking. When the batteries are low on power, the remote control enters a low-voltage condition that prevents it from operating the MC-4. When this occurs, follow the instructions below to replace the batteries.

  • Page 19: Table Of Contents

    Front Panel Overview ....... 2-2 Rear Panel Overview....... . 2-4 Remote Control Overview .

  • Page 20: Basic Operation

    FRONT PANEL OVERVIEW MC-4 Digital Controller The MC-4 front panel is shown above. The numbers in the front panel illustration correspond to the numbered items that begin below. 1. Standby Button Activates and deactivates standby mode when the MC-4 is powered on with the rear panel power switch.
  • Page 21 LED blinks when a remote control command is received. The red LED lights when the A/D converters are overloading. The blue LED lights when the MC-4 is powered on and activated—even if the FRONT PANEL DISPLAY menu STATUS parameter is ALWAYS OFF.
  • Page 22 (SUB) (RS) (SUB) (RS) The MC-4 front panel is shown above. The numbers in the front panel illustration cor- respond to the numbered items that begin below. 2. AC Input Connector Provides power to the MC-4 through the supplied power cord (3 wire, 10 amp, IEC 320).
  • Page 23 MC-4 88.2kHz and 96kHz), Dolby Digital and DTS(-ES) sources. These connectors are not compatible with MPEG (MP3) sources. 4. Analog Audio Input Connectors Provide analog audio input. Eight stereo RCA connectors labeled 1 through 8 are available. The connectors labeled 3, 4 and 5 and the connectors labeled 6, 7 and 8 can be configured as 5.1-channel connectors.
  • Page 24 IR receiver. • For optimal performance, position the remote control at a 30 degree angle no more than 17 feet (5m) from the MC-4. If the MC-4 is placed inside a glass cabinet, tinted glass will reduce the remote control range.

  • Page 25: Main Menu

    MC-4 Arrow Navigation Function(s) • When a menu is open, pressing the Menu opens a parameter drop-down menu or selects the highlighted parameter setting. • When no menus are open, pressing the Menu • When a menu is open, pressing the Menu Subsequent presses continue to close the current menu and open the previous menu until the MAIN MENU is closed.
  • Page 26 DISPLAY SETUP OFF, 1 to 60ms ON-SCREEN DISPLAY FRONT PANEL DISPLAY A/V SYNC DELAY A/V SYNC DELAY CUSTOM NAME EDIT CUSTOM NAME Lexicon...

  • Page 27: Command Bank Activation

    2 command bank. • The S1 and S2 buttons themselves do not send commands to the MC-4. When pressed and held, these buttons activate the associated command bank. To activate the Shift 1 or Shift 2 command bank: 1.
  • Page 28 Displays the two-line status Stat for 2 seconds. Activates an additional bank of commands that control the MC-4. See “Command Bank Shift 1 Activation” on page 2-9 for more information. Activates an additional bank of commands that control the MC-4. See “Command Bank Shift 2 Activation”...
  • Page 29 Shift 2 Menu Light Mute DVD1 DVD2 Tuner Music 2 CH MC-4 Digital Controller Button Default Scroll upward ( ) and downward ( ) through menu items. Closes the current menu. Opens the menu structure and selects the highlighted parameter.
  • Page 30 Shift 1 Shift 2 Menu Light Mute DVD1 DVD2 Tuner Music 2 CH MC-4 Digital Controller 2-12 Button Default Selects the DVD1 input. DVD1 Selects the DVD2 input. DVD2 Selects the Sat input. Selects the VCR input. Selects the TV input.
  • Page 31 Shift 1 Shift 2 Menu Light Mute DVD1 DVD2 Tuner Music 2 CH MC-4 Digital Controller Button Default Selects the Logic 7 film mode family. Selects the Dolby mode family. Selects the DTS(-ES) mode family. Selects the THX mode family.
  • Page 32 Pressing the Stat button displays the two-line status for 2 seconds. The two-line status also displays whenever the MC-4 detects a change in status. The ON-SCREEN DISPLAY menu STATUS parameter controls the length of time for which the two-line status displays in the 2-14 on-screen display.

  • Page 33: Ch Status

    MC-4 If the STATUS menu includes a second page, the PG1 indicator displays in the top-right corner of the on-screen display. While holding the S1 button, press and release the Stat button again to open the second page. If the STATUS menu does not include a second page, pressing and releasing the Stat button closes the menu.

  • Page 34: D Status

    3/3.1, 3/2.1 BIT RATE 754.5 to 1509.7kbps ES ENCODING DISCRETE, MATRIX, OFF WORD LENGTH 16 bits, 20 bits, 24 bits SAMPLE RATE 44.1kHz, 48kHz, 88.2kHz, 96kHz See “STATUS Menu Parameter Descriptions” on page 2-18 for detailed information about these parameters. Lexicon...
  • Page 35 MC-4 5.1a BYPASS STATUS • Provides information about 5.1-channel analog sources. Parameter Possible Settings INPUT the selected input MODE 5.1a BYPASS INPUT TYPE BYPASS See “STATUS Menu Parameter Descriptions” on page 2-18 for detailed information about these parameters. 2CH BYPASS STATUS •...

  • Page 36: Status Menu Parameter Descriptions

    Dolby Digital input sources reproduce dialog at 27 decibels below full-scale (–27dBFS). When the dialog normalization value of the incoming signal is higher or lower, the DIALOG OFFSET parameter indicates the amount of adjustment the MC-4 makes to normalize dialog to –27dBFS. ES ENCODING Indicates whether a DTS-ES-encoded source is detected.

  • Page 37: Status Menu Level Meters

    MC-4 INPUT Indicates the selected input (e.g., DVD1). INPUT TYPE Indicates the current input source. When the parameter setting is ANLG, a 2-channel analog audio source is present and the ADVANCED menu 2-CH ANLG BYP parameter is OFF. When the parameter setting is BYP , a 2-channel analog audio source is present and the 2-CH ANLG BYP parameter is ON.

  • Page 39: Table Of Contents

    SETUP..........3-2 INPUT SETUP .

  • Page 40: Setup

    See “VOLUME CONTROL SETUP” on page 3-51 for more information. TRIGGER SETUP TRIGGER Opens the TRIGGER SETUP menu, which can be used to config- ure the trigger output connector labeled 1. See “TRIGGER SETUP” on page 3-52 for more information. Lexicon...

  • Page 41: Input Setup

    MC-4 LOCK OPTIONS SETUP LOCK OPTIONS Opens the LOCK OPTIONS menu, which can be used to lock and unlock settings in the MODE ADJUST, AUDIO CONTROLS and SETUP menu branches. See “LOCK OPTIONS” on page 3-54 for more information. INPUT SETUP...
  • Page 42 NONE UP TO 8 CHARACTERS AUTO V BUTTON TO ADVANCE S-VIDEO-1 FILM FILM FILM arrow to advance to the next character space. Press arrow to return to the previous character space. arrow to close the EDIT INPUT NAME drop-down Lexicon...
  • Page 43 MC-4 MAIN MENU SETUP MODE ADJUST INPUTS INPUTS AUDIO CONTROLS SPEAKERS SETUP SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGER LOCK OPTIONS The custom input name appears on the on-screen and front panel displays. Both the custom and factory-default input names appear on the input selection menu that opens when the SETUP menu INPUTS option is selected.
  • Page 44 AUDIO CONTROLS SETUP SETUP The MC-4 has eight configurable inputs, each of which can be assigned to its eight digital audio, eight analog audio, five composite video, five S-video or three component video input connectors. The table below lists the INPUT SETUP menu parameters that can be used to assign audio and video input connectors.
  • Page 45 DVD1 DIGITAL IN Opens the DIGITAL IN menu, which assigns a digital audio input connector for the selected input. The MC-4 has eight configurable inputs, each of which can be assigned to any of its eight digital audio input connectors.
  • Page 46 DVD1 ANALOG IN Opens the ANALOG IN menu, which assigns an analog audio input connector for the selected input. The MC-4 has eight configurable inputs, each of which can be assigned to any of its eight analog audio input connectors.
  • Page 47 Provides automatic adjustment of 2-channel analog audio input levels. When ON, the MC-4 automatically monitors and optimizes input levels. When the input signal is too high, the MC-4 quickly decreases input levels to avoid overload. When the input signal is too low, the MC-4 slowly increases input levels to maximize signal- to-noise ratio and dynamic range.
  • Page 48 ANLG IN LVL MANUAL Provides manual adjustment of 2-channel analog audio input levels. When manual adjustments are made, the MC-4 automatically sets the ANLG IN LVL menu AUTO parameter to OFF and deactivates automatic input level adjustment. Manual input level adjustments are retained when the AUTO parameter ON.
  • Page 49 VIDEO IN Opens the VIDEO IN menu, which assigns a composite or S-video input connector for the selected input. The MC-4 has eight configurable inputs, each of which can be assigned to any of its five composite or five S-video input connectors.
  • Page 50 DVD1 COMPONENT IN Opens the COMPONENT menu, which assigns a component video input connector for the selected input. The MC-4 has eight configurable inputs, each of which can be assigned to any of its three component video input connectors. 3-12...

  • Page 51: Selecting Preferred Listening Modes

    • If the DVD1 input is selected and a 2-channel source is present, the MC-4 activates the L7 FILM listening mode. If a Dolby Digital source becomes present, the MC-4 automatically activates the 5.1 L7 FILM listening mode.
  • Page 52 2-channel source is present. When set to USE LAST, the MC-4 activates the listening mode that was activated the last time a 2-channel source was present.
  • Page 53 Dolby Digital source is present. When set to USE LAST, the MC-4 activates the listening mode that was activated the last time a Dolby Digital source was present.
  • Page 54 DTS(-ES) source is present. When set to USE LAST, the MC-4 activates the listening mode that was activated the last time a DTS(-ES) source was present.
  • Page 55 MC-4 CONFIGURING ADVANCED SETTINGS MAIN MENU SETUP MODE ADJUST INPUTS INPUTS AUDIO CONTROLS SPEAKERS SETUP SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGER LOCK OPTIONS ADVANCED SETUP INPUTS DVD1 ADVANCED Selecting the INPUT SETUP menu ADVANCED option opens the ADVANCED menu . The parameters on the left side of this menu are identical regardless of which input is selected.
  • Page 56 Some DVD and CD players output digital signals (data) when the player is paused or stopped or when the player is powered on and the disc drawer is empty. If this occurs, the MC-4 auto- matically selects the assigned digital audio input connector.
  • Page 57 MC-4 INPUT SELECT Parameter Settings The table below describes INPUT SELECT parameter settings. DIGITAL The MC-4 automatically sets the INPUT SELECT parameter to DIGITAL when no analog audio input connector is assigned. • The MC-4 sends the assigned digital audio input connector to the audio output connectors.
  • Page 58 When a 5.1-channel analog audio source is present, the MC-4 passes only (L) and (R) analog audio input signals to the audio output connectors labeled Front L/R. When set to OFF,...
  • Page 59 ADVANCED S-VIDEO 16:9 Controls the passage of anamorphic trigger signals present in some video sources. When set to AUTO, the MC-4 allows anamorphic video input signals to pass through the S-video switcher, enabling compatible display devices to automatically switch between anamorphic and non-anamorphic display modes.
  • Page 60 The S-VIDEO OSD (4:3) parameter is OFF. • An anamorphic video input signal is present. • A 16:9 display device (widescreen) is connected to an S-video output connector. Lexicon DVD1 ADVANCED INPUT SELECT DIGITAL 2-CH ANLG BYP S-VIDEO 16:9 AUTO...
  • Page 61 MC-4 MAIN MENU SETUP MODE ADJUST INPUTS INPUTS AUDIO CONTROLS SPEAKERS SETUP SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGER LOCK OPTIONS COMPONENT OSD SETUP INPUTS DVD1 ADVANCED COMPONENT OSD Controls the appearance of the on-screen display when the display device is connected to the component video output connector.

  • Page 62: Speaker Setup

    Selecting the SETUP menu SPEAKERS option opens the SPEAKER SETUP, which can be used to configure the audio output connectors for the desired speaker setup, set speaker distances and calibrate output levels. The MC-4 has eight audio output connectors labeled Front L/R, Center, Subwoofer, Side L/R and Rear L/R.
  • Page 63 MC-4 In general, low frequencies will be redirected from loudspeakers with the highest crossover points to loudspeakers with the lowest crossover points. Low-frequency signals lower than the lowest crossover point will be redirected to the subwoofer. If the lowest crossover point is FULL, low-frequency signals, excluding LFE information, will not be redirected to the subwoofer.
  • Page 64 Opens the FRONT L/R SPEAKERS menu, which can be used to select a crossover point for the audio output connectors labeled Front L/R. When set to FULL, the MC-4 sends a full-range audio signal to these connectors. Otherwise, the MC-4 activates a crossover point at the selected setting.
  • Page 65 Opens the CENTER SPEAKER menu, which can be used to select a crossover point for the audio output connector labeled Center. When set to FULL, the MC-4 sends a full-range audio signal to this connector. Otherwise, the MC-4 activates a crossover point at the selected setting.
  • Page 66 Opens the SIDE L/R SPEAKERS menu, which can be used to select a crossover point for the audio output connectors labeled Side L/R. When set to FULL, the MC-4 sends a full-range audio signal to these connectors. Otherwise, the MC-4 activates a crossover point at the selected setting.
  • Page 67 Opens the REAR L/R SPEAKERS menu, which can be used to select a crossover point for the audio output connectors labeled Rear L/R. When set to FULL, the MC-4 sends a full-range audio signal to these connectors. Otherwise, the MC-4 activates a crossover point at the selected setting.
  • Page 68 Opens the SUBWOOFER menu, which can be used to select a crossover point for the audio output connector labeled Subwoofer. When set to FULL, the MC-4 sends a full-range audio signal to this connector. Otherwise, the MC-4 activates a crossover point at the selected setting.
  • Page 69 MC-4 SETUP MAIN MENU INPUTS MODE ADJUST SPEAKERS SPEAKERS AUDIO CONTROLS SETUP REAR PANEL CONFIG SETUP DISPLAYS VOLUME CONTROLS TRIGGER LOCK OPTIONS The THX ULTRA2 SUB and BGC parameters are available on the CUSTOM and THX SETUP menus. When a parameter setting is adjusted on one menu, it is automatically adjusted on the other menu as well.
  • Page 70 When the remote control 7/5 button is used to toggle between 7- and 5-channel playback, • ASA processing is not available during 5-channel playback and • the MC-4 automatically switches between the THX ULTRA2 and THX or DTS THX ULTRA2 and DTS THX listening modes. Lexicon...
  • Page 71 When the THX SPEAKER SETUP menu opens, the audio output connectors are automatically configured for a THX speaker setup. The MC-4 ignores all CUSTOM SETUP menu parameter settings and applies a THX 80Hz crossover point with a 12dB per-octave filter to all output connectors, except the audio output connector labeled Subwoofer, which is assigned a 24dB per-octave filter.
  • Page 72 Opens the THX REAR SPEAKERS menu, which can be used to activate and deactivate the audio output connectors labeled Rear L/R. When set to THX 80Hz, the MC-4 activates these connectors and configures all audio output connectors for a 7.1-channel THX speaker setup.
  • Page 73 SPEAKER DISTANCES menu, which can be used to set the distance between the listening position and the loudspeakers connected to the audio output connectors. The MC-4 features a speaker distance control that allows distances to be entered for each loudspeaker.
  • Page 74 Defines the unit of measurement in which the MC-4 measures speaker distances. When set to FEET, the MC-4 measures speaker distances in feet. When set to METERS, the MC-4 measures speaker distances in meters. When the UNITS parameter setting is toggled, the MC-4 converts the current speaker distance to the closest available value in the new unit of measurement.

  • Page 75: Calibrating Output Levels

    MC-4 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SPEAKERS SETUP SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGER LOCK OPTIONS CALIBRATING OUTPUT LEVELS SETUP SPEAKERS LEVELS CALIBRATION Selecting the SPEAKER SETUP menu LEVELS CALIBRATION option opens the LEVELS CALIBRATION menu, which can be used to calibrate output levels for the audio output connectors.
  • Page 76 When the internal noise test is conducted, it is possible to select a SPEAKER LEVEL ADJUST menu parameter just as the MC-4 is about to automatically scroll to the next parameter, causing the MC-4 to send the calibration noise to both loudspeakers.
  • Page 77 The external noise test requires an external calibration source, such as an audio calibration disc. When the external noise test is conducted, the MC-4 activates a listening mode based on the input source that is present. The table in the next column indicates the listening mode that is acti- vated for each input source.
  • Page 78 –18.0dB to +12.0dB FRONT LEFT FRONT RIGHT –18.0dB to +12.0dB CENTER –18.0dB to +12.0dB SPEAKERS LEVELS CALIBRATION (TEST) SIDE LEFT –18.0dB to +12.0dB SPEAKERS LEVELS CALIBRATION (TEST) REAR LEFT –18.0dB to +12.0dB SPEAKERS LEVELS CALIBRATION (TEST) SUBWOOFER Lexicon SIDE RIGHT REAR RIGHT...
  • Page 79 The MC-4 is equipped with an internal limiter that prevents low- frequency output signals from exceeding designated levels. This is essential for Dolby Digital and DTS(-ES) input sources that produce low-frequency peaks at much higher levels than 2-channel sources.
  • Page 80 When ON, the MC-4 restricts output signals to the level specified with the BASS PEAK LIMITER menu LIMIT ADJ parameter. When OFF, the MC-4 does not restrict output levels, regardless of the LIMIT ADJ parameter setting.

  • Page 81: Rear Panel Config

    MC-4 REAR PANEL CONFIG SETUP REAR PANEL CONFIG Selecting the SETUP menu REAR PANEL CONFIG option opens the REAR PANEL CONFIG menu, which can be used to configure the analog audio input connectors as eight stereo connectors, one 5.1-channel and five stereo connectors or two 5.1-channel and two stereo connectors.
  • Page 82 The 5.1-channel analog audio input connector is sent to the analog audio output connectors as shown in the table below. Input Connector Output Connector Front L Front R Center (SUB) Subwoofer (LS) Side L and Rear L (RS) Side R and Rear R Lexicon...

  • Page 83: Display Setup

    MC-4 DISPLAY SETUP SETUP DISPLAYS Selecting the SETUP menu DISPLAYS option opens the DISPLAY SETUP menu, which can be used to customize the on-screen and front panel displays, restore audio/video synchronization and activate and create a custom unit name. MAIN MENU...
  • Page 84 SETUP DISPLAYS CUSTOM NAME Activates the custom unit name, which displays when the MC-4 is activated. When ON, the custom name scrolls across the on-screen and front panel displays when the MC-4 is activated. When OFF, the custom name does not display when the MC-4 is activated.
  • Page 85 When set to 2 SECONDS, the on-screen display appears for 2 seconds whenever the input source changes or the MC-4 receives a command. When ALWAYS OFF, the on-screen display remains off at all times. It will not display again until the ON-SCREEN DISPLAY menu STATUS parameter is set to ALWAYS ON or 2 SECONDS.
  • Page 86 DISPLAYS ON-SCREEN DISPLAY FORMAT Note: The FORMAT parameter affects the composite and S-video output connectors. It does not affect the component video output connector. SECAM ON-SCREEN DISPLAY STATUS 2 SECONDS NTSC POSITION FORMAT FORMAT NTSC NTSC BACKGROUND REMOTE STATE Lexicon...
  • Page 87 When ON, a command bank indicator appears in the top-right corner of the on-screen display to indicate the last command bank from which the MC-4 received a command. When OFF, no command bank indicator appears on the on-screen display.

  • Page 88: Front Panel Display Setup

    ON, the front panel display remains on at all times. When set to 2 SECONDS, the front panel display appears for 2 seconds whenever the input source changes or the MC-4 receives a command. When ALWAYS OFF, the front panel display remains off at all times.

  • Page 89: Volume Control Setup

    VOLUME CONTROLS POWER ON Sets the volume level that will be selected whenever the MC-4 is activated. When set to LAST LVL, the MC-4 will activate at the last volume level that was selected during the previous operating session. LAST LVL, –80 to +12dB...

  • Page 90: Trigger Setup

    The MC-4 rear panel includes two 12V DC trigger output connectors. The connector labeled PWR— the power trigger output connector—is not configurable. It is activated when the MC-4 is activated and deactivated when the MC-4 is deactivated. The connector labeled 1 can be configured for remote or program operation.
  • Page 91 MC-4 Program Operation Parameters SETUP TRIGGER (PROGRAM OPERATION PARAMETER) Configure the trigger output connector labeled 1 for program operation. All TRIGGER SETUP menu parameters—except the REMOTE ONLY parameter— are considered program operation parameters. These parameters can be used to associate the trigger output connector with multiple inputs and listening modes at the same time.

  • Page 92: Lock Options

    LOCKED, UNLOCKED SETUP SETUP LOCK OPTIONS Controls SETUP menu branch settings. When LOCKED, these settings cannot be adjusted. When UNLOCKED, these settings can be adjusted. LOCKED UNLOCKED UNLOCKED UNLOCKED LOCKED, UNLOCKED AUDIO CNTRL LOCKED, UNLOCKED SETUP Lexicon...
  • Page 93 AUDIO CONTROLS AUDIO CONTROLS ........4-2...

  • Page 94: Audio Controls

    Controls the amount of boost or cut applied to the audio output connectors labeled Front L/R and Center. The graph shown on the left of the next page illustrates the frequency response of TREBLE parameter settings. –6.0 to +6.0dB –6.0dB to +6.0dB BASS –6.0dB to +6.0dB TREBLE Lexicon...
  • Page 95 MC-4 BASS Parameter Settings +6.0 +5.5 +5.0 +4.5 +4.0 +3.5 +3.0 +2.5 +2.0 +1.5 +1.0 +0.5 +0.0 -0.5 -1.0 -1.5 -2.0 -2.5 -3.0 -3.5 -4.0 -4.5 -5.0 -5.5 -6.0 The BASS parameter controls the amount of low-frequency boost or cut applied to the audio output connectors labeled Front L/R, Center and Subwoofer.
  • Page 96 +0.0dB TILT EQ +0.0dB LOUDNESS LOUDNESS BALANCE <|> FADER <|> LOUDNESS Note: The graph on the next page displays LOUDNESS parameter settings between –30dB and 0dB in 1dB increments. The top-most line represents the curve at –30dB. Lexicon ON, OFF...
  • Page 97 MC-4 TILT EQ Parameter Settings +3.0 +2.8 +2.6 +2.4 +2.2 +2.0 +1.8 +1.6 +1.4 +1.2 +1.0 +0.8 +0.6 +0.4 +0.2 -0.0 -0.2 -0.4 -0.6 -0.8 -1.0 -1.2 -1.4 -1.6 -1.8 -2.0 -2.2 -2.4 -2.6 -2.8 -3.0 The TILT EQ parameter controls the amount of tilt equalization applied to the audio output connectors labeled Front L/R, Center and Subwoofer.
  • Page 98 +0.0dB TILT EQ +0.0dB LOUDNESS BALANCE <|> FADER FADER <|> <|> FADER Note: Pressing and holding the S1 button while pressing and releasing the FP button centers the BALANCE and FADER parameters. Lexicon <|> >F B< to <|> to >F...

  • Page 99: Mode Adjust

    MODE ADJUST........5-2 Listening Mode Activation .

  • Page 100: Listening Mode Activation

    LISTENING MODE ACTIVATION Listening modes are available for 2-channel, Dolby Digital, DTS(-ES) and analog input sources. The MC-4 allows listening mode selection for all sources. In some cases, the MC-4 automatically activates a listening mode in response to certain commands. For this reason, it is important to understand the three methods through which listening mode activation occurs.

  • Page 101: Mode And Buttons

    These parameters can be used to select a preferred listening mode for 2-channel, Dolby Digital, DTS(-ES) and 5.1a input sources. The MC-4 automatically activates the selected listening mode whenever a new input is selected or a new input source is present.
  • Page 102 MODE ADJUST FILM MODE ADJUST FILM • A proprietary Lexicon listening mode. • Designed for enhanced playback of 2-channel stereo or matrix-encoded film sources. • Derives seven channels from 2-channel input sources, as well as full-frequency stereo surround channels that realistically increase the perceived width, length and sense of envelopment of the listening space.
  • Page 103 MC-4 MUSIC MODE ADJUST MUSIC • A proprietary Lexicon listening mode. • Designed for playback of 2-channel stereo or matrix-encoded music sources. • Recommended for 2-channel music sources. Option/ Default Possible Parameter Setting Settings VOCAL ENHANCE +0.0dB +6.0dB, +3.0dB, +0.0dB...
  • Page 104 Appropriate for Dolby Surround-encoded film sources. Option/ Parameter OUTPUT LEVELS CUSTOM See “Listening Mode Menu Option & Parameter Descriptions” on page 5-29 for Possible detailed descriptions of these options and parameters. Settings ON, OFF — — %!PLII MOVIE PRO LOGIC listening mode, but uses Lexicon...
  • Page 105 MC-4 PLII MUSIC MODE ADJUST %!PLII MUSIC • Similar to the DOLBY PLII MOVIE listening mode. • Designed for playback of stereo music sources. Option/ Default Parameter Setting PANORAMA CTR WIDTH DIMENSION NEUTRAL SURROUND DLY 10ms OUTPUT LEVELS — —...
  • Page 106 Option/ Default Parameter Setting RE-EQUALIZER OUTPUT LEVELS — CUSTOM — See “Listening Mode Menu Option & Parameter Descriptions” on page 5-29 for detailed descriptions of these options and parameters. Lexicon Possible Settings ON, OFF — —...
  • Page 107 The DTS Neo:6 listening modes cannot be assigned as the preferred listening mode for 2-channel sources. However, when the 2-CH parameter is set to USE LAST, the MC-4 will automatically activate a DTS Neo:6 listening mode if a DTS Neo:6 listening mode was activated the last time a 2-channel source was present.
  • Page 108 Sends early reflections to the front, side and rear channels. • Unlike other room simulation listening modes, this mode uses a proprietary reverb algorithm. This algorithm is inherited from Lexicon professional products, which a majority of recording engineers rely on to add ambience to recordings. Option/ Default...
  • Page 109 • Unlike other room simulation listening modes, this mode uses a proprietary reverb algorithm. This algorithm is inherited from Lexicon professional products, which a majority of recording engineers rely on to add ambience to recordings. Option/ Default...
  • Page 110 PANORAMA • Designed for playback of stereo and matrix-encoded sources. • Uses proprietary Lexicon algorithms to move the stereo image outward from the front speakers, producing a wider stereo field with greater depth. • Depends on proper location of the listening position and front speakers.
  • Page 111 MC-4 LISTENER POS Parameter Settings Front Left Front Right L127 ..Center ..R127 Negative settings (–127 to -1) compen- sate for primary listening positions located to the left of the center between the front left and right speakers.
  • Page 112 Recommended for audio purists and comparison purposes with other listening modes. Option/ Parameter SUB LEVEL CUSTOM See “Listening Mode Menu Option & Parameter Descriptions” on page 5-29 for detailed descriptions of these options and parameters. Lexicon Default Possible Setting Settings +0dB OFF, –30dB to +12dB —...

  • Page 113: Mono Logic

    MODE ADJUST MONO LOGIC • Designed for playback of mono sources. • Uses proprietary Lexicon reverb algorithms to realistically expand mono sources to use all channels, dramatically increasing the perceived width and sense of envelopment of the listening space. Option/...
  • Page 114 MODE ADJUST FILM MODE ADJUST FILM • A proprietary Lexicon listening mode. • Designed for playback of 5.1-channel Dolby Digital-encoded film sources. • Derives seven channels from 5.1-channel input sources. When both side and rear speakers are present, the 5.1 L7 FILM lis- tening mode also increases the perceived length and sense of envelopment of the listening space.
  • Page 115 MC-4 MUSIC MODE ADJUST 5.1 L7 MUSIC • A proprietary Lexicon listening mode. • Based on the 5.1 L7 FILM listening mode, but specifically tailored for music sources. • Designed for playback of 5.1-channel Dolby Digital-encoded music sources. • Recommended for 5.1-channel Dolby Digital-encoded music sources.
  • Page 116 The THX ULTRA2 and THX SurEX listening modes cannot be activated unless side and rear speakers are present. Note: The MC-4 cannot automatically detect THX Surround EX encoding in non-flagged 5.1-channel Dolby Digital sources. A non-flagged source does not include information in the input signal that identifies THX Surround EX encoding.
  • Page 117 MC-4 MUSIC MODE ADJUST THXI MUSIC • Designed for playback of 5.1-channel Dolby Digital music sources. • The 5.1 THX MUSIC listening mode cannot be activated unless side and rear speakers are present. • ASA processing is applied to signals sent to the rear speakers.
  • Page 118 EX DECODING: OFF DOLBY DIGITAL 5-20 Note: The MC-4 cannot automatically detect Dolby Digital Surround EX encoding in non-flagged 5.1-channel Dolby Digital sources. A non-flagged source does not include information in the input signal that identifies Dolby Digital Surround EX encoding.
  • Page 119 See “Listening Mode Menu Option & Parameter Descriptions” on page 5-29 for OFF, –30dB to +12dB detailed descriptions of these options and parameters. — Note: When a 1.0 Dolby Digital input source is present, the MC-4 automatically activates the 5.1 MONO LOGIC listening mode. MODE ADJUST 5.1 MONO LOGIC Default Possible...
  • Page 120 Sends a mono signal to the center channel. Option/ Default Parameter Setting SUB LEVEL +0dB CUSTOM — See “Listening Mode Menu Option & Parameter Descriptions” on page 5-29 for detailed descriptions of these options and parameters. Lexicon Possible Settings OFF, –30dB to +12dB —...
  • Page 121 MC-4 DECODING The table below indicates the conditions in which DTS-ES decoding is engaged. • DTS-ES decoding is engaged when the ES DECODING parameter is set to ON or the ES DECODING parameter is set to AUTO and a 5.1-channel matrix-encoded or 6.1-channel discrete-encoded DTS-ES source is detected.
  • Page 122 MODE ADJUST FILM MODE ADJUST DTS-ES L7 FILM • A proprietary Lexicon listening mode. • Designed for playback of 5.1- and 6.1-channel DTS(-ES) film sources. • Uses an advanced matrix to derive seven channels from 5.1- and 6.1-channel DTS(-ES) sources. When both side and rear...
  • Page 123 MC-4 ULTRA2 & OR DTS-ES THX1 ULTRA2 MODE ADJUST • Designed for playback of 5.1-channel DTS, 5.1-channel matrix-encoded DTS-ES and 6.1-channel discrete-encoded DTS-ES film sources. • Listening mode name differs depending on the encoding present in the input source, the ES DECODING parameter setting and the speaker setup.
  • Page 124 See “Listening Mode Menu Option & Parameter Descriptions” on page 5-29 for detailed descriptions of these options and parameters. Note: The DTS THX MUSIC listening mode can only be activated with the front panel or remote control Mode buttons. Lexicon Possible Settings –10.0dB to +0.0dB...
  • Page 125 MC-4 MODE ADJUST DTS-ES • Designed for playback of 5.1- and 6.1-channel DTS(-ES) sources. • Decodes 5.1 matrix or 6.1 discrete channels from DTS(-ES) sources. The six main channels are full-frequency. The .1 channel, often referred to as LFE information, has a limited frequency range of 120Hz.
  • Page 126 • No parameters are available for the 2CH BYPASS listening mode. Note: Speaker crossover settings, speaker distances and audio (tone) controls are not available when the 2CH BYPASS listening mode is activated. Lexicon...
  • Page 127 DESCRIPTIONS 5 SPKR ENHANCE Simulates 7-channel playback in 5-channel speaker configurations. When set to ON, the MC-4 provides an increased sense of spaciousness and envelopment through the surround speakers. This enhancement is most noticeable when the surround speakers are positioned to the side of the primary listening position or when the primary listening position is located against the rear wall.
  • Page 128 Opens the CUSTOM menu, which can be used to compare cus- tom and factory-default versions of the selected listening mode and to restore the factory default version of the selected listening mode. –25dB to +5dB –127 to +127 AUTO, ON, OFF MIN, 1 to 6, MAX (Listening Mode) CUSTOM Lexicon...
  • Page 129 MC-4 CUSTOM VS PRESET MODE ADJUST (Listening Mode) CUSTOM Allows comparison listening to the custom and factory-default versions of the selected listening mode. When PRESET is selected, the listening mode is heard in its factory-default condition – as if all parameters had been restored to their factory-default settings.
  • Page 130 5.1-channel Dolby Digital source recorded with or without Surround EX is detected. 5-32 • The MC-4 cannot automatically detect Dolby Digital Surround EX encoding in non-flagged 5.1-channel Dolby Digital sources. A non-flagged source does not include infor- mation in the input signal that identifies Dolby Digital Surround EX encoding.
  • Page 131 MC-4 LFE MIX –20.0dB or –10.0dB to +0.0dB Controls the output level of LFE information – the .1 channel in a 5.1- or 6.1-channel input source – that is sent to the audio output labeled Subwoofer. Low frequencies from up to seven other chan-...
  • Page 132 Simulates high-frequency rolloffs that occur in movie theaters. When set to ON, the MC-4 applies a high-frequency filter. When set to OFF, the MC-4 does not apply a high-frequency filter. It is recommended that you set this parameter to ON for film sources,...
  • Page 133 MC-4 3. Press the Menu arrow to close the CUSTOM menu and return to the listening mode menu. Note: When the CUSTOM menu RESET MODE option is selected to restore the factory-default version of the selected listening mode, the corresponding TRIGGER SETUP menu listening mode parameter is automati- cally set to OFF.
  • Page 134 Subwoofer. SURR ROLLOFF Applies high-frequency attenuation control to the audio output connectors labeled Side L/R and Rear L/R. This filter is only applied to output signals generated by the MC-4. 5-36 SURROUND DLY ON, OFF Increases the perceived depth of the listening space by delaying the arrival time of signals from the side and rear speakers.
  • Page 135 MC-4 When the Shift 1 command bank is activated, pressing the remote control THX button while a 5.1-channel Dolby Digital input source is present activates the THX, THX ULTRA2 or THX SurEX listening mode. Note: Toggling the SURROUND EX parameter setting produces low-level clicks in the front speakers.
  • Page 137 Troubleshooting & Maintenance Troubleshooting..... . . 6-2 Routine Maintenance ....6-3 Restoring Factory-Default Settings.
  • Page 138 See page 3-6 for more informa- tion. 5. Make sure the MC-4 is receiving an audio signal. To do this, follow the instructions that begin on page 2-14 to open the STATUS menu for the current input source.
  • Page 139 COMPONENT IN (page 3-12) parameters to ensure the appropriate video connector is assigned to the selected input. RF interference is present in the audio or video. 1. Make sure the MC-4 is not positioned near unshielded TV or FM antennas, cable TV decoders and other RF-emitting devices.
  • Page 140 2. If the MC-4 is powered on, press the front panel Standby button or the remote control Off button to activate standby mode and deactivate the MC-4. If the MC-4 is in standby mode, proceed to step 3.
  • Page 141 Appendix Specifications ..........A-2 Declaration of Conformity .

  • Page 142: Specifications

    NTSC, PAL and SECAM Compatibility Active Switching Output Level 1.0V peak-to-peak Impedance 75Ω Input Return Loss >40dB Differential Gain <0.5% Differential Phase <0.5° Bandwidth >25MHz K Factor <0.3% Gain ±0.15dB >65dB Signal-to-Noise Ratio Frequency Response 10Hz to 10MHz + 0.1/–0.3dB Lexicon...
  • Page 143 • Weight: 17lbs (7.6kg) Rack Mounting Optional brackets are available for installation in a standard 19-inch equipment rack (2 rack units required for MC-4). • Operating Temperature: 0° to 35°C (32° to 95°F) Environment • Storage Temperature: –30° to 75°C (–22° to 167°F) •...
  • Page 144 Bedford, MA 01730-1413 USA The equipment identified here conforms to the Directive(s) and Standard(s) specified above. Type of Equipment: Digital Controller Model: Lexicon MC-4 Date: July 2004 Harman Specialty Group Vice President of Engineering 3 Oak Park Bedford, MA 01730-1413 USA...
  • Page 145 MC-4 MAIN MENU SETUP MODE ADJUST INPUTS AUDIO CONTROLS SPEAKERS SETUP SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGER LOCK OPTIONS INPUT SETUP REAR PANEL CONFIG DVD1 8 STEREO INPUTS DVD2 5 ST. & (1) 5.1 ANLG 2 ST. & (2) 5.1 ANLG...
  • Page 146 MUSIC ADVANCED AUX INPUT SETUP NAME COAX-3 DIGITAL IN OPTICAL-3 NONE ANALOG IN NONE AUTO ANLG IN LVL AUTO VIDEO IN COMPOSITE-2 NONE COMPONENT IN NONE L7 MUSIC 2-CH L7 MUSIC MUSIC MUSIC MUSIC DTS-ES DTS-ES L7 MUSIC ADVANCED Lexicon...
  • Page 147 MC-4 MAIN MENU SETUP MODE ADJUST INPUTS INPUTS AUDIO CONTROLS SPEAKERS SETUP SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGER LOCK OPTIONS DVD1 INPUT NAME DVD1 ANALOG IN EDIT INPUT NAME ANALOG-1 RESTORE DEFAULT NAME ANALOG-2 ANALOG-3 ANALOG-4 PRESS MENU V TO...
  • Page 148 THX 80Hz THX 80Hz 90Hz 90Hz 100Hz 100Hz 110Hz 110Hz 120Hz 120Hz NONE NONE Lexicon LEVELS CALIBRATION INTERNAL NOISE TEST EXTERNAL NOISE TEST BASS PEAK LIMITER continued on page A-9 CUSTOM SETUP FRONT L/R 40Hz CENTER 60Hz SIDE L/R 60Hz...
  • Page 149 MC-4 MAIN MENU SETUP MODE ADJUST INPUTS SPEAKERS AUDIO CONTROLS SPEAKERS SETUP SETUP REAR PANEL CONFIG DISPLAYS VOLUME CONTROLS TRIGGER LOCK OPTIONS MAIN MENU AUDIO CONTROLS MODE ADJUST BASS +0.0dB AUDIO CONTROLS AUDIO CONTROLS TREBLE +0.0dB SETUP TILT EQ +0.0dB...
  • Page 150 CENTER DEPTH SURR ROLLOFF 3.1kHz SPEECH DETECT OUTPUT LEVELS SIZE CUSTOM MID RT BASS RT PRE-DELAY MONO SURROUND ROLLOFF OUTPUT LEVELS EFFECT LVL CUSTOM OUTPUT LEVELS CUSTOM Lexicon +0dB 196ms 9.0kHz +3dB 1.72s 2.4kHz –2dB 1.56s 1.87s 24ms 2.4kHz –3dB...
  • Page 151 MC-4 CATHEDRAL CENTER DEPTH VOCAL ENHANCE +0.0dB SPEECH DETECT 5 SPKR ENHANCE SIZE BASS ENHANCE MID RT 3.72s RE-EQUALIZER BASS RT 4.47s REAR DLY OFFSET PRE-DELAY 23ms COMPRESSION ROLLOFF 3.1kHz LFE MIX EFFECT LVL –8dB OUTPUT LEVELS OUTPUT LEVELS CUSTOM...
  • Page 152 0UTPUT LEVELS CENTER +0dB SIDE L/R +0dB REAR L/R +0dB SUBWOOFER +0dB OFF, –30 to +12dB Lexicon PANORAMA PRE-DELAY OFF, 1 to 100ms RE-EQUALIZER REAR DLY OFFSET OFF, 1 to 30ms ROLLOFF 500Hz to 20.0kHz, OFF SIZE 4 to 20 or 30m...
  • Page 153 VOCAL ENHANCE 500Hz to 20.0kHz, OFF +6.0dB +3.0dB +0.0dB Activating the MC-4 while pressing and holding the front panel or remote control Mute button opens the FACTORY SETTINGS menu shown below. Refer to page 6-4 for more information. FACTORY SETTINGS...
  • Page 154 Appendix INSTALLATION WORKSHEET INPUT SETUP DVD1 NAME DIGITAL IN ANALOG IN ANLG IN LVL VIDEO IN COMPONENT IN 2-CH ADVANCED INPUT SELECT 2-CH ANLG BYP S-VIDEO 16:9 S-VIDEO 4:3 OSD COMPONENT OSD A-14 DVD2 TUNER Lexicon...
  • Page 155 MC-4 SPEAKER SETUP CUSTOM SETUP FRONT LEFT/RIGHT CENTER SIDE LEFT/RIGHT REAR LEFT/RIGHT SUBWOOFER THX ULTRA2 SUB UNITS CAL NOISE LIMITER LIMIT ADJ REAR PANEL CONFIG Circle One 8 STEREO INPUTS THX SETUP SPEAKER DISTANCES THX 80Hz THX 80Hz THX 80Hz...
  • Page 156 NEO:6 + THX dts(-ES) THX dts NEO:6 MUSIC dts THX MUSIC NIGHTCLUB dts(-ES) CONCERT HALL dts(-ES) 2-CHAN CHURCH 5.1a BYPASS CATHEDRAL 2CH BYPASS Lexicon LOCK OPTIONS SETTING SETUP AUDIO CNTRL MODES AUDIO CONTROLS SETTING BASS TREBLE TILT EQ LOUDNESS...

  • Page 157: About The Mc-4

    5.1a BYPASS STATUS menu, 2-17 7/5 button, 2-13 8 STEREO INPUTS setting, 3-43 A/V SYNC DELAY parameter, 3-45 about the MC-4, 1-2 to 1-3 AC input connector, 2-4 ACADEMY FILTER parameter, 5-29 activating listening modes, 1-4, 2-13, 3-13 to 3-16, 5-2 to 5-3 ADVANCED menu, 3-17 to 3-23 (ills.)
  • Page 158 Front L/R output connector, 2-5 FRONT L/R parameters, 3-26, 3-36, 3-40, 3-44 FRONT PANEL DISPLAY menu, 3-50 (ill.) front panel display, 2-2 front panel overview, 2-2 to 2-3 (ill.) FRONT STEERING parameter, 5-32 highlights, MC-4, 1-3 horizontal bar graphs, 2-8...

  • Page 159: Installation Considerations

    MC-4 INPUT BALANCE parameter, 5-32 input connectors 5.1-channel analog audio, 2-5, 3-43 to 3-44 analog audio (stereo), 2-5, 3-43 to 3-44 assigning, 3-6 to 3-12 component video, 2-5 composite video, 2-5 digital audio, 2-4 to 2-5 IR, 2-5 RCA, 2-5...
  • Page 160 2-6 overview, 2-6 to 2-14 (ills.) REMOTE ONLY setting, 3-52 remote operation (trigger), 2-10, 3-52 to 3-53 REMOTE STATE parameter, 2-9, 3-49 Lexicon (continued) RESET MODE option, 5-34 to 5-35 RESTORE DEFAULT NAME option, 3-5 restoring factory-default settings, 6-4...
  • Page 161 MC-4 (continued) specifications, A-2 to A-3 SPEECH DETECT parameter, 5-36 standby button LED, 2-2 standby button, 2-2, 2-4 standby mode, 2-2, 2-4, 2-10 Stat button, 2-10, 2-14, 2-15 STATUS menu parameters, 2-18 to 2-19 STATUS menu, 2-10, 2-14 to 2-19...

  • Page 163: Limited Warranty

    Sound Quality Value for price Durability Features Brandname Other: What are your three favorite magazines? What are your three favorite websites? What features would you like to see added to this product in the future? MC-4 Digital Controller | 10/04...

  • Page 164: Customer Support

    3 Oak Park Bedford, MA 01730-1413 USA 781-280-0300 781-280-0490 www.lexicon.com Customer Support Telephone: 781-280-0300 Sales Fax: 781-280-0495 Service Fax: 781-280-0499 Product Shipments 16 Progress Road Billerica, MA 01821-5730 USA Part No. 070-15838 | Rev 0 | 10/04...
