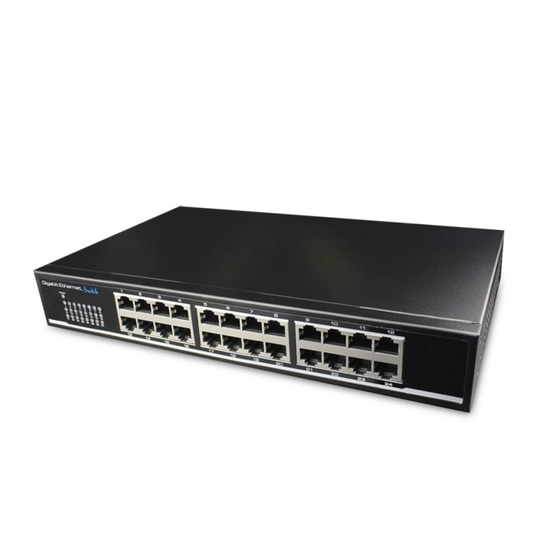

UTEPO SG16-M User Manual

5/8/16/24 Ports 10/100/1000M Unmanaged Switch
User Manual
Equipped with iron housing, the unmanaged Gigabit Ethernet switches are used for network monitoring &
building intercom project etc.. With features of large buffer cache, 6KV surge immunity, 8K ESD
immunity, it keeps the interfaces from the damage caused by indirect lightning and ensures the high-
speed forwarding and high reliability of video monitoring data.

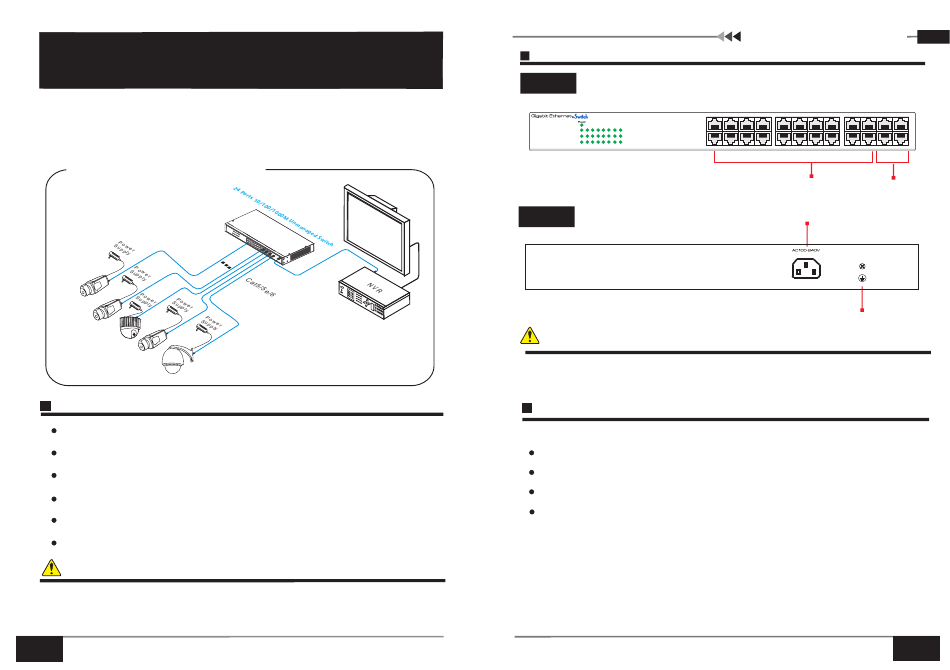

Application(24 Ports As Example)
IP Camera
IP Camera
ome
D Camera
IP Camera
PTZ
Camera

Feature

x
Provide 5/8/16/24 Gigabit ports
6KV surge immunity & 8KV ESD immunity
LED indicator on front panel.
Auto MDI/MDIX
Wall mounted, desktop, rack installation
Plug and play

Notice

It is recommended to use the standard Cat5e/6 network cable to reach
the optimal transmission distance.
1
Board Diagram
13.238.101.1734
V1.0
Front
Rear
L C
D
Device must be connected with lightning protection grounding; otherwise protection level
will be greatly reduced; please use above No.20 wire to connect the grounding terminal;

Installation Steps

Please check the following items before installation, if it is missing, please contact the dealer.
Please follow installation steps as below:
1) Turn off the power of all the related devices before the installation; otherwise the
device would be damaged;
2) Connect PoE cameras with 1~4 downlink ports of product by Ethernet cable;
3) Connect UPLINK port of product with NVR or PC by Ethernet cable;
1
SFG5-M/SG8-M/SG16-M/SG24-M 4口百兆以太网交换机
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
13
Notice
5/8/16/24 Ports 10/100/1000M Unmanaged Switch
Power Adaptor Cable /
User Manual
Mounting Kits (16/24 Ports)
10/100/1000M Unmanaged Switch 4口百兆以太网交换机
2 3 4 5 6 7 8 9 10 11 12
14 15 16 17 18 19 20 21 22 23 24
Uplink RJ45
Gigabit RJ45
AC100~240V
Grounding
1pc
1pc
1pc
1pair
2
