NexSens X2 Quick Start Manual

X2 - IRIDIUM DATA LOGGER
QUICK START GUIDE
IMPORTANT - BEFORE FIELD DEPLOYMENT: Completely configure new X2 systems with sensors and a web connec-
tion in a nearby work area. Operate the system for several hours and ensure correct sensor readings. Use this test run to
become familiar with the features and functions.

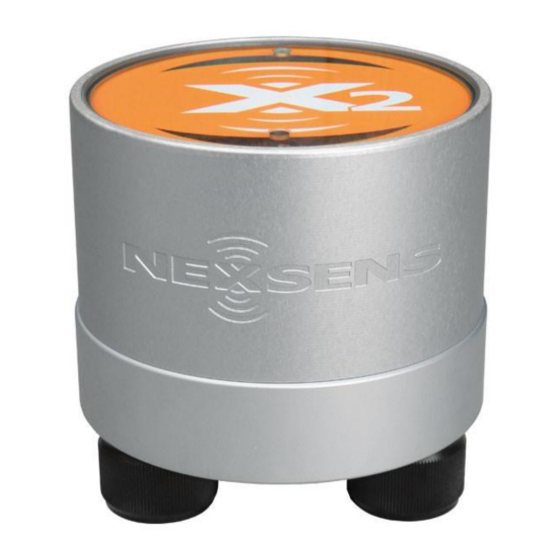

Figure 1: X2 Environmental Data Logger
Overview
The X2 with iridium telemetry includes an integrated
satellite modem. Three sensor ports provide industry
standard protocols including SDI-12, RS-232, and RS-485.
The center port offers direct communication (serial to
PC) and power input. Smartphones and tablets connect
via WiFi.
Data is accessed and stored on the WQData LIVE web
datacenter. An easy-to-use dashboard and built-in sensor
library automatically facilitate setup and configuration.
What's Included?
(1) X2 data logger
(1) X2 grounding kit
(3) Sensor port plugs, spare orings
(1) Power port plug, spare oring
(1) Oring grease
(1) Screwdriver with magnet tip
(1) Antenna with angle adapter
(1) Quick start guide
WQData LIVE Setup
To get started:
1
a. Go to WQDataLIVE.com
b. Create a new account or sign into an existing
account.
c. Choose or create the project that will contain
the data logger by selecting the Projects link
from the bottom right footer of the page.
d. Open the project and go to the ADMIN tab
located at the top of the project dashboard
and click Settings.
From there, choose the Project/Site pull down
2
menu and select the site for the new data logger.
a. If a site has not been created, select New Site.
Create and save the site before entering the
claim code.
Enter the claim code listed below into the space
3
provided under Assigned Devices.
Click Add Device.
4
a. The new device should be visible in the
Assigned Devices list.
Iridium Account Setup
If iridium service is not purchased through
1
NexSens, visit the article link below to setup an
Iridium Short-burst data (SBD) account.
a. nexsens.com/wqsetiracc
b. If iridium activation is purchased through
NexSens, skip to the Data Logger Setup.
If using a Gmail for the SBD account, visit the
2
article below to provide WQData LIVE access to
transmit commands through the account.
a. nexsens.com/wqsetgmir
