NexSens X3-SUB Quick Start Manual

X3-SUB IRIDIUM DATA LOGGER
QUICK START GUIDE - IRIDIUM (SATELLITE) TELEMETRY
IMPORTANT - BEFORE FIELD DEPLOYMENT: Completely configure new X3 systems with sensors and a telemetry con-
nection in a nearby work area. Operate the system for several hours and verify correct sensor readings. Use this test run
to become familiar with the system's features and functions, setting the stage for a successful deployment.

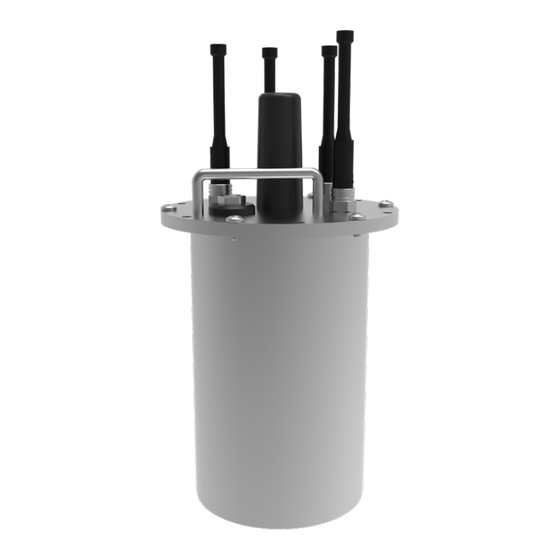

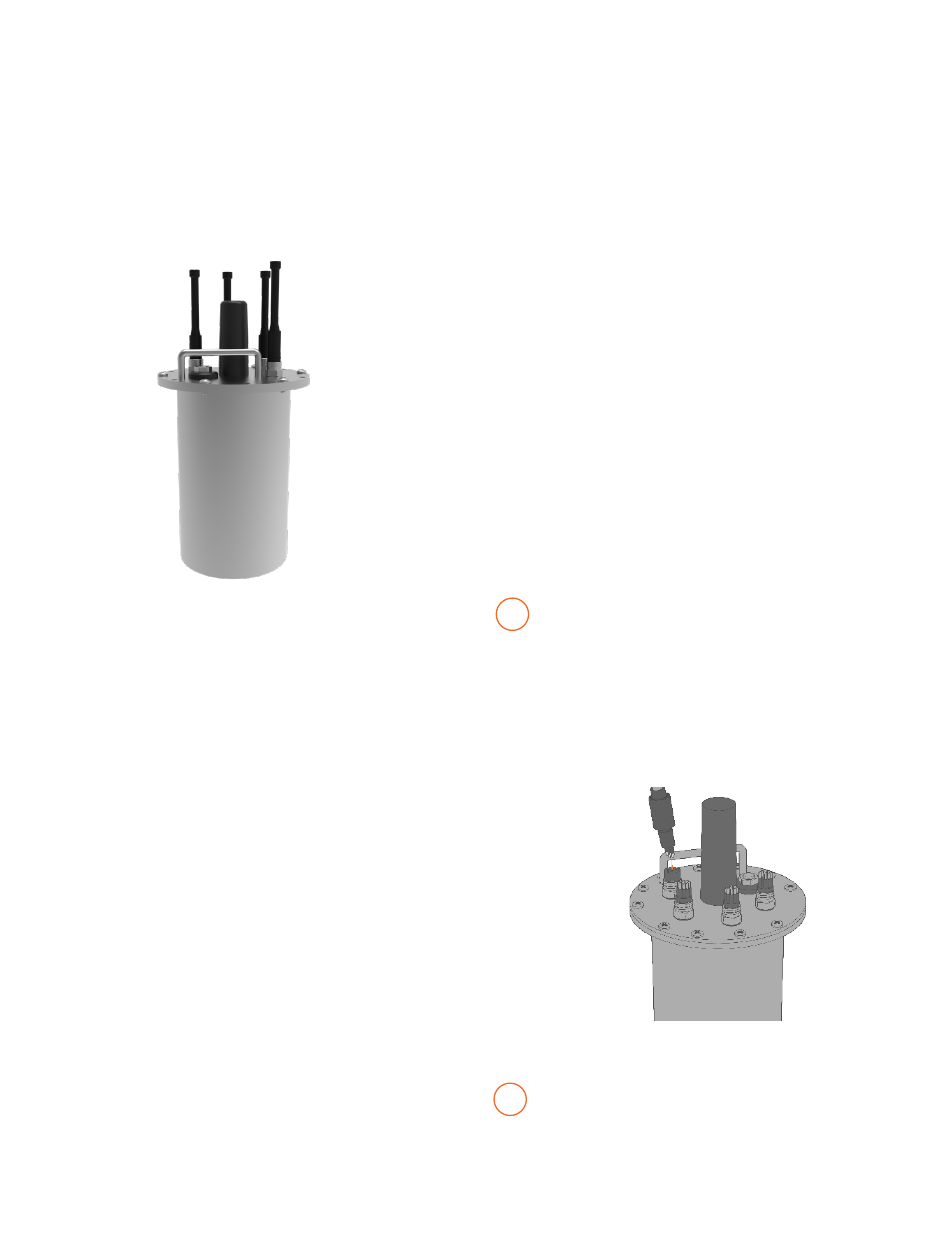

Figure 1: X3-SUB Submersible Data Logger
Overview
The X3-SUB Submersible Data Logger with Iridium
Telemetry includes an integrated modem and
external antenna. Three sensor ports provide industry-
standard protocols including SDI-12, RS-232, and RS-
485. The POWER/COM MCIL-6-FS port offers direct
communication (serial to PC) and power input. All
connections are made using MCIL/MCBH wet-mate
connectors. The X3-SUB is powered by an internal SLA
battery, alkaline battery pack, or external 12 VDC power.
Users can configure the X3-SUB for deployment using
a USB adapter and the CONNECT software. Data is
accessed and stored on the WQData LIVE web data
center. An easy-to-use dashboard and built-in sensor
library automatically facilitate setup and configuration.
What's Included
• (1) X3-SUB Submersible Data Logger
• (1) Pre-installed iridium antenna
• (3) Sensor port plugs
• (1) Power port plug
• (3) 11" cable ties
• (1) Quick Start Guide
• (1) Jumper plug (Alkaline version)
Note: Applications scientists and engineers at
NexSens will pre-program data loggers based on user
specifications. In many instances, the system will be
ready for "plug-and-play" and will not require the
subsequent Data Logger Setup steps below to be
performed. If a system is pre-programmed, a System
Integration Guide will be included with the order,
providing an overview of the next steps to get the system
up and running.
Review the System Integration Guide and skip to the
WQData LIVE Setup section. Note: It is recommended to
download the CONNECT software (step 1) for future use.
Data Logger Setup
Download the CONNECT software and establish a
1
connection with the logger via the direct connect
USB cable (MCIL6MP-USB-DC).
a. nexsens.com/connst
b. The POWER/COM 6-pin port on the X3-SUB is for
providing power and communication through the
CONNECT software.
Figure 2: POWER/COM power and communication port.
Review the sensor integration guides on the
2
NexSens knowledge base to prepare the sensor(s)
for programming.
a. nexsens.com/sensorskb
b. If a guide is unavailable, follow the links in step 3 to
determine if a script for the sensor is available or if a
new script must be created.
