X2 Data Logger – Quick Start Guide

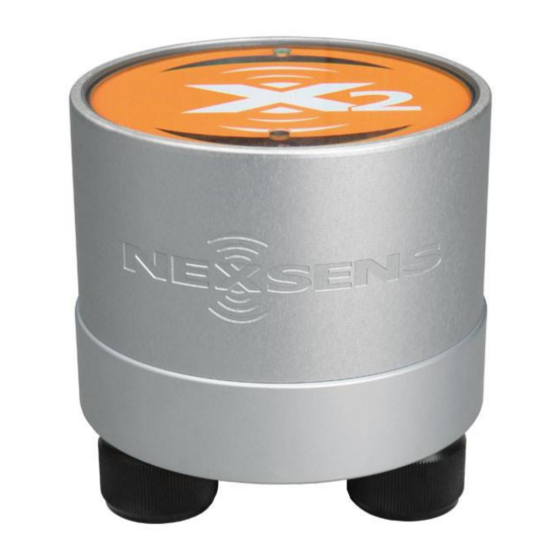

The NexSens X2 Environmental Data Logger offers the latest in real-time monitoring technology
with wireless communication, large plug-and-play sensor library, and ultra-low power
consumption. The unit includes Integral Wi-Fi and smartphone connectivity with options for
radio, cellular & satellite options. WQData LIVE web datacenter provides instant access on any
web browser.
What's Included:
(1) X2 environmental data logger
•
(3) Sensor port plugs
•
(1) Power port plug
•
(1) Magnetic screwdriver
•
(1) Quick start guide
•
(1) Wireless antenna (telemetry units only)
•

Advertisement

loading
Need help?

Need help?

Do you have a question about the X2 and is the answer not in the manual?

Questions and answers

Related Manuals for NexSens X2

Summary of Contents for NexSens X2

  • Page 1 X2 Data Logger – Quick Start Guide The NexSens X2 Environmental Data Logger offers the latest in real-time monitoring technology with wireless communication, large plug-and-play sensor library, and ultra-low power consumption. The unit includes Integral Wi-Fi and smartphone connectivity with options for radio, cellular &...
  • Page 2 X2-R-DG X2 environmental data logger with 900 MHz radio telemetry X2-RC-DG-VZ4G X2 environmental data logger with 900 MHz radio to Verizon 4G LTE cellular telemetry X2-RC-DG-AT4G X2 environmental data logger with 900 MHz radio to AT&T 4G LTE cellular telemetry...
  • Page 3 Verizon cellular data service with 25 MB monthly allowance & static IP address, priced per month VZ-25MB-Y Verizon cellular data service with 25 MB monthly allowance & static IP address, priced per year X2 pole and wall mount kit, 1.5" to 2" diameter MAST 2" NPT threaded aluminum pipe assembly for hardware mounting, 24" length...
  • Page 4 This guide assume cellular communication. If you are setting up a different method of data transmission see one of the following: X2 direct connect • X2 Iridium satellite connect • X2 radio connect •...
  • Page 5 Attaching the X2 to a mast For testing purposes, the equipment can be setup on a bench or installed on a NexSens MAST or equivalent 2” NPT pipe using the PM2 pole/wall mount kit. Mount the X2 Data Logger. Attach the bracket to a pole using the included U-Bolt, flat washers, lock washers, and nuts.
  • Page 6 Attaching the SP6 to a mast The SP6 Solar Power Pack includes a battery, solar panel and charge regulator and provides 12VDC power. It is a common choice to power most X2 based measurement systems. Mount the SP6 Data Logger.
  • Page 7 X2 Pre-deployment Testing Attaching the antenna, power and sensors to the X2 Place the X2 in an area with strong cellular coverage and connect the antenna. Remove the center power plug and required outer port plugs (1 for each sensor to connect)
  • Page 8 X2 Pre-deployment Testing Connecting to WQData Live The X2 sends data to the cloud where it can be viewed and processed. Create a new account or sign into an existing account and enter the Claim Code found on the serial label to access the device’s data...
  • Page 9 On power-up, wait up to 60 seconds for the blue cellular status LED to turn on Note: If the blue LED repeatedly blinks once, cell coverage is low. Move the X2 to a location with better cell coverage and cycle power...
