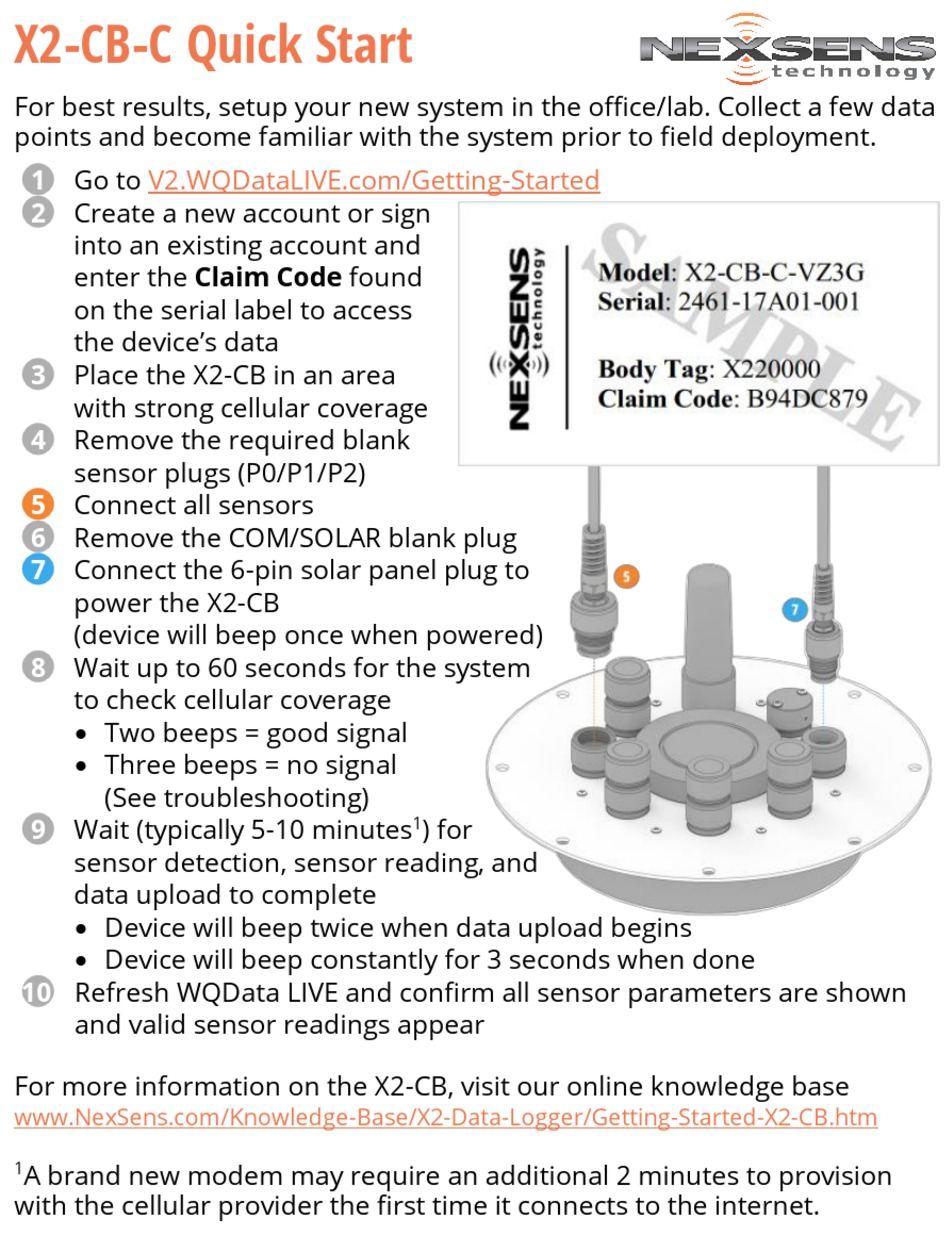

NexSens X2-CB-C Quick Start

X2-CB-C Quick Start
For best results, setup your new system in the office/lab. Collect a few data
points and become familiar with the system prior to field deployment.
1 Go to V2.WQDataLIVE.com/Getting-Started
2 Create a new account or sign
into an existing account and
enter the Claim Code found
on the serial label to access
the device's data
3 Place the X2-CB in an area
with strong cellular coverage
4 Remove the required blank
sensor plugs (P0/P1/P2)
5 Connect all sensors
6 Remove the COM/SOLAR blank plug
7 Connect the 6-pin solar panel plug to
power the X2-CB
(device will beep once when powered)
8 Wait up to 60 seconds for the system
to check cellular coverage
 Two beeps = good signal
 Three beeps = no signal
(See troubleshooting)
9 Wait (typically 5-10 minutes
sensor detection, sensor reading, and
data upload to complete
 Device will beep twice when data upload begins
 Device will beep constantly for 3 seconds when done
10 Refresh WQData LIVE and confirm all sensor parameters are shown
and valid sensor readings appear
For more information on the X2-CB, visit our online knowledge base
www.NexSens.com/Knowledge-Base/X2-Data-Logger/Getting-Started-X2-CB.htm
A brand new modem may require an additional 2 minutes to provision
1
with the cellular provider the first time it connects to the internet.
) for
1
Serial Label
