NexSens X Series Installation Manual

X-SERIES LOGGER GROUNDING KIT
INSTALLATION GUIDE

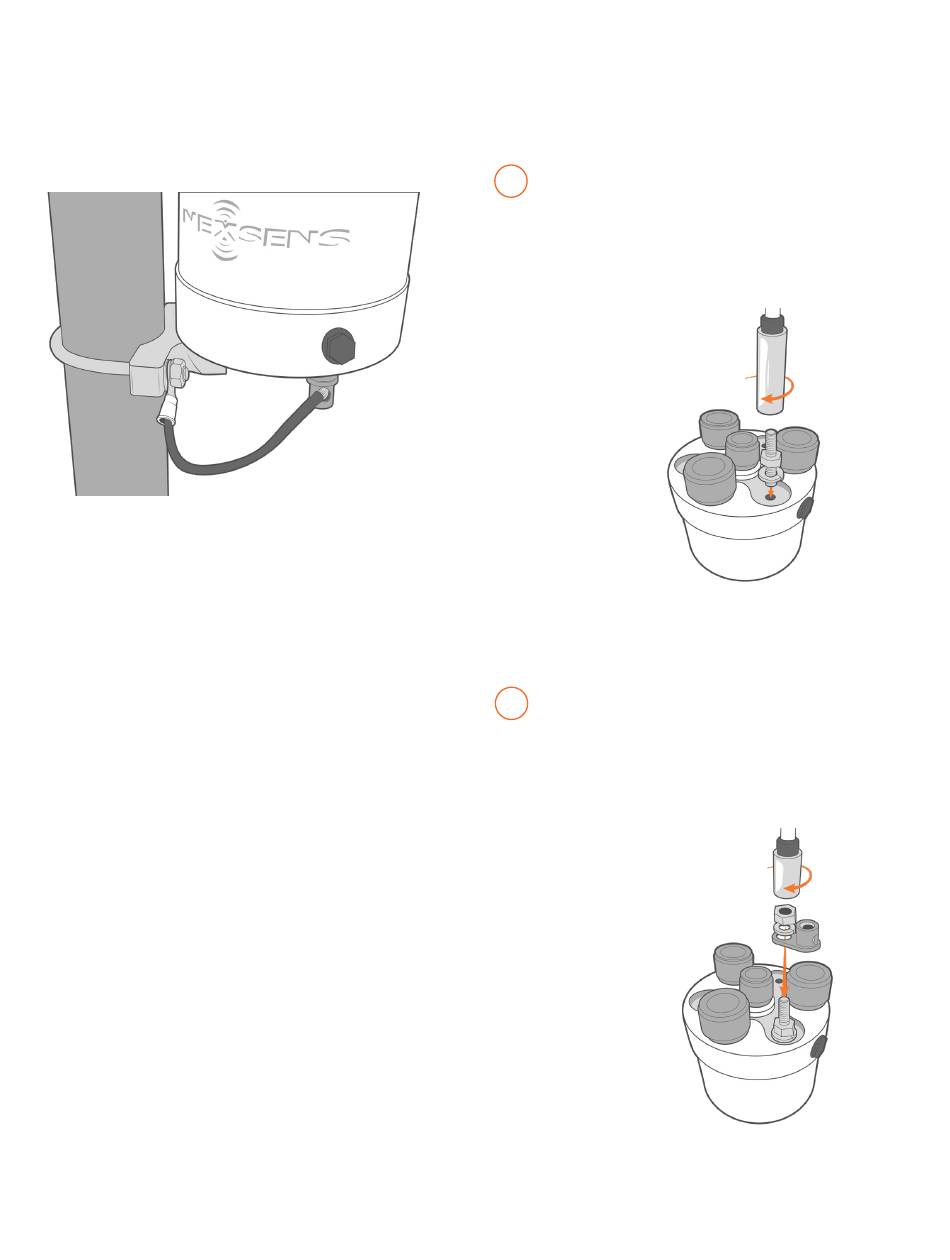

Figure 1: X-Series Logger Grounding Kit
Overview
Grounding a data logger is critically important to ensure
measurement accuracy and prevent damage to a data
logging system. Damage can either occur acutely or
manifested through intermittent hardware problems
that are difficult to diagnose and can result in an
eventual failure.
While lightning strikes are an obvious source of power
surges that can damage system components, other
less commonly thought of hazards include nearby
machinery, other electrical systems and electrostatic
discharge (ESD).
The X-Series logger grounding kit creates a ground path
from the logger to the PM2 mounting accessory to the
2" NPT galvanized or aluminum pipe used for mounting
in the field. To establish a proper ground the mounting
pipe must be buried in the ground or connected to an
earth ground.
What's Included
• (1) 10 AWG copper wire w/ ring terminals
• (1) 3/8" Split lock washer
• (1) 3/8" Flat washer
• (1) 3/8-16 x 1/2" Hex head cap screw
Place the large included lock-washer over the
1
larger diameter end of the threaded adapter.
a. Tighten the adapter into any of the available
(3) threaded holes on the logger using a 1/2"
socket or hex driver.
Figure 2: Insert the adapter into one of the threaded
holes on the logger.
Position the grounding lug, followed by the small
2
lock-washer and nut on top of the threaded
adapter.
a. Tighten down the nut using a 7/16" socket or
hex driver.
Figure 3: Tighten down the grounding lug.
