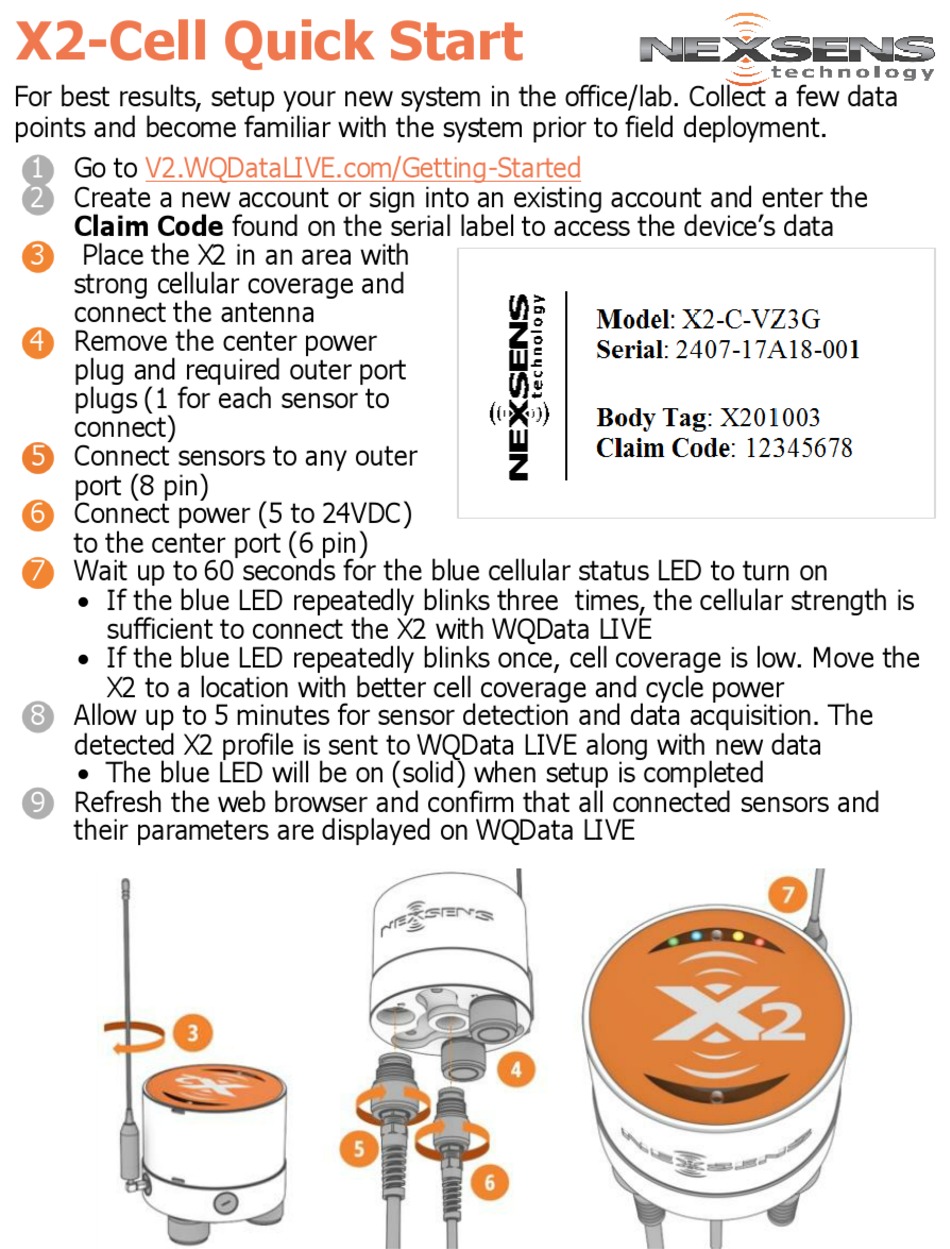

NexSens X2-Cell Quick Start

X2-Cell Quick Start

For best results, setup your new system in the office/lab. Collect a few data
points and become familiar with the system prior to field deployment.
1 Go to V2.WQDataLIVE.com/Getting-Started
2 Create a new account or sign into an existing account and enter the
Claim Code found on the serial label to access the device's data
3 Place the X2 in an area with
strong cellular coverage and
connect the antenna
4 Remove the center power
plug and required outer port
plugs (1 for each sensor to
connect)
5 Connect sensors to any outer
port (8 pin)
6 Connect power (5 to 24VDC)
to the center port (6 pin)
7 Wait up to 60 seconds for the blue cellular status LED to turn on
 If the blue LED repeatedly blinks three times, the cellular strength is
sufficient to connect the X2 with WQData LIVE
 If the blue LED repeatedly blinks once, cell coverage is low. Move the
X2 to a location with better cell coverage and cycle power
8 Allow up to 5 minutes for sensor detection and data acquisition. The
detected X2 profile is sent to WQData LIVE along with new data
 The blue LED will be on (solid) when setup is completed
9 Refresh the web browser and confirm that all connected sensors and
their parameters are displayed on WQData LIVE
Serial Label
