Electrical Box - Daikin ARKC18RV2S Service Manual

Electrical Box

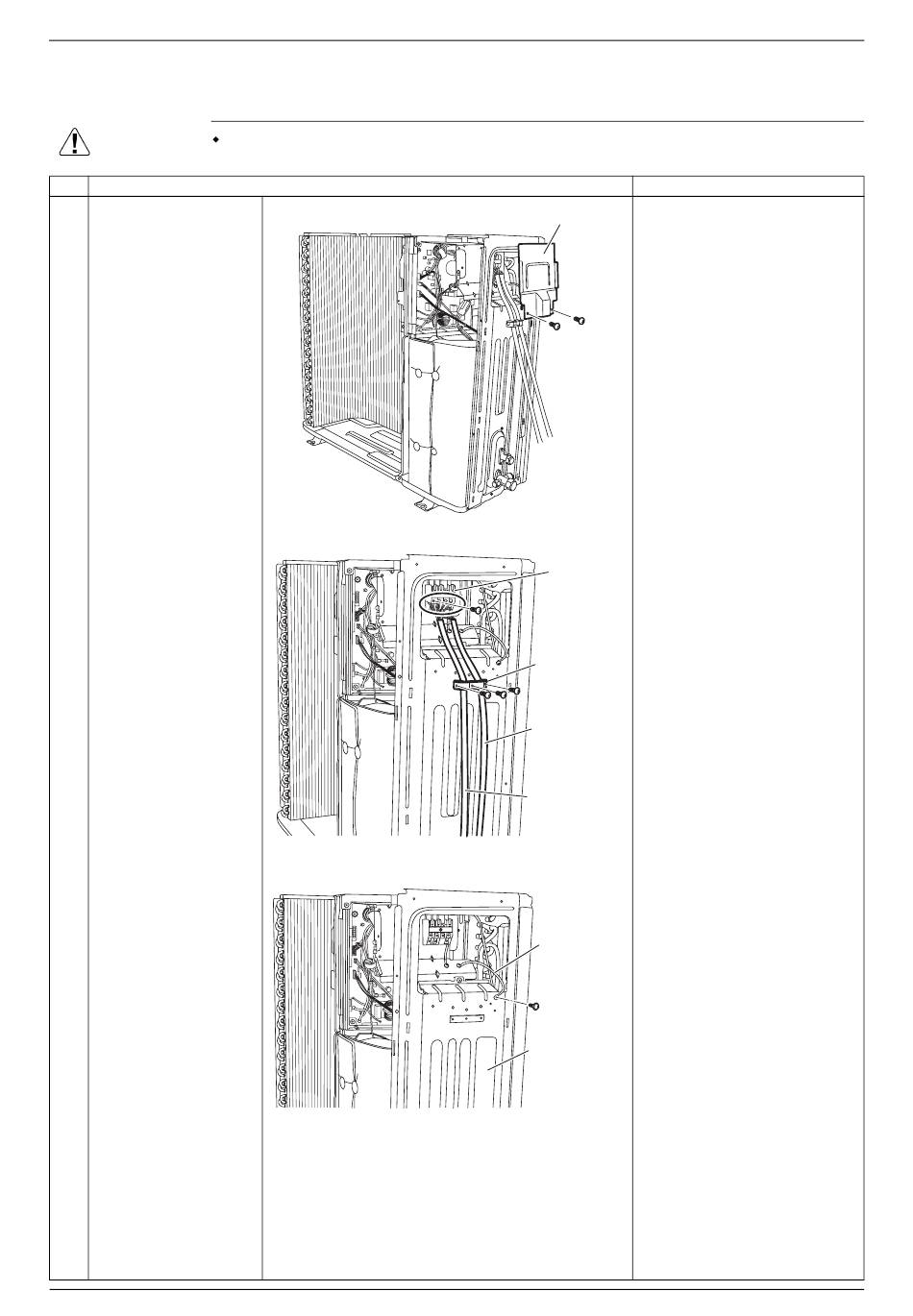

3. Electrical Box
Warning
Step
1 Remove the 2 screws
and remove the side
shield plate.
2 Remove the 3 screws
and remove the wire
fixture.
3 Remove the 7 screws
on the terminal board
and disconnect the
connecting wire and
power supply wire.
4 Remove the earth /
ground screw on the
right side panel.
6
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Side shield plate
(R23352)
Terminal
board
Wire fixture
Power supply
wire
Connecting wire
(R20318)
Earth / ground
wire
Right side panel
(R20670)
Si001413EB
Points
Removal Procedure
