Daikin ARKC18RV2S Service Manual page 11

Si001413EB
Step
12 Disconnect the relay
connector for
compressor.
13 Open the sound blanket
(top upper) and detach
the discharge pipe
thermistor.
14 Remove the 2 screws
and remove the
electrical box.

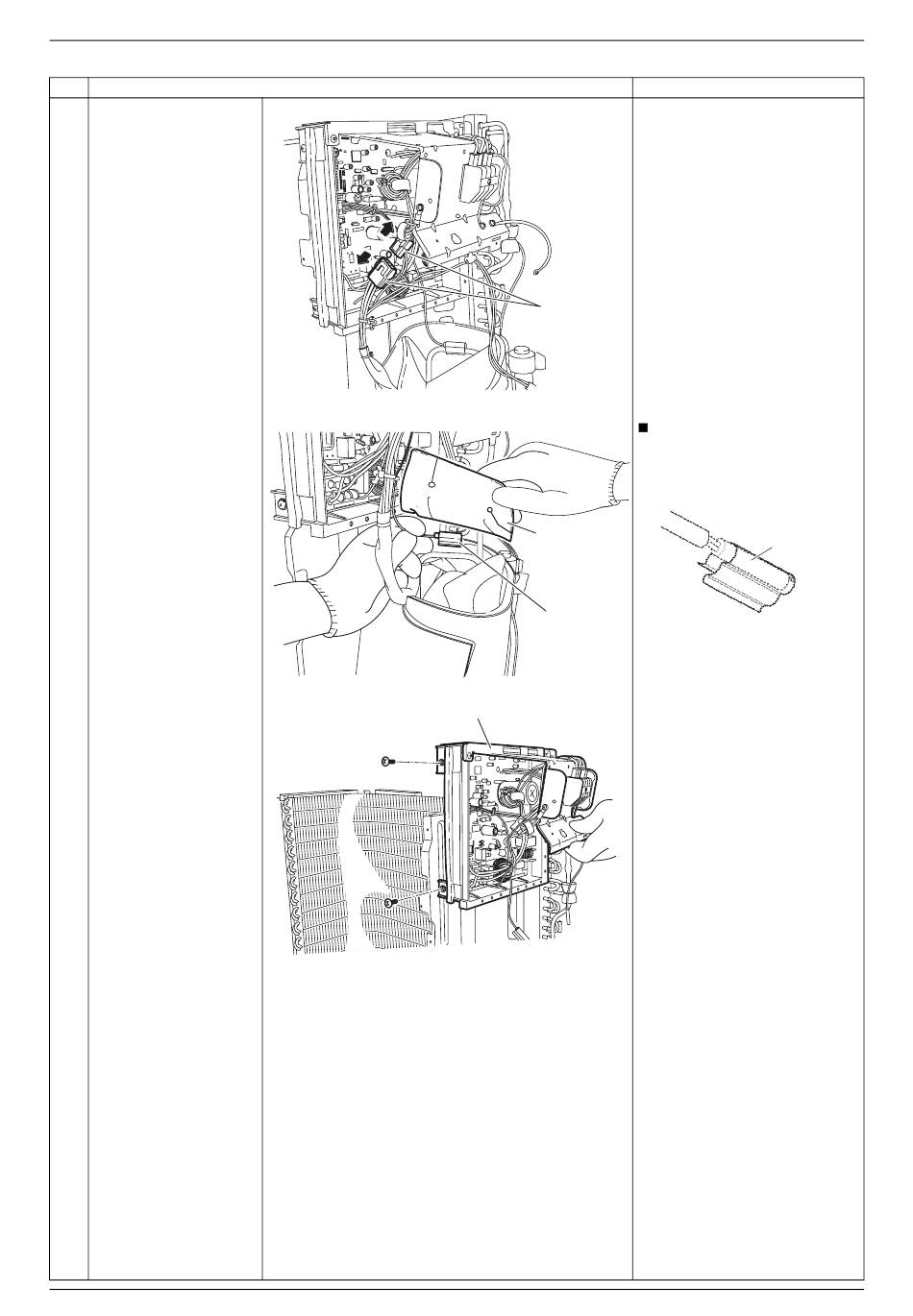

Removal Procedure
Procedure
Electrical box
Relay
connector
(R20652)
Be careful not to lose the
fixture for the thermistor.
Sound blanket
(top upper)
Discharge pipe
thermistor
(R20546)
(R20547)
Electrical Box
Points
Fixture
(R20665)
9
